24.5 Inch Stretched Bar Display Overview

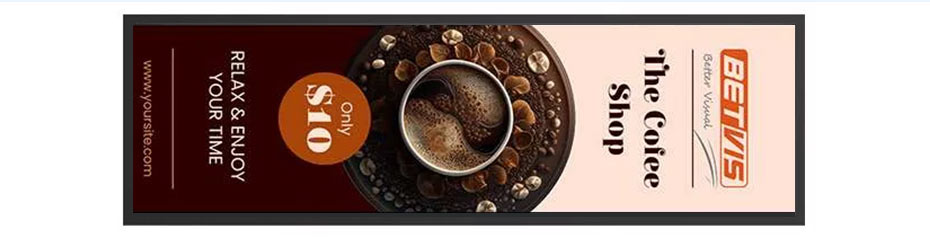

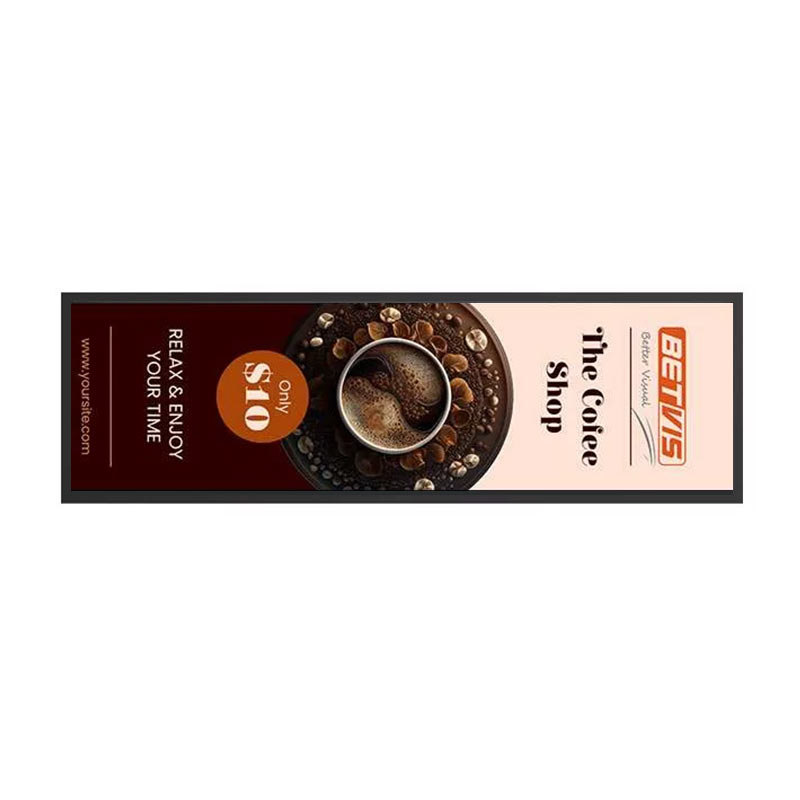

ET245BA01-YU is a 24.5-inch diagonal stretched bar TFT-LCD display featuring a transmissive IPS panel with high-brightness performance. It offers a 3840 × 1080 resolution across an active area of 596.7 (W) × 167.8 (H) mm and an outline dimension of 620 (W) × 245 (H) mm, making it well suited for ultra-wide digital signage, control panels, and professional visualization applications. The display utilizes an eDP interface and provides a typical brightness of 500 cd/m². With wide viewing angles of 89°/89°/89°/89° (L/R/U/D), it ensures consistent color and contrast from almost any angle. ET245BA01-YU operates in a temperature range of 0–50 °C and can be stored between –20 to 60 °C, and it supports touch functionality for interactive use.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
