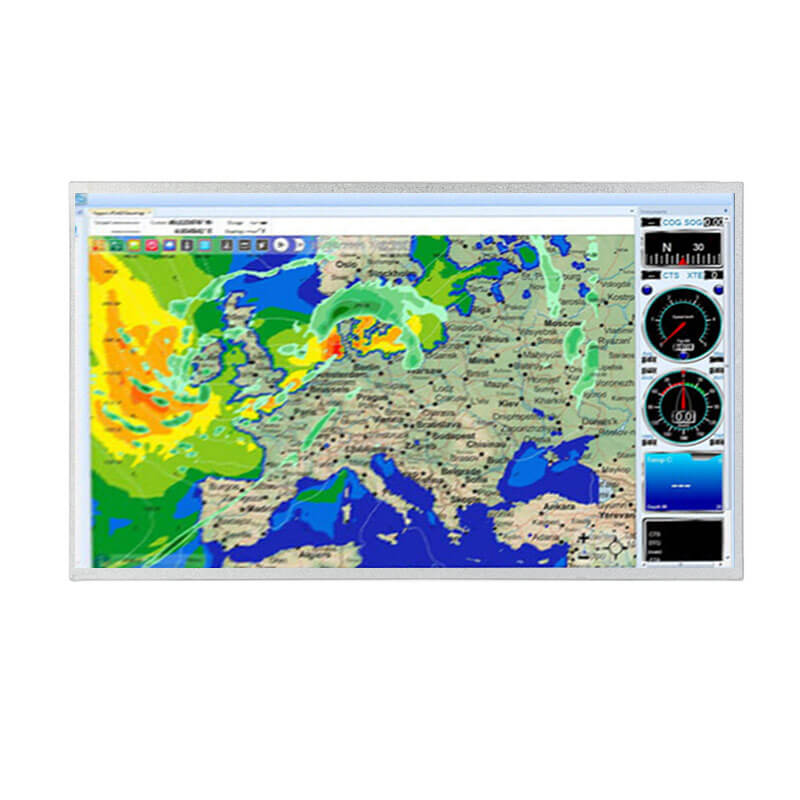

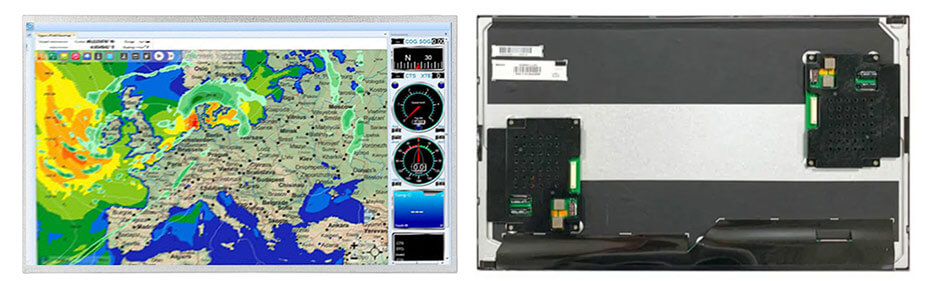

G238HCJ-LH1 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 527.04(W)×296.46(H) mm, outline size of 543(W)×317.4(H)×19.43(D) mm, viewing area size of 530.2(W)×299.6(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.82Kgs (Typ.). As a AAS, Normally Black, Transmissive LCM product, G238HCJ-LH1 can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 74% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, With LED Driver. G238HCJ-LH1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0±0.5V. It's typical vertical frame rate (Fv) is 60Hz.

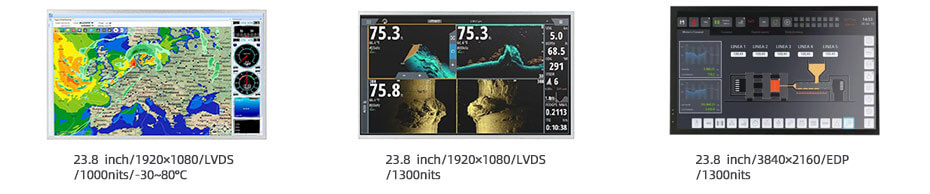

More 23.8 Inch Marine Display For Reference
G238HCJ-LH1 (1920×1080, LVDS, 1000nits, -30~80°C, 543×317.4mm)
ET238FH02-R (1920×1080, LVDS, 1300nits, -20~80°C, 550.46×325.04mm)
P2380UHF1MA00 (3840×2160, eDP, 1300nits, -20~70°C, 549×323.4mm)
High Visibility & Optical Performance:
-Optical Bonding, reduce reflections and prevent internal fogging
-High Brightness, ranges from 500 to over 3000 cd/m² for direct sunlight readability
-Wide Dimming Range, adjust down to as low as 0.05 cd/m² for safe night operation on the bridge
Corrosion & Environmental Protection:
-Typically IP65 (dust-tight and protected against water jets) or IP67 (temporarily submersible)
-Salt Fog Resistance, built to resist corrosion from salt-laden air
Night Vision Compatibility (NVIS):
-NVIS Mode, LED backlighting compatible with MIL-STD-3009, switching to specific low-intensity green or red light
-Ultra-Low Luminance, dim to extremely low levels (0.05 cd/m²) to preserve natural night vision
Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance
Rugged & Reliable Design:
-Shock & Vibration Resistance, built to withstand constant engine vibration and wave impacts (MIL-STD-810)
-Wide Temperature Range: Operates in extreme cold (-40°C or lower) to intense heat (85°C+)
Navigation & Chartplotting
-ECDIS (Electronic Chart Display and Information System)
-Radar display
-Chartplotters
-Route monitoring and planning
Integrated Bridge Systems (IBS)
-Centralized multi-function workstations combining radar
-ECDIS
-Conning information
-Alarm management
-Engine monitoring
Fishfinding & Sonar
-Commercial fishing
-Recreational fishfinding
-Underwater structure and bottom mapping
Mission & Combat Systems (Naval)
-Combat Management Systems (CMS)
-Tactical moving maps
-Sensor (radar/EO/IR) integration
-AI-powered target tracking
Performance Monitoring (Racing/High-End)
-True wind speed/direction (Boat speed, heel angle, polar performance, start-line timing)
Entertainment & Lifestyle
-Satellite TV, DVD/multimedia, audio distribution, onboard ambiance control
Security & Surveillance
-CCTV camera monitoring (engine room, deck, dock)
-Man-overboard (MOB) systems
-Remote vessel monitoring via satellite/web
Integrated Vessel Control
-Lighting (CZone), HVAC, tank monitoring, power management, engine diagnostics and control
Corrosion & Environmental Protection:
-Typically IP65 (dust-tight and protected against water jets) or IP67 (temporarily submersible)
-Salt Fog Resistance, built to resist corrosion from salt-laden air
Night Vision Compatibility (NVIS):
-NVIS Mode, LED backlighting compatible with MIL-STD-3009, switching to specific low-intensity green or red light
-Ultra-Low Luminance, dim to extremely low levels (0.05 cd/m²) to preserve natural night vision
Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance
Rugged & Reliable Design:
-Shock & Vibration Resistance, built to withstand constant engine vibration and wave impacts (MIL-STD-810)
-Wide Temperature Range: Operates in extreme cold (-40°C or lower) to intense heat (85°C+)
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
