17"-31.5" Touch Screen (21.5")

21.5 Inch Capacitive Touch Screen G+G 16:9 Multi-touch I2C ILI2510 Capacitive Touch Screen

Part No.:ET215CTP02
Size:21.5″ inch
Resolution:Optional
Panel Interface:USB
Display mode:PCAP
Outline Dimension:524.6x311.8mm
Active Area:476x267.7mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

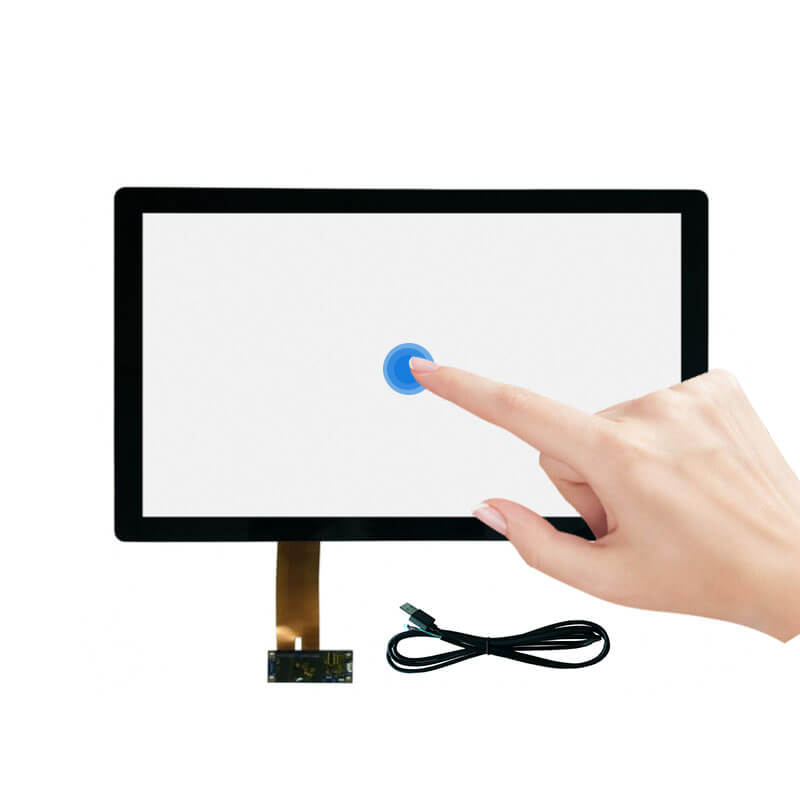

21.5 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: USB,RS232
Display Area: 476x267.7 mm
Outline Dim.: 524.6x311.8 mm
Operation Temperature: -20~70 °C
Storage Temperature: -30~80 °C

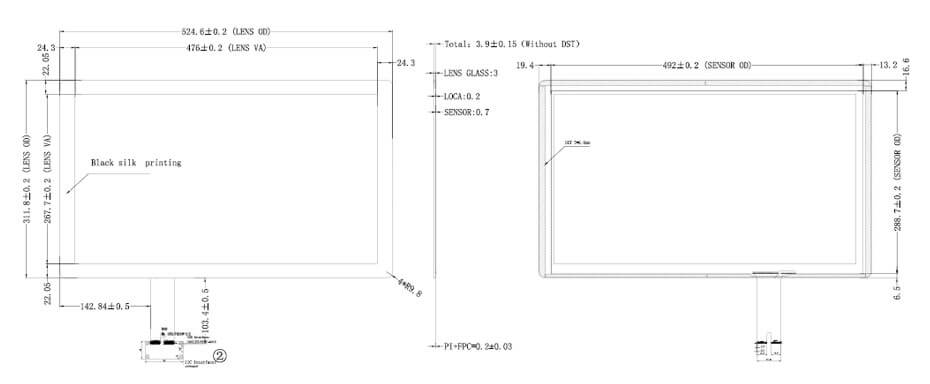

21.5 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS
