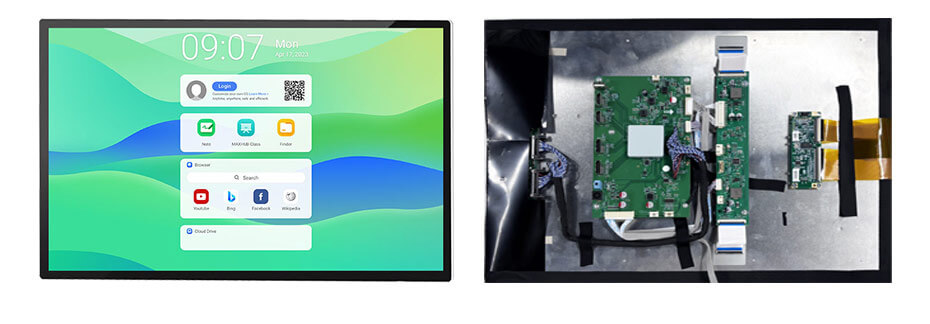

21.3 Inch High Brightness Display 1500nits IPS 1536x2048 LVDS TFT LCD Display With Capacitive Touch

  • Part No.:ET213WQ01-G
  • Size:21.3″ inch
  • Resolution:1536x2048
  • Panel Interface:LVDS
  • Display mode:Transflective
  • Outline Dimension:470x350mm
  • Active Area:324.864x433.152mm
  • Viewing Angle L/R/U/D:89/89/89/89
  • Brightness(cd/m2):1500(Min.)
  • Operation / Storage Temp:0~50°C / -20~60°C
  • Touch:yes

21.3 Inch High Brightness LCD Display Overview
21.3 Inch High Brightness Display 1500nits IPS 1536x2048 LVDS TFT LCD Display With Capacitive Touch.


More 21.3 Inch High Brightness Display For Reference
ET213BA01-Y (1920x317, LVDS, 1000nits, 0~50°C, 570.62x124.6mm)
ET213WQ01-G (1536x2048, LVDS, 1500nits, 0~50°C, 470x350mm, CTP)


Outdoor High Brightness Displays Technology


YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options


Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
