21.3 Inch High Brightness Display 1000nits IPS 1920x317 LVDS TFT LCD Display

Part No.:ET213BA01-Y
Size:21.3″ inch
Resolution:1920x317
Panel Interface:LVDS
Display mode:Transmissive

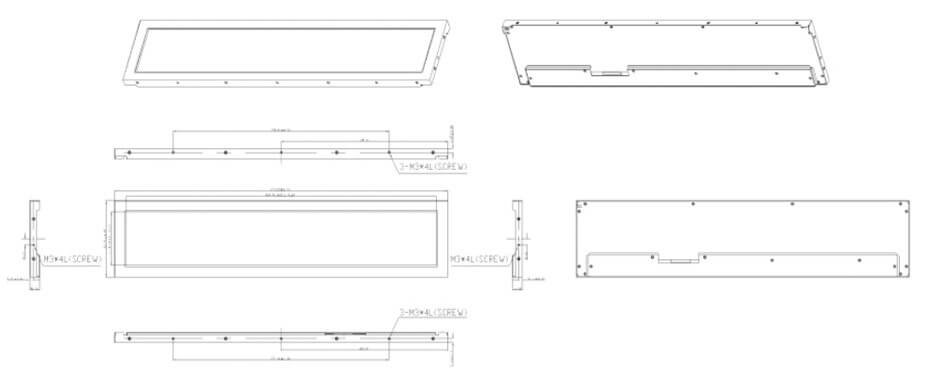

Outline Dimension:570.62x124.6mm
Active Area:531.36x87.4mm
Viewing Angle L/R/U/D:85/85/80/80
Brightness（cd/m2）:1000(Typ.)
Operation / Storage Temp:0~50°C / -20~60°C
Touch:no

21.3 Inch High Brightness LCD Display Overview
21.3 Inch High Brightness Display 1000nits IPS 1920x317 LVDS TFT LCD Display.

More 21.3 Inch High Brightness Display For Reference
ET213BA01-Y (1920x317, LVDS, 1000nits, 0~50°C, 570.62x124.6mm)
ET213WQ01-G (1536x2048, LVDS, 1500nits, 0~50°C, 470x350mm, CTP)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
