0.48"-5" LCD Display (2")

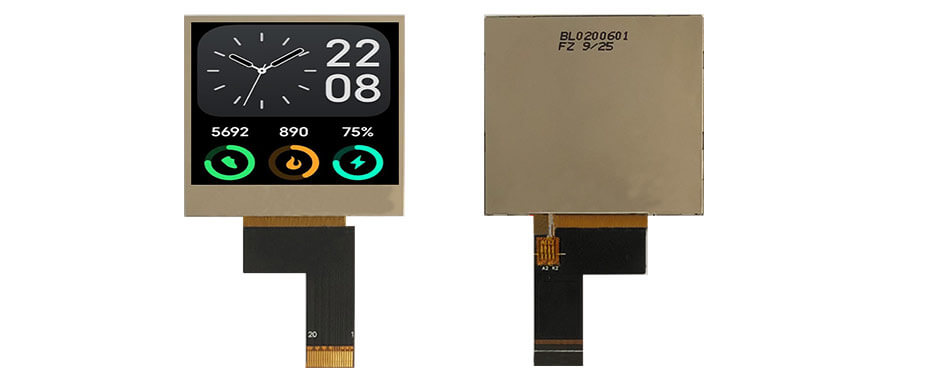

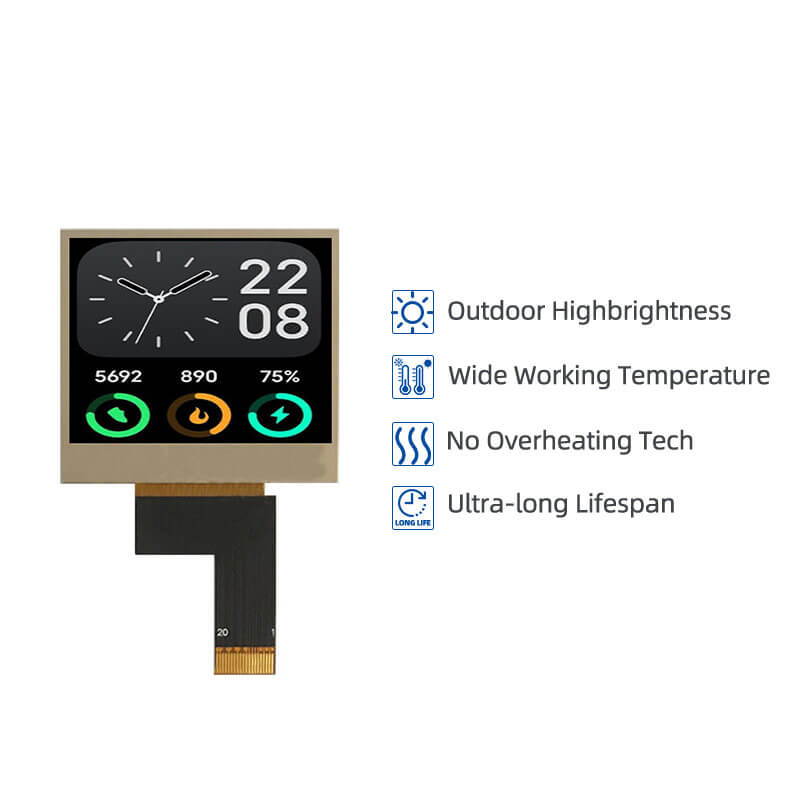

2 Inch High Brightness Display 900nits IPS 480x360 MIPI Wide Temperature TFT LCD Display For Handheld PDA

Part No.:ET020WQ30-K
Size:2″ inch
Resolution:480x360
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:46.5x41.56mm
Active Area:40.824x30.618mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:900(Typ.)
Operation / Storage Temp:-30~85°C / -30~85°C
Touch:no

2 Inch High Brightness Display Overview
2 Inch High Brightness Display 900nits IPS 480x360 MIPI Wide Temperature TFT LCD Display For Handheld PDA.

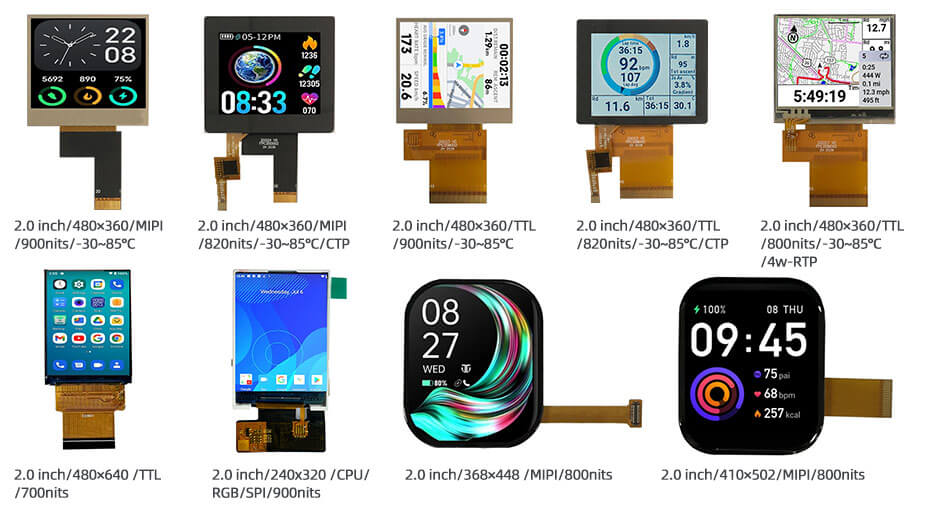

More 2 Inch High Brightness Display For Reference
ET020WQ30-K (480x360, MIPI, 900nits, -30~85°C, 46.5x41.56mm)
ET020WQ30-KT (480x360, MIPI, 820nits, -30~85°C, 54.5x47.56mm,Capacitive Touch)
ET020WQ20-K (480x360, TTL, 900nits, -30~85°C, 46.5x41.56mm)
ET020WQ20-KT (480x360, TTL, 820nits, -30~85°C, 54.5x47.56mm,Capacitive Touch)
ET020WQ20-KRT (480x360, TTL, 800nits, -30~85°C, 46.5x41.56mm,4w-RTP)
ET020VG01-R (480x640, TTL, 700nits, -20~70°C, 34.6x47.8mm)
ET020VG02-R (240x320, CPU/RGB/SPI, 900nits, -20~70°C, 36.72x56.74mm)
ET020AM02-HT (368x448, MIPI, 800nits, -20~70°C, 34.64x42.89mm,On-Cell Touch)
ET020AM03-HT (410x502, MIPI, 800nits, -20~70°C, 33.07x41.05mm,On-Cell Touch)

Outdoor Highbrightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
