2 Inch High Brightness LCD Display Overview

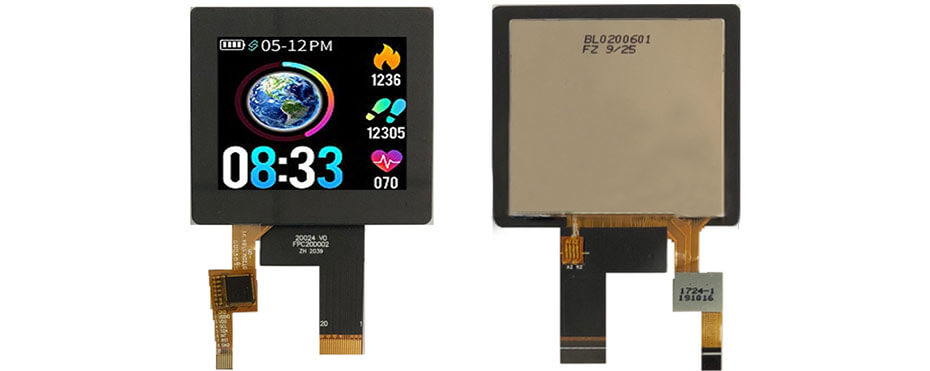

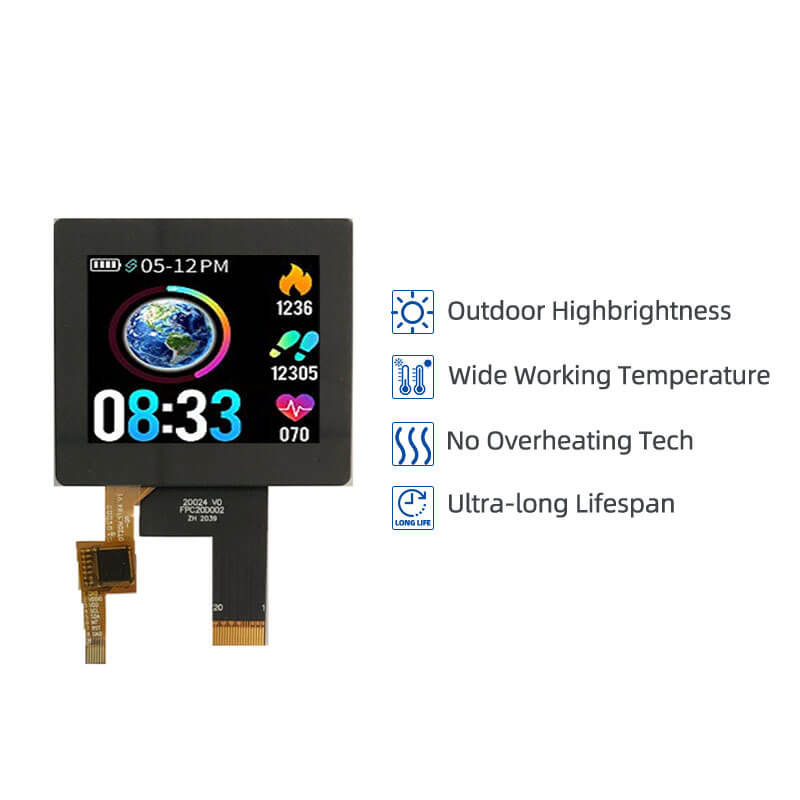

ET020WQ30-KT is a 2-inch diagonal high-brightness IPS TFT LCD display with capacitive touch. It supports a resolution of 480×360 with a MIPI interface. The display features an active area of 40.824(W)×30.618(H) mm and an outline dimension of 54.5×47.56 mm. ET020WQ30-KT provides a typical brightness of 820 cd/m², wide viewing angles of 80°/80°/80°/80° (L/R/U/D), operates in temperatures from –30 °C to 85 °C (storage –30 °C to 85 °C), and includes capacitive touch functionality.

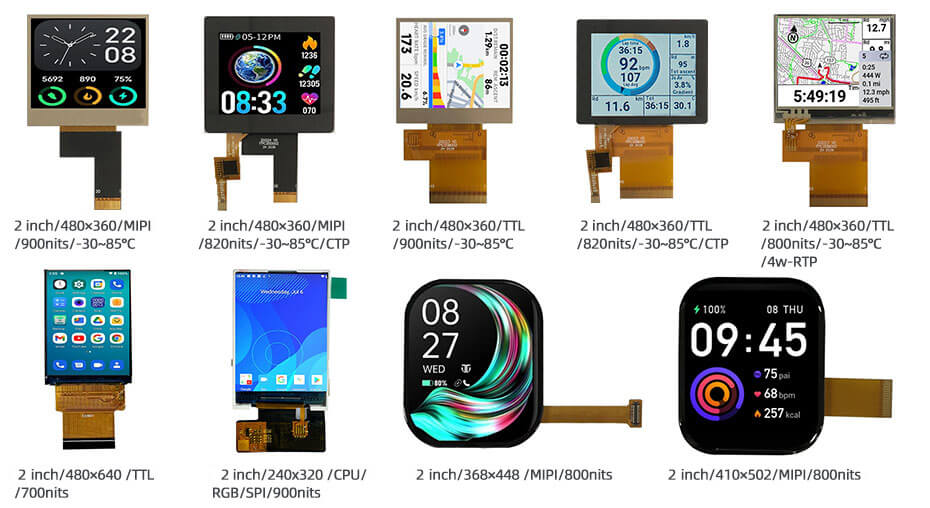

More 2 Inch High Brightness Display For Reference
ET020WQ30-K (LCD, 480x360, MIPI, 900nits, -30~85°C, 46.5x41.56mm)
ET020WQ30-KT (LCD, 480x360, MIPI, 820nits, -30~85°C, 54.5x47.56mm,Capacitive Touch)
ET020WQ20-K (LCD, 480x360, TTL, 900nits, -30~85°C, 46.5x41.56mm)
ET020WQ20-KT (LCD, 480x360, TTL, 820nits, -30~85°C, 54.5x47.56mm,Capacitive Touch)
ET020WQ20-KRT (LCD, 480x360, TTL, 800nits, -30~85°C, 46.5x41.56mm,4w-RTP)
ET020VG01-R (LCD, 480x640, TTL, 700nits, -20~70°C, 34.6x47.8mm)
ET020VG02-R (LCD, 240x320, CPU/RGB/SPI, 900nits, -20~70°C, 36.72x56.74mm)
ET020AM02-HT (OLED, 368x448, MIPI, 800nits, -20~70°C, 34.64x42.89mm,On-Cell Touch)
ET020AM03-HT (OLED, 410x502, MIPI, 800nits, -20~70°C, 33.07x41.05mm,On-Cell Touch)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
