2.9 Inch TFT LCD Display 480×640 MIPI LCD Display for Measuring Rangefinder Display Solution

2.9 Inch TFT LCD Display 480×640 MIPI LCD Display for Measuring Rangefinder Display Solution Overview

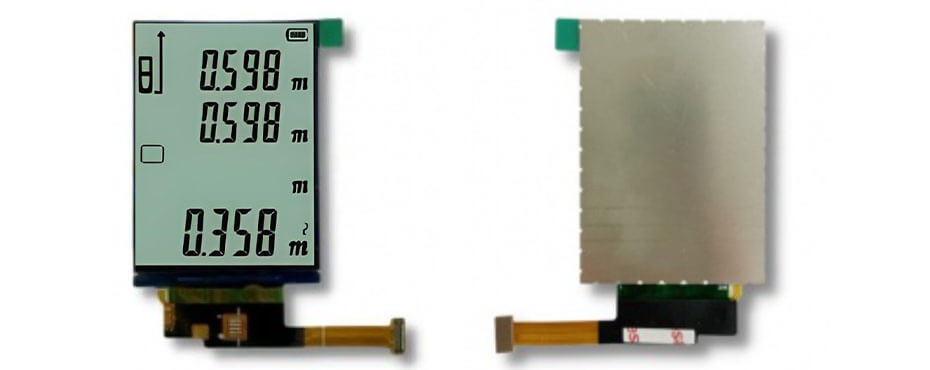

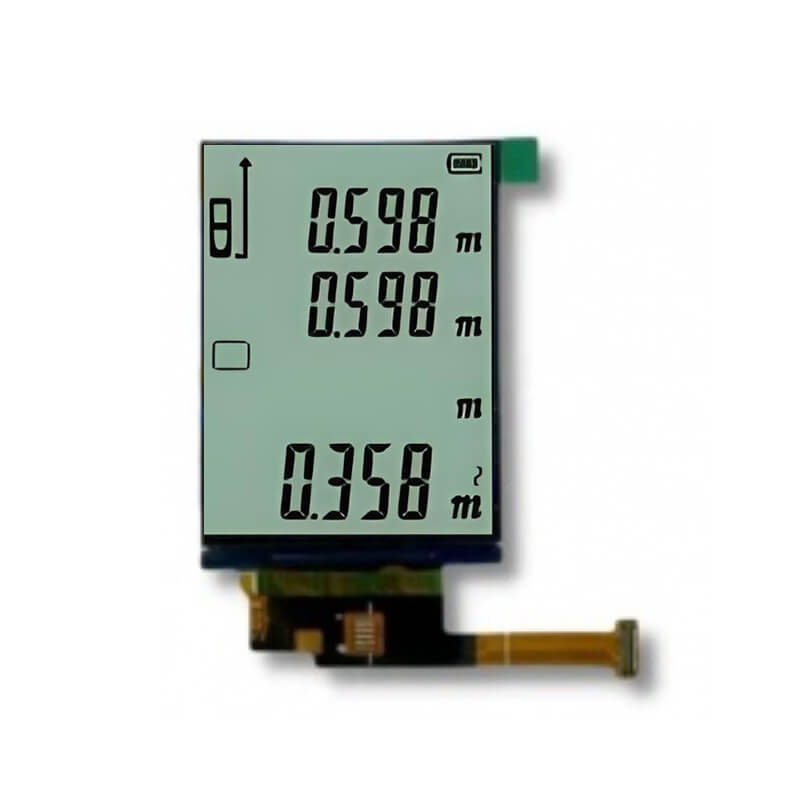

ET029QV01-TH is a 2.9-inch diagonal TFT-LCD display module featuring a resolution of 480×640 pixels and a MIPI interface. ET029QV01-TH adopts a transmissive display mode and offers a wide viewing angle of 80° in all directions (L/R/U/D), providing clear images from different viewing positions. It features an active area of 43.2(W)×57.6(H) mm and an outline dimension of 46.2(W)×65.18(H) mm. Designed for reliable performance in demanding environments, ET029QV01-TH supports an operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C. Without a touchscreen, this display is suitable for measuring instruments, laser rangefinders, and other embedded devices requiring a compact, high-resolution TFT-LCD display solution.

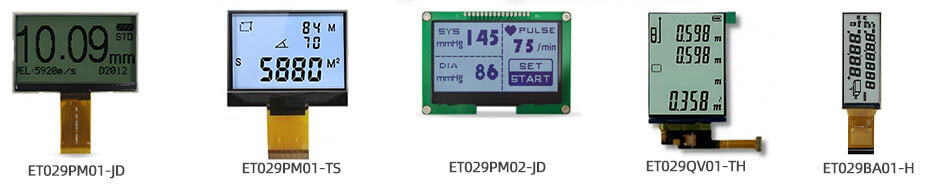

More 2.9 Inch Healthcare & Medical Display Solution For Reference
ET029PM01-JD (LCM, 128×64, SPI, Monochrome, 78.4×50mm, 0~50°C)
ET029PM01-TS (LCM, 128×64, CPU, Monochrome, 58.2×39mm, -20~70°C)
ET029PM02-JD (LCM, 240×120, CPU/SPI, Monochrome, 90×62mm, -20~70°C)
ET029QV01-TH (LCM, 480×640, MIPI, 400nits, 46.2×65.18mm, -20~70°C)
ET029BA01-H (LCM, 376×960, TTL, 400nits, 31.2×76.6mm, -20~70°C)

Key Features of Measuring Rangefinder Display Solutions

High Visibility
-High-contrast display technology ensures clear measurement data in both bright outdoor and low-light indoor conditions.
Low Power Consumption
-Energy-efficient display solutions help extend battery life for portable measuring devices.
Compact Design
-Slim and lightweight display modules enable easy integration into handheld rangefinders with limited installation space.
Multiple Display Technologies
-Available in OLED, TFT LCD, and monochrome LCD options to meet different application requirements.
Flexible Interface Options
-Support for SPI, I²C, MCU, RGB, MIPI, and other interfaces simplifies hardware integration.
Wide Operating Temperature
-Designed to operate reliably in harsh industrial and outdoor environments.
Excellent Viewing Performance
-Wide viewing angles provide clear visibility from different directions for improved user experience.
Custom Display Solutions
-Custom sizes, resolutions, brightness, touch panels, cover glass, and interface configurations are available to match specific project requirements.
Long-Term Supply
-Stable production and long product lifecycle support industrial and professional equipment manufacturers.

Applications For Measuring Rangefinder Display Solutions

Laser Rangefinders
-Display real-time distance measurements, target information, battery status, and operating modes.
Golf Rangefinders
-Provide clear yardage readings and measurement data for enhanced on-course performance.
Hunting Rangefinders
-Ensure high-contrast visibility in various lighting conditions for outdoor use.
Construction Measuring Tools
-Display distance, area, volume calculations, and measurement settings for professional construction applications.
Surveying Instruments
-Support accurate data presentation in total stations, laser measuring devices, and field surveying equipment.
Industrial Measuring Equipment
-Deliver stable display performance for precision measurement, inspection, and automation systems.
Optical Measuring Devices
-Present measurement values and system information with high clarity for optical instruments.
Portable Test & Measurement Instruments
-Ideal for handheld electronic measuring devices that require compact size, low power consumption, and reliable operation.

Youritech Measuring Rangefinder Display Production and Manufacturing
