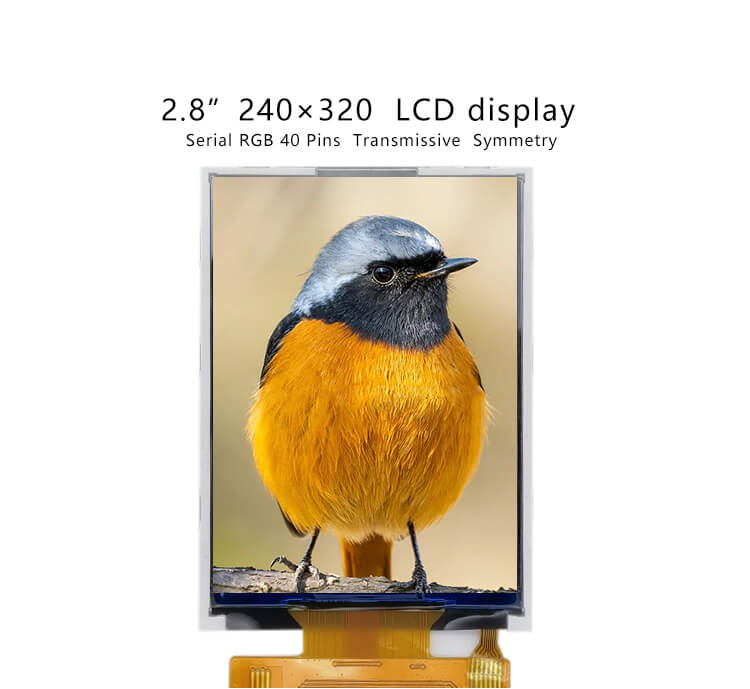

2.8 Inch LCD Display 240x320 RGB565 BIT Interface LCD Screen Handheld PDA Display

Part No.:ET028QV02-T
Size:2.8″ inch
Resolution:240x320
Panel Interface:RGB565 BIT
Display mode:Normally black
Outline Dimension:50x69.2x2.4mm
Active Area:43.2x57.6mm
Viewing Angle L/R/U/D:ALL O\\\'CLOCK
Brightness（cd/m2）:400cd/㎡
Operation / Storage Temp:-20+70℃ / -30+80℃
Touch:no

2.8 Inch 240x320 LCD Display
