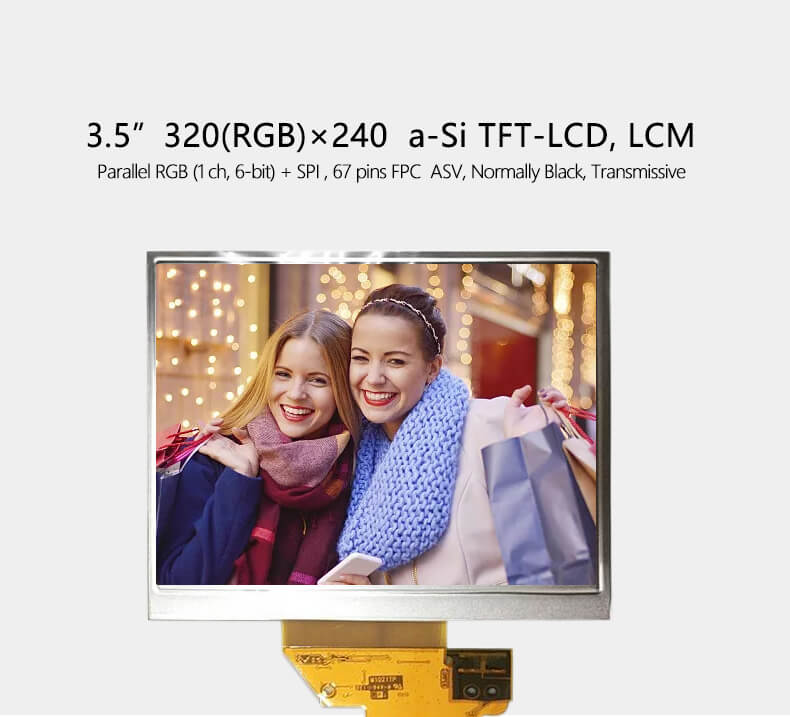

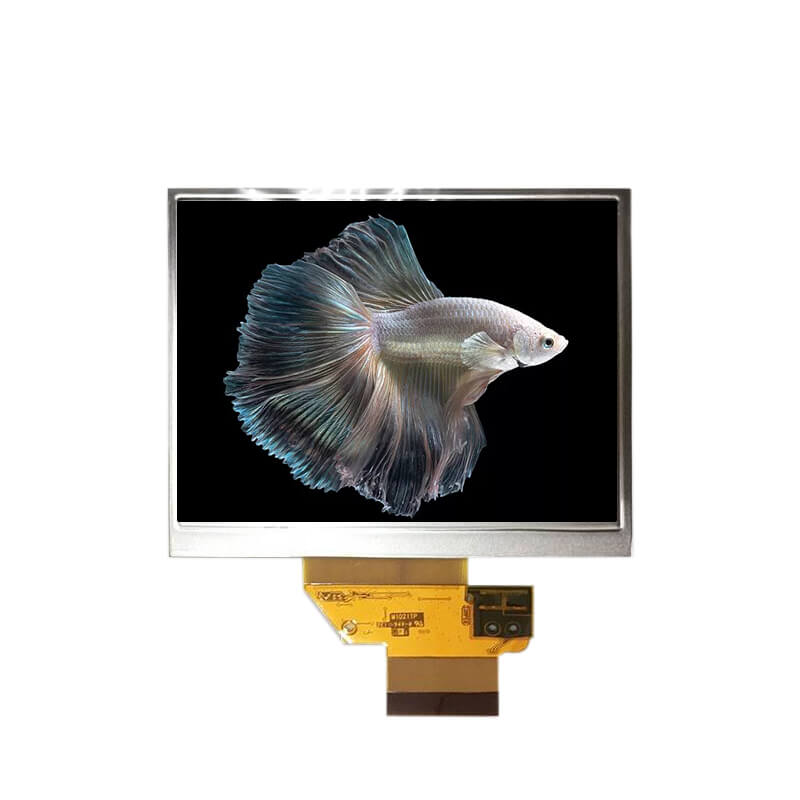

LQ035Q3DW02 Sharp 3.5 Inch TFT LCD Display 320x240 Parallel RGB SPI LCD Panel

  • Part No.:LQ035Q3DW02
  • Size:3.5″ inch
  • Resolution:320x240
  • Panel Interface:Parallel RGB (1 ch,6-bit) + SPI
  • Display mode:ASV,Transmissive
  • Outline Dimension:76.9(H)x63.9(V)mm
  • Active Area:70.56(H)x52.92(V)mm
  • Viewing Angle L/R/U/D:80/80/80/80 (Typ.)
  • Brightness(cd/m2):450(Typ.)
  • Operation / Storage Temp:-10~70°C / -25~70°C
  • Touch:no

LQ035Q3DW02 Overview
LQ035Q3DW02 is a 3.5 inch diagonal a-Si TFT-LCD display screen, with a built-in WLED backlight, without backlight driver, without touch screen.LQ035Q3DW02 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.56(W)×52.92(H) mm, outline size of 76.9(W)×63.9(H) mm, with surface treament of Antiglare, net weight of 33.0 (Typ.). As a ASV, Normally Black, Transmissive LCM product, LQ035Q3DW02 can provides 450 cd/m² display brightness 500:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 7S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. LQ035Q3DW02 utilizes Parallel RGB (1 ch, 6-bit) + SPI as it's signal inputting systerm, which connected by 67 pins FPC with power supply voltage of 3.3/3.3V (Typ.)(VDDIO/VCI). It's typical vertical frame rate (Fv) is 60Hz.

Application
For Handheld & PDA,Industrial.
