2.76 Inch Circular Display 480x480 TTL 550nits High Brightness IPS Round LCD Display With Capacitive Touch

Part No.:ET028WF00-TT
Size:2.76″ inch
Resolution:480x480
Panel Interface:TTL
Display mode:Transmissive
Outline Dimension:81.23x84.4mm
Active Area:70.128x70.128mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:550(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

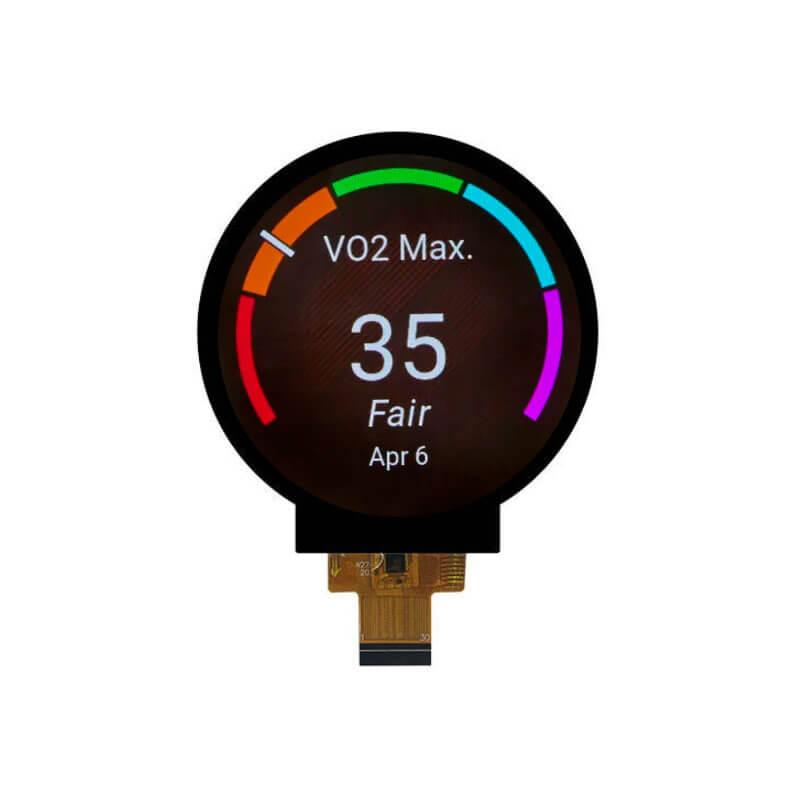

2.76 Inch Circular Display Overview
ET028WF00-TT is a 2.76-inch circular high-brightness IPS LCD display designed for wearable applications. It features a 480 × 480 resolution with a TTL interface, delivering 550 cd/m² typical brightness across a 70.128 × 70.128 mm active area. The display offers 85° viewing angles, a 81.23 × 84.4 mm outline, operates from –20 to 70 °C, supports storage from –30 to 80 °C, and includes capacitive touch functionality.

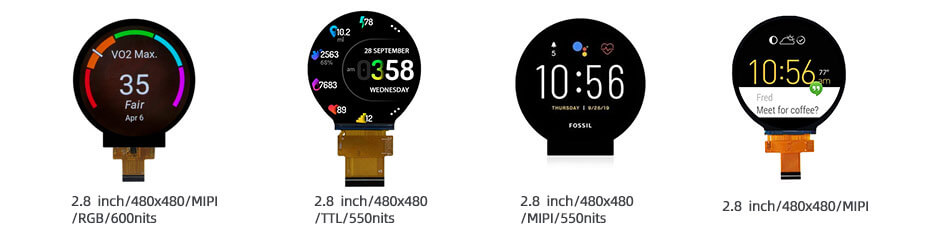

More 2.8 Inch Circular LCD Display For Reference
ET027WF01-T (480x480, MIPI/RGB, 600nits, -20~70°C, 73.03x76.48mm)
ET028WF00-TT (480x480, TTL, 550nits, -20~70°C, 81.23x84.4mm, CTP)
ET028WF01-TT (480x480, MIPI, 550nits, -20~70°C, 81.23x84.4mm, CTP)
ET028CR01-ZT (480x480, MIPI,-20~70°C, 75.7x112.53mm)
