0.48"-5" LCD Display (2.8")

2.76 Inch Circular Display 480x480 MIPI/RGB 600nits High Brightness IPS Round LCD Display

Part No.:ET027WF01-T
Size:2.76″ inch
Resolution:480x480
Panel Interface:MIPI/RGB
Display mode:Transmissive
Outline Dimension:73.03x76.48mm
Active Area:/
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:600nits
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

2.76 Inch Circular Display Overview

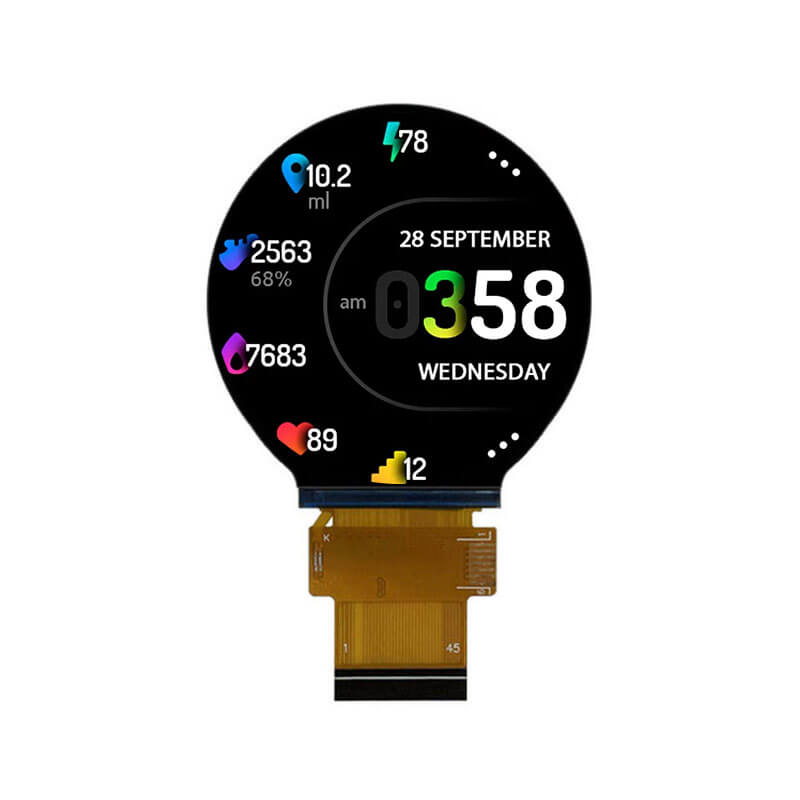

ET027WF01-T is a 2.76-inch circular high-brightness IPS LCD display with a 480 × 480 resolution. It supports MIPI and RGB interfaces, offers 600 cd/m² brightness, and 85° viewing angles. The display has an outline of 73.03 × 76.48 mm, operates between –20 to 70 °C, stores between –30 to 80 °C, and does not include touch functionality.

More 2.8 Inch Circular LCD Display For Reference
ET027WF01-T (480x480, MIPI/RGB, 600nits, -20~70°C, 73.03x76.48mm)
ET028WF00-TT (480x480, TTL, 550nits, -20~70°C, 81.23x84.4mm, CTP)
ET028WF01-TT (480x480, MIPI, 550nits, -20~70°C, 81.23x84.4mm, CTP)
ET028CR01-ZT (480x480, MIPI,-20~70°C, 75.7x112.53mm)
