2.6 Inch Wide Temperature LCD Display 320×423 MIPI -30°C to 85°C High Brightness 500nits TFT LCD Display

2.6 Inch Wide Temperature LCD Display Overview

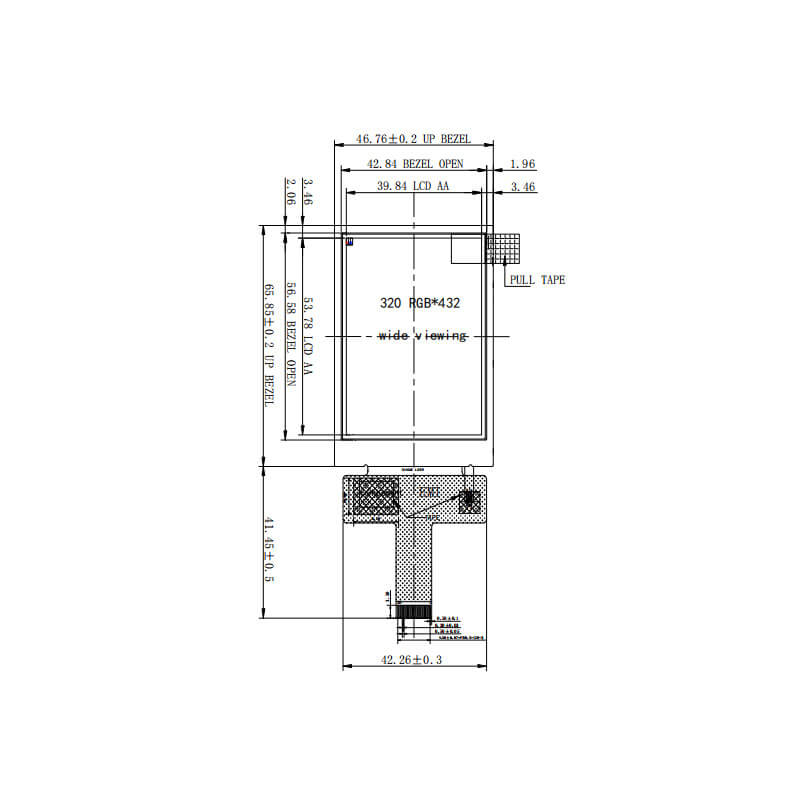

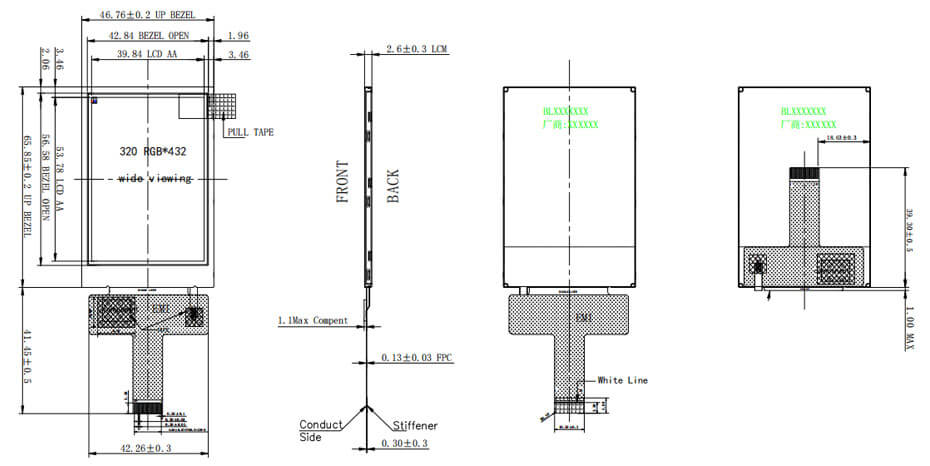

ET026QE02-K is a 2.6 inch diagonal TFT-LCD display screen product. ET026QE02-K supports a display resolution of 320×430, whose pixels are arranged in a standard RGB stripe configuration. It features an active area of 39.84(W) × 53.78(H) mm and an outline dimension of 46.76(W) × 65.85(H) mm. The module adopts a transmissive display mode and supports a high-speed MIPI interface for communication. ET026QE02-K provides a high brightness of 500 cd/m² and offers a wide viewing angle of 80/80/80/80 (L/R/U/D) for clear visibility from multiple directions. Designed for wide temperature applications, it supports an operating temperature range of -30°C to 85°C and a storage temperature range of -40°C to 85°C. This display module does not include a touch panel.

Wide Temperature Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing
