2.66 Inch E-Paper Display 296×152 SPI Fast Refresh 1.5s Black & White Electronic Paper Display

2.66 Inch E-Paper Display 296×152 SPI Fast Refresh 1.5s Black & White Electronic Paper Display Overview

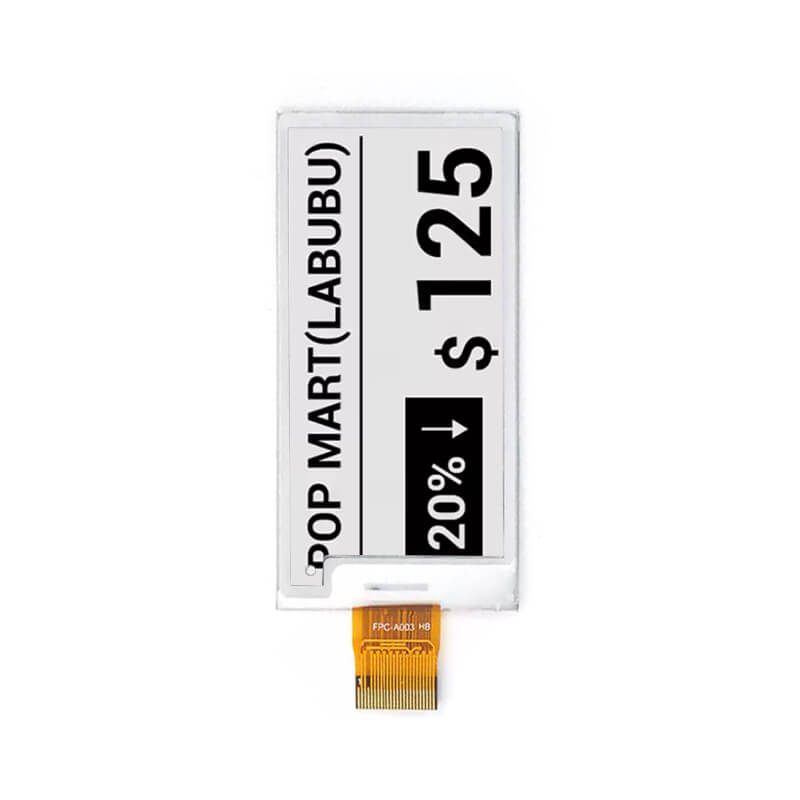

ET026EP01-J is a 2.66 inch diagonal black and white E-Paper (EPD) display module utilizing advanced electronic ink technology to deliver ultra-low power consumption and a paper-like viewing experience. ET026EP01-J supports a 296×152 resolution with a wide aspect ratio, providing sharp text, graphics, barcodes, QR codes, and icons for applications such as electronic shelf labels, smart tags, industrial control systems, medical devices, and IoT products. The module adopts an SPI interface for easy system integration and features 1.5-second fast refresh performance, enabling quicker screen updates while maintaining the bistable, ultra-low-power characteristics of E-Paper technology. It features an active area of 30.704(W) × 60.088(H) mm, an outline dimension of 36.30(W) × 71.82(H) × 1.0(D) mm, and operates reliably within a 0°C to 50°C operating temperature range, with a storage temperature of -25°C to 70°C. Designed without a touch panel, the ET026EP01-J provides high contrast, a wide viewing angle, and excellent readability under ambient light, making it an ideal display solution for battery-powered electronic paper applications requiring fast refresh performance, long service life, and minimal power consumption.

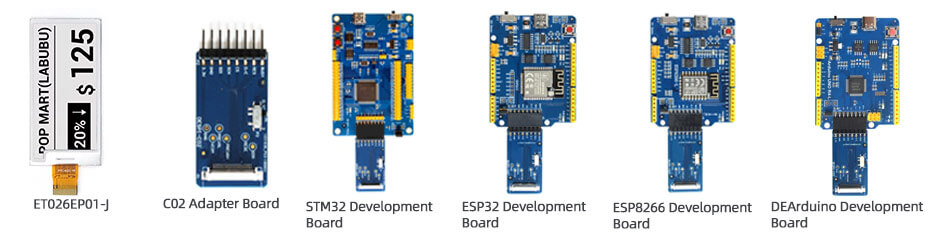

2.66 Inch E Ink Display Solution For Reference
ET026EP01-J
C02 Adapter Board
STM32 Development Board
ESP32 Development Board
ESP8266 Development Board
DEArduino Development Board

Features For Youritech E-Paper Display

Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.

-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
