2.66 Inch Black White Yellow Red E-Paper Display 296×152 SPI Electronic Ink Display Module

2.66 Inch Black White Yellow Red E-Paper Display 296×152 SPI Electronic Ink Display Module Overview

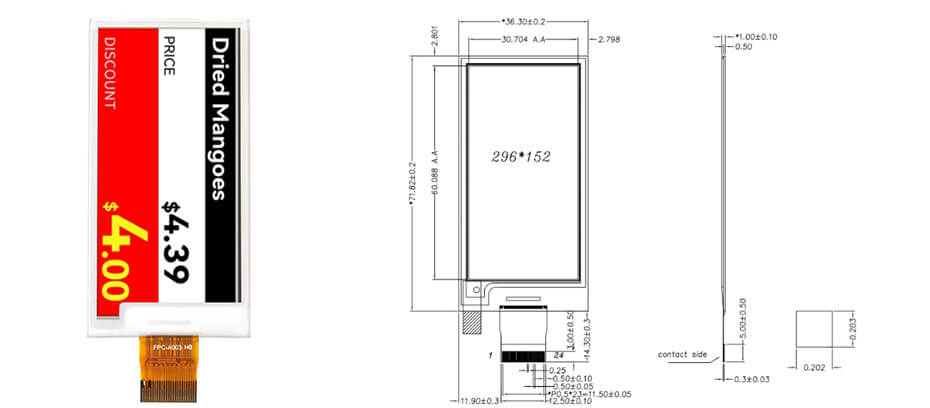

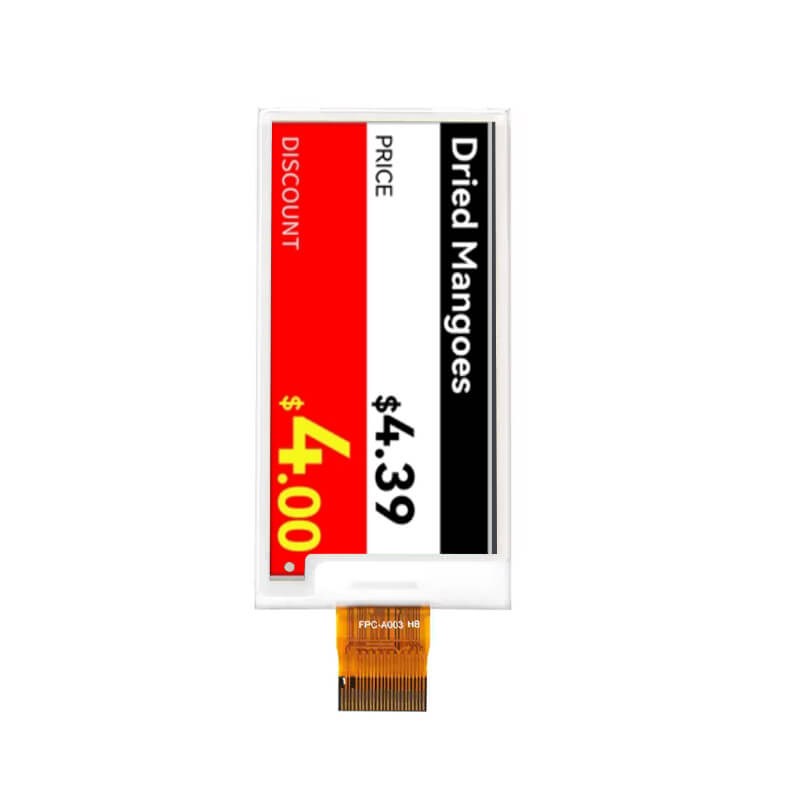

ET026EP03-J is a 2.66 inch diagonal black, white, yellow, and red E-Paper (EPD) display module utilizing advanced electronic ink technology to provide ultra-low power consumption and a vivid paper-like viewing experience. ET026EP03-J supports a 296×152 resolution with a wide aspect ratio, delivering clear text, multi-color graphics, icons, and images for applications such as electronic shelf labels, smart retail signage, industrial instruments, logistics labels, and IoT devices. The module adopts an SPI interface for simple system integration and efficient data communication. It features an active area of 60.088(W) × 30.704(H) mm, an outline dimension of 71.82(W) × 36.3(H) × 1.0(D) mm, and operates reliably within a 0°C to 40°C operating temperature range, with a storage temperature of -25°C to 60°C. Designed without a touch panel, the ET026EP03-J provides high contrast, a wide viewing angle, and bistable display performance, making it an ideal display solution for battery-powered electronic paper applications requiring eye-friendly viewing, long service life, and rich four-color content presentation.

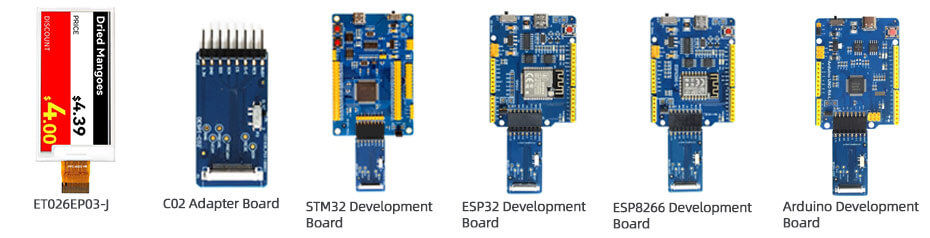

2.66 Inch E Ink Display Solution For Reference
ET026EP03-J
C02 Adapter Board
STM32 Development Board
ESP32 Development Board
ESP8266 Development Board
Arduino Development Board

Features For Youritech E-Paper Display

Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.

-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
