0.48"-5" LCD Display (2.4")

2.4 Inch Transflective Display IPS 240x320 CPU/SPI Sunlight Readable LCD Display For Handheld PDA

Part No.:ET024TR01-H
Size:2.4″ inch
Resolution:240x320
Panel Interface:CPU/SPI
Display mode:Transflective
Outline Dimension:40.02x56.95mm
Active Area:36.72x48.96mm
Viewing Angle L/R/U/D:60/60/60/60
Brightness（cd/m2）:150(Typ.)
Operation / Storage Temp:-20~60°C / -30~70°C
Touch:no

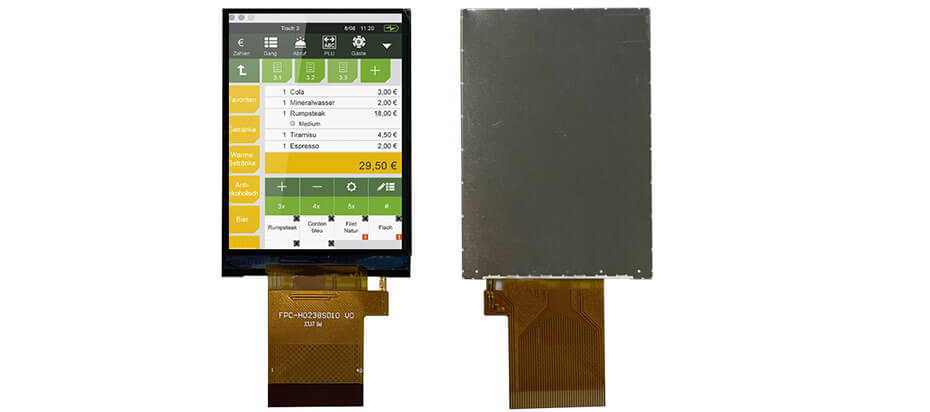

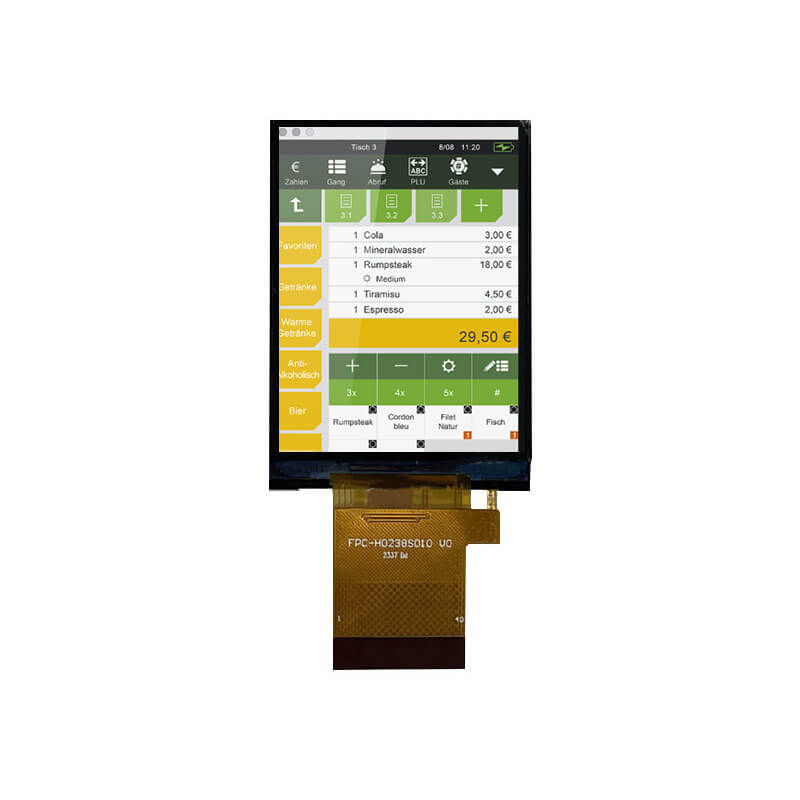

2.4 Inch Transflective LCD Display Overview
The ET024TR01-H is a 2.4-inch transflective IPS LCD display for handheld PDAs, featuring a 240×320 resolution and CPU/SPI interface. It has an active area of 36.72×48.96 mm and overall dimensions of 40.02×56.95 mm. The display provides 150 cd/m² brightness, 60° viewing angles in all directions, operates between –20–60 °C, can be stored from –30–70 °C, and does not support touch functionality.

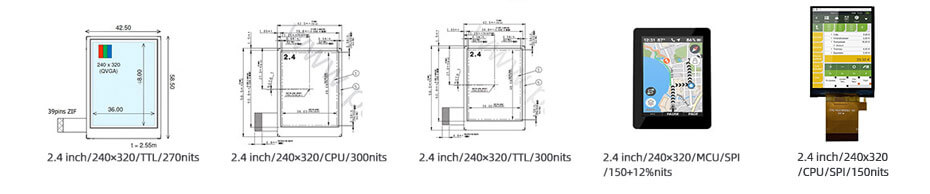

More 2.4 Inch Transflective LCD Display For Reference
COM24H2P71ULC (240x320, TTL, 270nits, -30~85°C, 42.5x58.5mm)
COM24H2P96ULC (240x320, CPU, 300nits, -20~70°C, 42.5x58.5mm)
COM24H2P94ULC (240x320, TTL, 300nits, -20~70°C, 42.5x58.5mm)
ET024TR01-H (240x320, CPU/SPI, 150nits, -20~60°C, 40.02x56.95mm)
ET024TR01-V (240x320, MCU/SPI, 150+12%, -20~70°C, 51.32x86.61mm, CTP(Optical)
