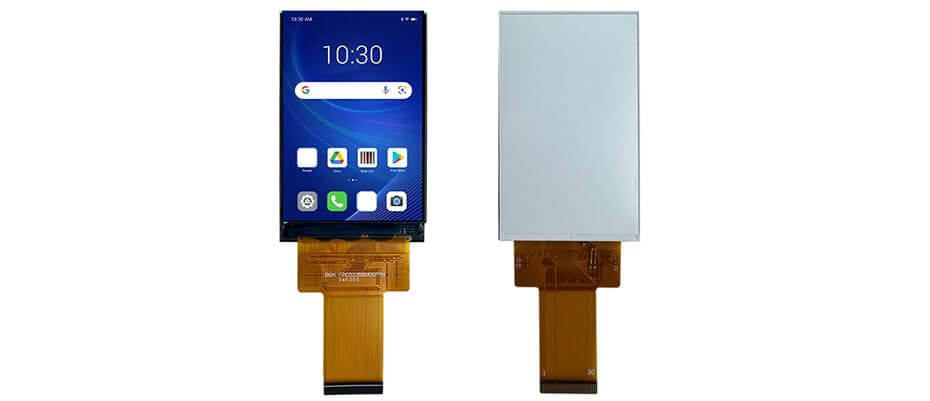

2.3 Inch High Brightness Display 700nits IPS 320x480 TTL TFT LCD Display For Handheld PDA

Part No.:ET023QV01-R
Size:2.3″ inch
Resolution:320x480
Panel Interface:TTL
Display mode:Transmissive
Outline Dimension:37.52x59.78mm
Active Area:33.12x49.68mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:700(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

2.3 Inch High Brightness LCD Display Overview
ET023QV01-R is a 2.3-inch diagonal high-brightness IPS TFT LCD display designed for handheld PDAs. It supports a 320×480 resolution with TTL interface and a transmissive display mode. The active area measures 33.12(W)×49.68(H) mm, with an outline size of 37.52×59.78 mm. ET023QV01-R provides a typical brightness of 700 cd/m², full 80° viewing angles in all directions (L/R/U/D), and operates over a temperature range of –20 °C to 70 °C (storage –30 °C to 80 °C). Touch functionality is not supported.
