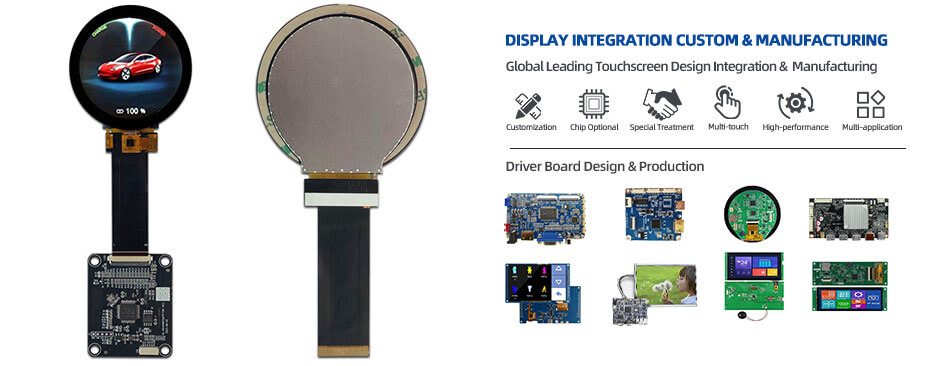

2.1 Inch Circular Display 480x480 UART IPS Round LCD Display With Capacitive Touch

Part No.:ET021CR10-TT-HDMI
Size:2.1″ inch
Resolution:480x480
Panel Interface:UART
Display mode:Transmissive
Outline Dimension:65.96x65.96mm
Active Area:53.28x53.28mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:400(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

2.1 Inch Circular Display Overview
2.1 Inch Circular Display 480x480 UART IPS Round LCD Display With Capacitive Touch.

More 2.1 Inch Circular LCD Display For Reference
ET021WV01-TT (480x480, TTL, 400nits, -20~70°C, 71.8x71.8mm, CTP)
ET021CR01-TS (480x480, TTL, 1000nits, -20~70°C, 56.18x59.71mm)
ET021CR01-Z (480x480, MIPI, 1000nits, -20~70°C, 56.18x59.71mm)
ET021CR10-TT-HDMI (480x480, UART, 400nits, -20~70°C, 65.96x65.96mm, CTP)
ET021WV02-T (480x480, MIPI, 450nits, -20~70°C, 71.8x71.8mm)
