LCD above 17.3" (19")

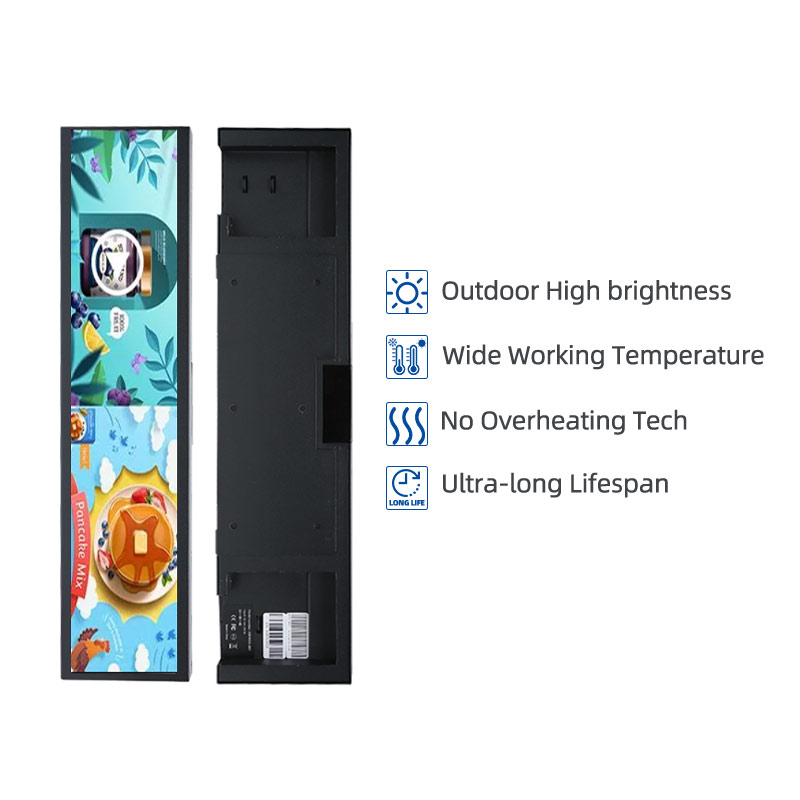

19 Inch High Brightness Display 700nits IPS 1920x290 LVDS TFT LCD Display

Part No.:ET190BA01-Y
Size:19″ inch
Resolution:1920x290
Panel Interface:LVDS
Display mode:Transmissive
Outline Dimension:482x73mm
Active Area:476.64x71.99mm
Viewing Angle L/R/U/D:89/89/89/89
Brightness（cd/m2）:700(Typ.)
Operation / Storage Temp:0~50°C / -20~60°C
Touch:no

19 Inch High Brightness LCD Display Overview
19 Inch High Brightness Display 700nits IPS 1920x290 LVDS TFT LCD Display.

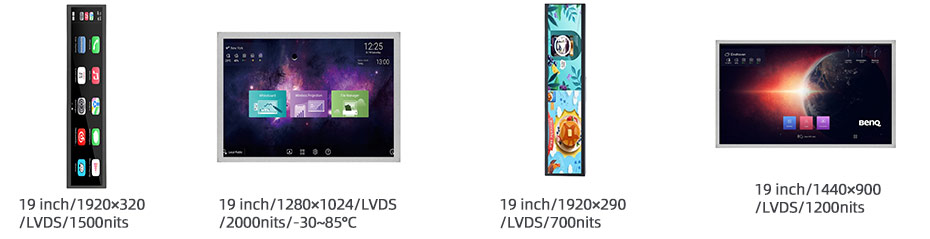

More 19 Inch High Brightness Display For Reference
ET190BA01-T (1920x320, LVDS, 1500nits, 0~50°C, 500x119.6mm)
ET190SX01-HT (1280x1024, LVDS, 2000nits, -30~85°C, 396x324mm)
ET190BA01-Y (1920x290, LVDS, 700nits, 0~50°C, 482x73mm)
ET190BA01-H (1440x900, LVDS, 1200nits, -10~50°C, 428x278mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
