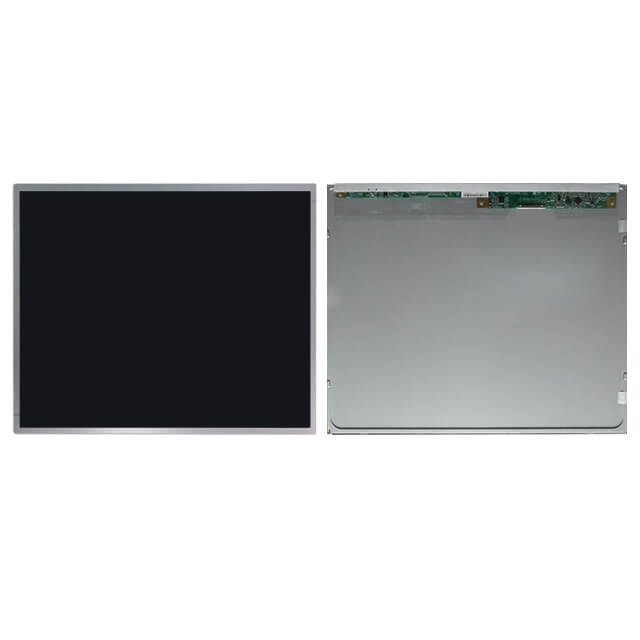

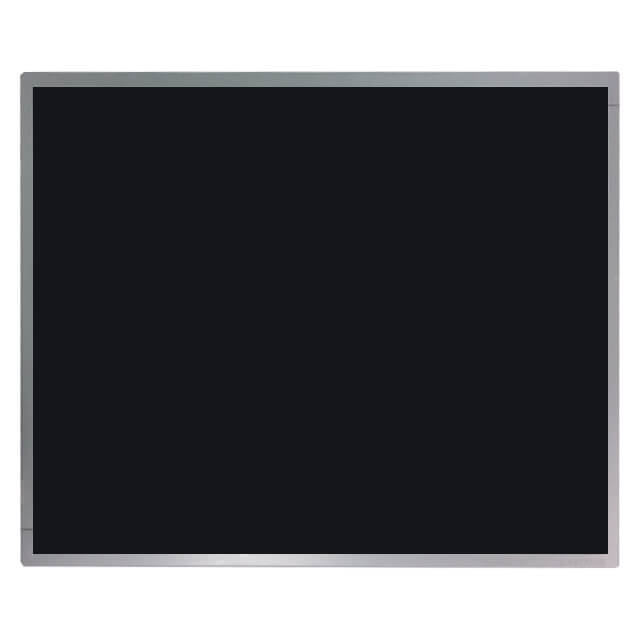

19 inch 1280x1024 30 Pins TFT LCD Display Screen LVDS interface for industrial or laptop

  • Part No.:ET190E0M-N10
  • Size:19″ inch
  • Resolution:1280x1024
  • Panel Interface:LVDS
  • Display mode:ADS
  • Outline Dimension:396x324x10.4
  • Active Area:374.784x299.827
  • Viewing Angle L/R/U/D:89/89/89/89
  • Brightness(cd/m2):250cd/m²
  • Operation / Storage Temp:-20~60°C / 0~50°C
  • Touch:no

ET190E0M-N10



Product size

19.0-inch

Type

LCM ,   a-Si TFT-LCD

Pixel Format

1280(RGB)×1024   (SXGA)  86PPI

Configuration

RGB Vertical Stripe

Active Area

374.784 × 299.827 (H×V)

Outline Dim.

396 × 324 × 10.4 (H×V×D)

Bezel Area

378.8 × 303.0 (H×V)

Treatment

Antiglare (Haze 25%), Hard coating (3H)

Luminance

250 cd/m² (Typ.)

Contrast Ratio

1000 : 1 (Typ.) (TM)

View Direction

Symmetry

Response Time

8/8 (Typ.)(Tr/Td); 14 (Typ.)(G to G) ms

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Operating Mode

ADS, Normally Black, Transmissive

Support Color

16.7M   72% NTSC

Light Source

2 strings WLED , 30K hours , No Driver

Weight

1.69Kgs (Typ.)

Designed For

Desktop Monitor Industrial

Frequency

60Hz

Touch Panel

Without

Interface Type

LVDS (2 ch, 8-bit) , 30 pins Connector

Power Supply

5.0V (Typ.)

Environment

Storage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
