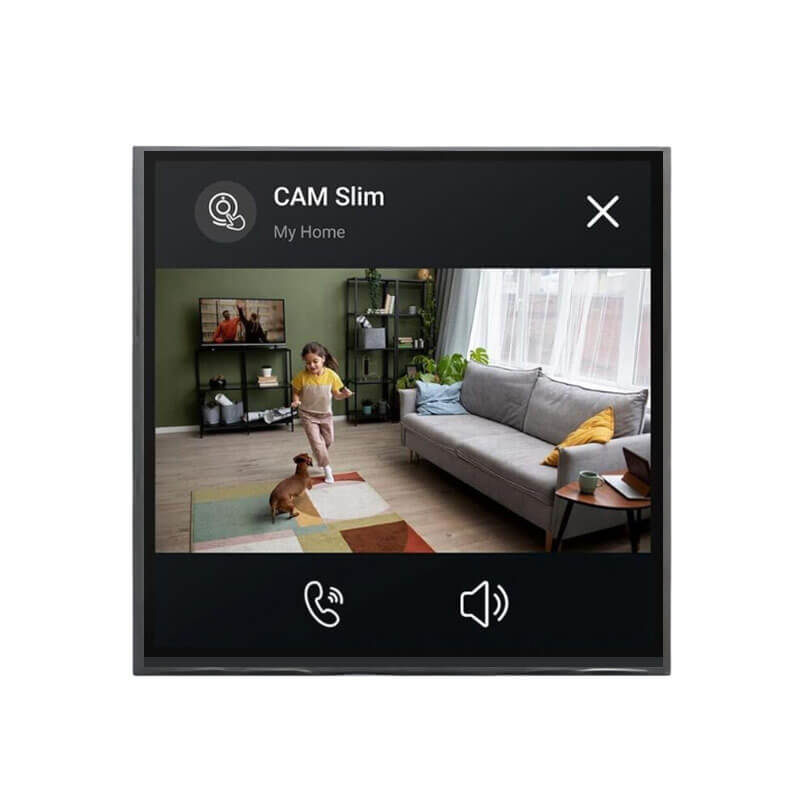

18.5 Inch Square Display IPS 1200x1200 LVDS 700nits High Brightness TFT LCD Display

Part No.:ET185SQ01-V
Size:18.5″ inch
Resolution:1200x1200
Panel Interface:LVDS
Display mode:Transmissive

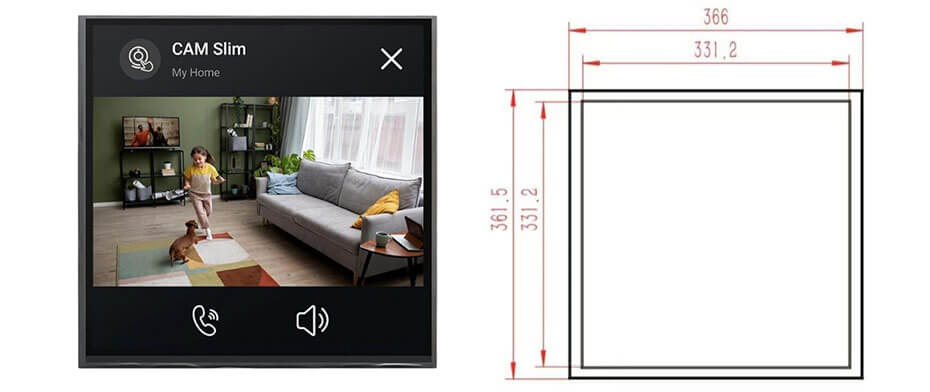

Outline Dimension:366x361.5mm
Active Area:331.2x331.2mm
Viewing Angle L/R/U/D:89/89/89/89
Brightness（cd/m2）:700(Typ.)
Operation / Storage Temp:0~50°C / -20~60°C
Touch:no

18.5 Inch Square Display Overview
ET185SQ01-V is an 18.5-inch diagonal square IPS TFT LCD display with a resolution of 1200×1200, featuring an LVDS interface. The display operates in transmissive mode and has an active area of 331.2(W)×331.2(H) mm, with an outline dimension of 366(W)×361.5(H) mm. ET185SQ01-V provides high brightness of 700 cd/m², wide viewing angles of 89° in all directions (L/R/U/D), and supports operation from 0 °C to 50 °C and storage from –20 °C to 60 °C. This model does not include touch functionality.
