16.8 Inch Stretched Bar Display 1366x378 IPS 800nits High Brightness LVDS TFT LCD Display

16.8 Inch Stretched Bar Display Overview

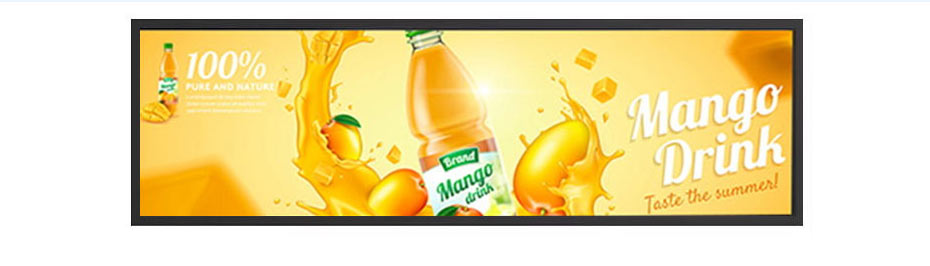

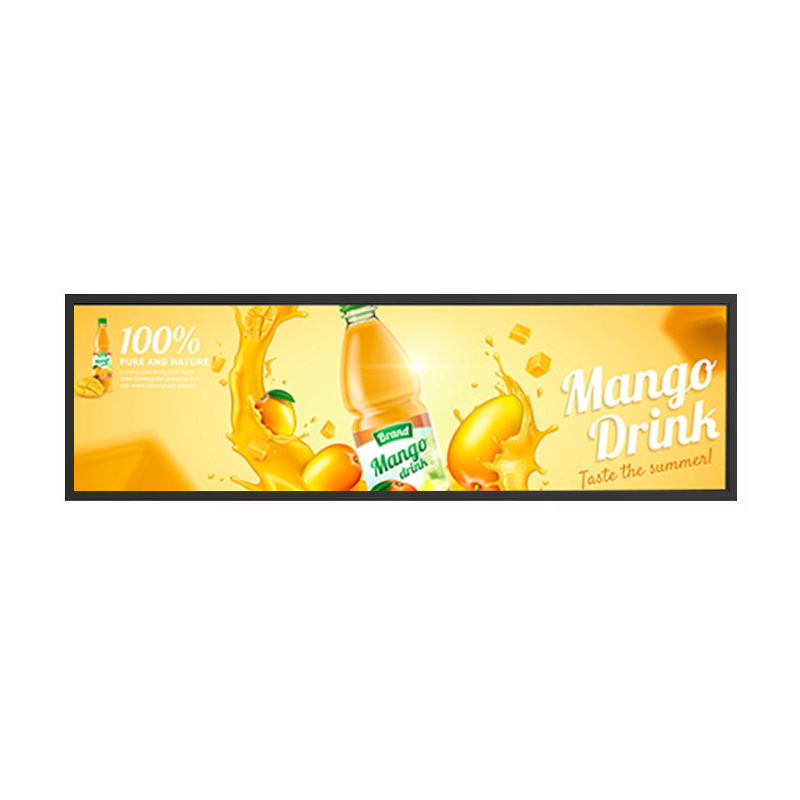

ET168BA01-RX is a 16.8-inch diagonal stretched bar TFT-LCD display product featuring a transmissive TN panel. It supports a 1366 × 378 resolution, providing a high-brightness wide-format display ideal for horizontal information presentation and graphical applications, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 409.8 (W) × 113.4 (H) mm and an outline dimension of 430.37 (W) × 137.6 (H) mm, allowing integration into elongated and space-efficient system designs. ET168BA01-RX adopts an LVDS interface (1 channel, 8-bit) and delivers a brightness of 800 cd/m², ensuring excellent visibility in well-lit environments. With wide viewing angles of 85° left/right and 80° up/down (L/R/U/D), it maintains consistent color and contrast from multiple viewing positions. The module is designed for reliable operation within a 0 to 50°C operating temperature range and a –20 to 60°C storage temperature range. This model does not support touch functionality and is suitable for applications such as industrial control panels, transportation displays, digital signage, and other wide-format embedded display solutions.

More 16.8 Inch Bar Displays For Reference
ET168BA01-RX (1366x378, LVDS, TN, 800nits, 0~50°C, 430.37x137.6mm)
ET168BA01-HT (1920x540, LVDS, IPS, 500nits, 0~50°C, 439.8x145.2mm)
