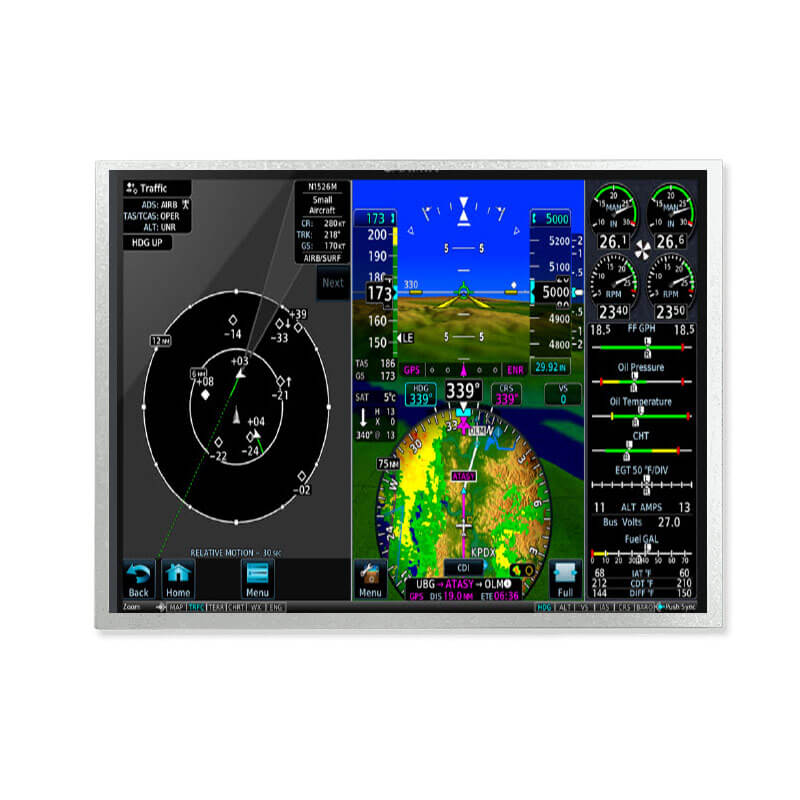

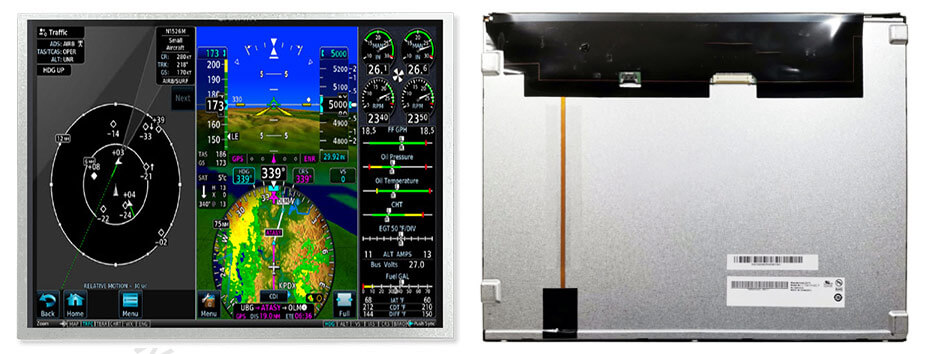

15 Inch TFT LCD Display 1024×768 LVDS High Brightness Wide Temperature Display G150XAN02.2 For Aerospace Display

15 Inch TFT LCD Display 1024×768 LVDS High Brightness Wide Temperature Display G150XAN02.2 For Aerospace Display Video

15 Inch TFT LCD Display 1024×768 LVDS High Brightness Wide Temperature Display G150XAN02.2 For Aerospace Display Overview

G150XAN02.2 is a 15.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. G150XAN02.2 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×9.8(D) mm, viewing area size of 309.9(W)×236.36(H) mm, with surface treament of Hard coating (3H), Antireflection, net weight of 950g (Max.). As a AHVA, Normally Black, Transmissive LCM product, G150XAN02.2 can provides 1800 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 60% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G150XAN02.2 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

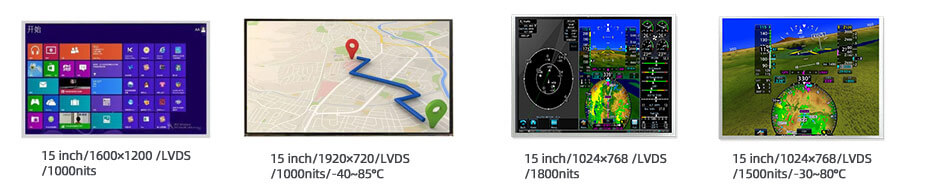

More 15 Inch Aerospace Display For Reference
TM150XDHG01 (1600×1200, LVDS, 1000nits, -30~70°C, 318.7×242.5mm)
TX38D203VM0BAA (1920×720, LVDS, 1000nits, -40~85°C, 374.5×154.5mm)
G150XAN02.2 (1024×768, LVDS, 1800nits, -30~70°C, 326.5×253.5mm)
DV150X0M-N17 (1024×768, LVDS, 1500nits, -30~80°C, 326.5×253.5mm)

Key Features of Aerospace, Cockpit and Flight Displays

Advanced Super View Display Technology:
-Superior brightness and contrast
-Wide viewing angles, high resolution, anti-reflective/anti-glare coatings
-High resolution for clear visibility in all conditions

Durability and Longevity:
-Resistant to shock, vibration, and moisture
-Built to meet IP67, Operates in extreme temperatures (e.g., -55°C to +85°C)

Custom Integration:
-Tailored solutions for specific application needs
-Custom sizes, shapes, and interface options
-Seamless integration with existing systems

Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance

Regulatory Compliance:
-Adherence to stringent aerospace and automotive standards
-Certifications ensuring safety and reliability

High Reliability:
-All Industrial-grade components for consistent performance
-Rigorous testing to meet industry demands

Applications For Aerospace Displays

Commercial Aviation
-Primary Flight Displays (PFD)
-Navigation Displays
-Engine Indication and Crew Alerting System (EICAS)
-Interactive touchscreens for flight management and Electronic Flight Bag (EFB) functions

Military & Defense
-Mission computers
-Tactical moving maps
-Sensor feeds (radar/FLIR)
-Flight data in fighters
-Helicopters
-Transport aircraft

Business & General Aviation
-"Glass cockpit" retrofits that replace old CRT screens and analog gauges, moving maps
-Terrain awareness systems (SVS)
-Flight management systems
