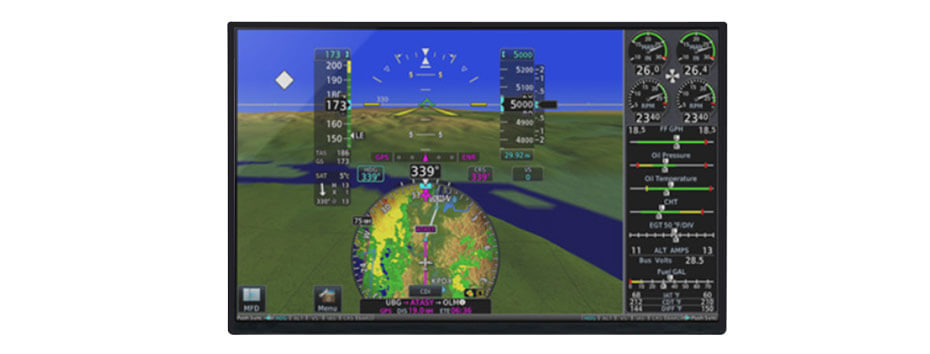

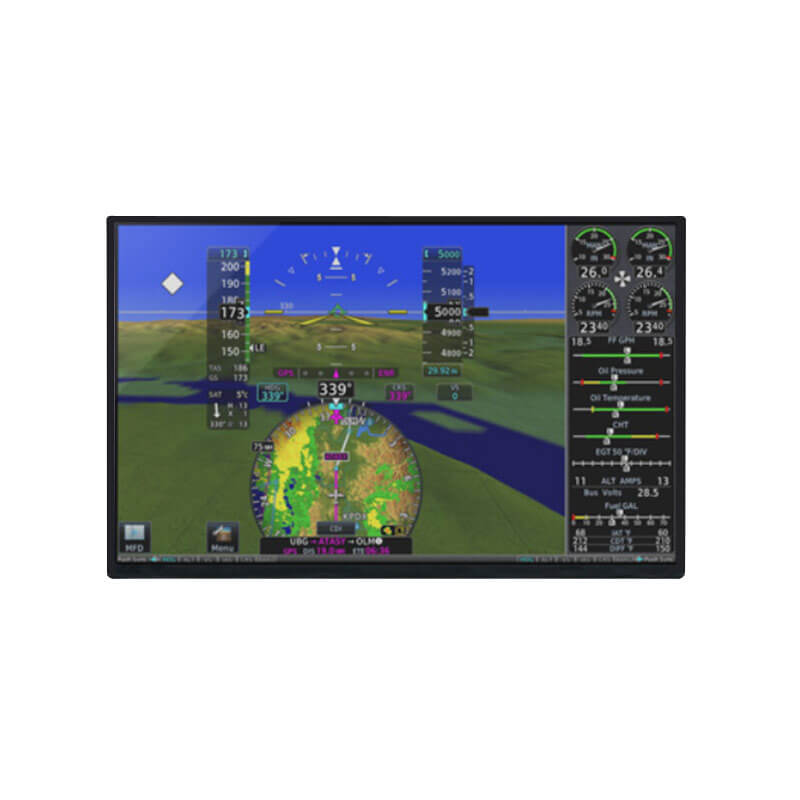

14.6 Inch TFT LCD Display 1920×1080 LVDS High Brightness Wide Temperature Display With In-Cell Touch AS146FHT-L14-68P2 For Aerospace Display

14.6 Inch TFT LCD Display 1920×1080 LVDS High Brightness Wide Temperature Display With In-Cell Touch AS146FHT-L14-68P2 For Aerospace Display Vide

14.6 Inch TFT LCD Display 1920×1080 LVDS High Brightness Wide Temperature Display With In-Cell Touch AS146FHT-L14-68P2 For Aerospace Display Overview

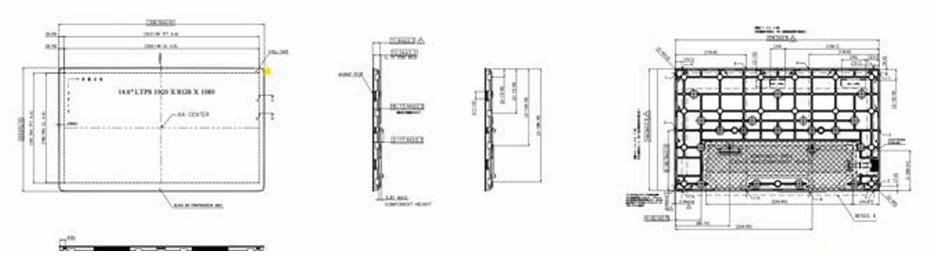

AS146FHT-L14-68P2 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 323.136(W)×181.764(H) mm, outline size of 339.72(W)×203.97(H)×17.74(D) mm, with surface treament of Anti Fingerprint + Antiglare, Hard coating (3H), Antireflection, net weight of 1.20±0.02Kgs. As a ADS, Normally Black, Transmissive Assembly product, AS146FHT-L14-68P2 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 11S4P WLED as it's backlight systerm which was placed as Direct light type and have a working life time of 40K hours, external backlight driver is additionally needed. AS146FHT-L14-68P2 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Key Features of Aerospace, Cockpit and Flight Displays

Advanced Super View Display Technology:
-Superior brightness and contrast
-Wide viewing angles, high resolution, anti-reflective/anti-glare coatings
-High resolution for clear visibility in all conditions

Durability and Longevity:
-Resistant to shock, vibration, and moisture
-Built to meet IP67, Operates in extreme temperatures (e.g., -55°C to +85°C)

Custom Integration:
-Tailored solutions for specific application needs
-Custom sizes, shapes, and interface options
-Seamless integration with existing systems

Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance

Regulatory Compliance:
-Adherence to stringent aerospace and automotive standards
-Certifications ensuring safety and reliability

High Reliability:
-All Industrial-grade components for consistent performance
-Rigorous testing to meet industry demands

Applications For Aerospace Displays

Commercial Aviation
-Primary Flight Displays (PFD)
-Navigation Displays
-Engine Indication and Crew Alerting System (EICAS)
-Interactive touchscreens for flight management and Electronic Flight Bag (EFB) functions

Military & Defense
-Mission computers
-Tactical moving maps
-Sensor feeds (radar/FLIR)
-Flight data in fighters
-Helicopters
-Transport aircraft

Business & General Aviation
-"Glass cockpit" retrofits that replace old CRT screens and analog gauges, moving maps
-Terrain awareness systems (SVS)
-Flight management systems
