10.2"-17.3" LCD Display (15")

15 Inch High Brightness Display 1050nits 1600x1200 LVDS Wide Temperature TFT LCD Display

Part No.:ET150WU01-LP
Size:15″ inch
Resolution:1600x1200
Panel Interface:LVDS
Display mode:Transmissive
Outline Dimension:318.7x242.65mm
Active Area:304.8x228.6mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:1050(Typ.)
Operation / Storage Temp:-30~70°C / -40~80°C
Touch:no

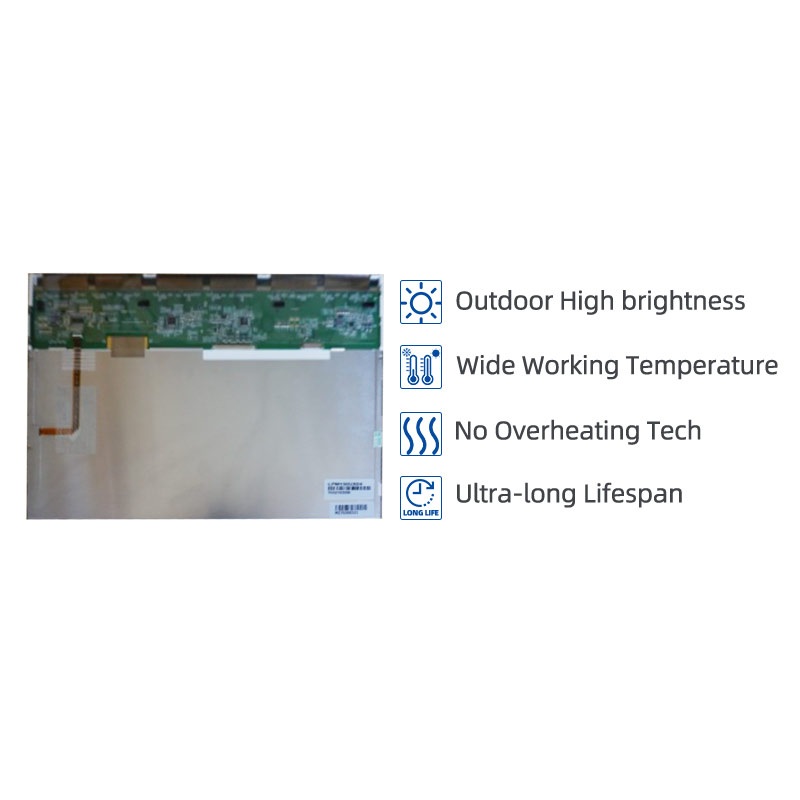

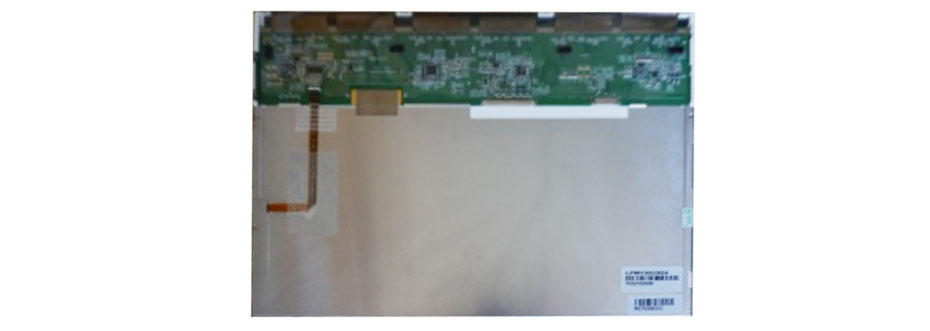

15 Inch High Brightness LCD Display Overview
15 Inch High Brightness Display 1050nits 1600x1200 LVDS Wide Temperature TFT LCD Display.

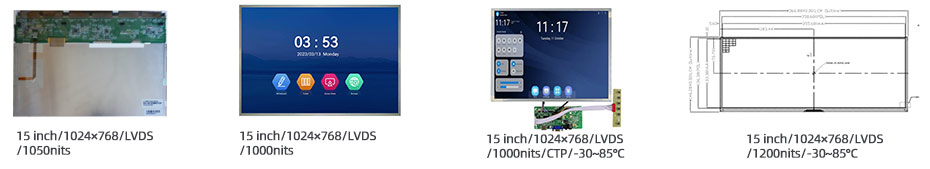

More 15 Inch High Brightness Display For Reference
ET150WU01-LP (1600x1200, LVDS, 1050nits, -30~70°C, 318.7x242.65mm)
ET150WX01-R (1024x768, LVDS, 1000nits, -20~70°C, 37.4x231.3mm)
ET150WX01-ZKT (1024x768, LVDS, 1000nits, -30~85°C, 326.5x253.5mm, CTP)
ET150BA01-GL (1920x720, LVDS, 1200nits, -30~85°C, 366.88x146.28mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
