14.9 Inch High Brightness LCD Display Overview

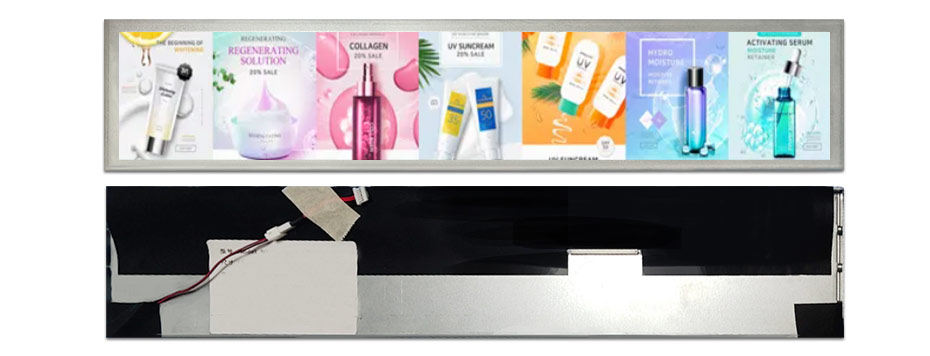

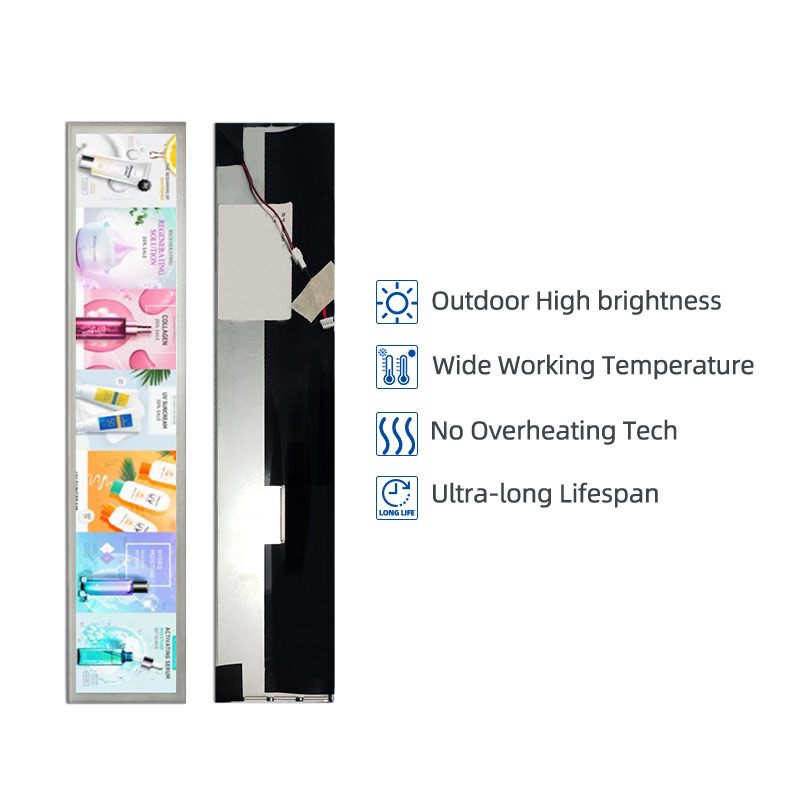

ET149BA01-R is a 14.9-inch high-brightness TFT LCD display with a transmissive structure and LVDS interface. It supports a resolution of 1024 × 273 and offers wide viewing angles of 89° in all directions. The panel delivers a typical brightness of 700 cd/m², making it suitable for applications requiring enhanced visibility. It features an active area of 374.78 × 60.0 mm and an outline dimension of 399.78 × 81.0 mm. The display operates reliably within a temperature range of 0 to 50 °C, supports storage temperatures from −20 to 60 °C, and does not include touch functionality.
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
