6"-15.6" Touch Screen (14")

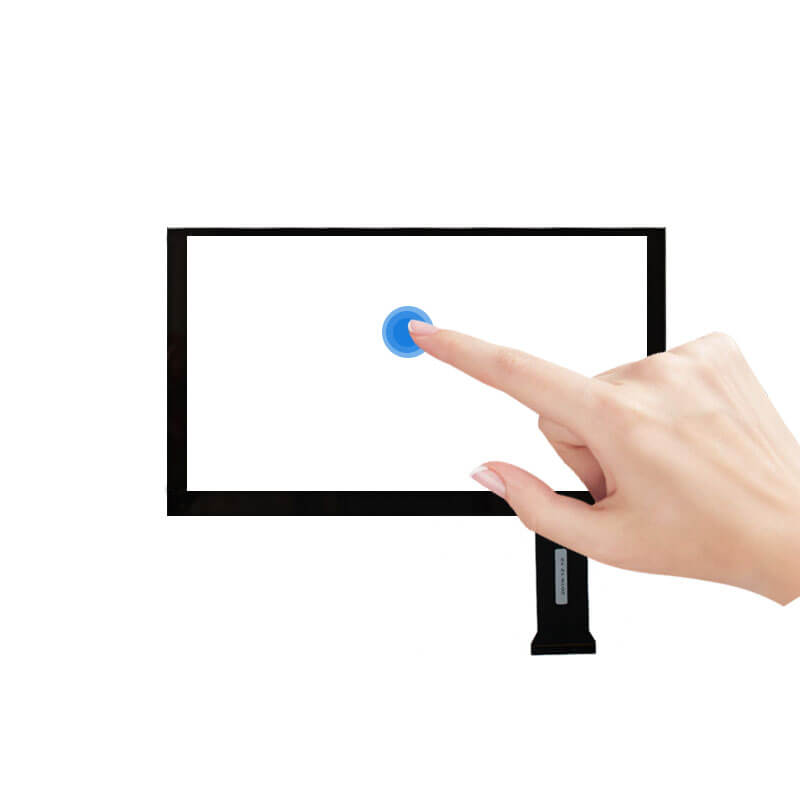

14 Inch Capacitive Touch Screen G+G Multi-touch Display For Industrial Display Tablet Computer Embedded Self-service Inquiry Machine

  • Part No.:ET140CTP02
  • Size:14″ inch
  • Resolution:Optional
  • Panel Interface:USB,I2C
  • Display mode:PCAP
  • Outline Dimension:321.4x192.5mm
  • Active Area:310.74x175.49mm
  • Viewing Angle L/R/U/D:Full view
  • Brightness（cd/m2）:Optional
  • Operation / Storage Temp:-20~70°C / -30~80°C
  • Touch:yes
Get a quote



14 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: USB,I2C

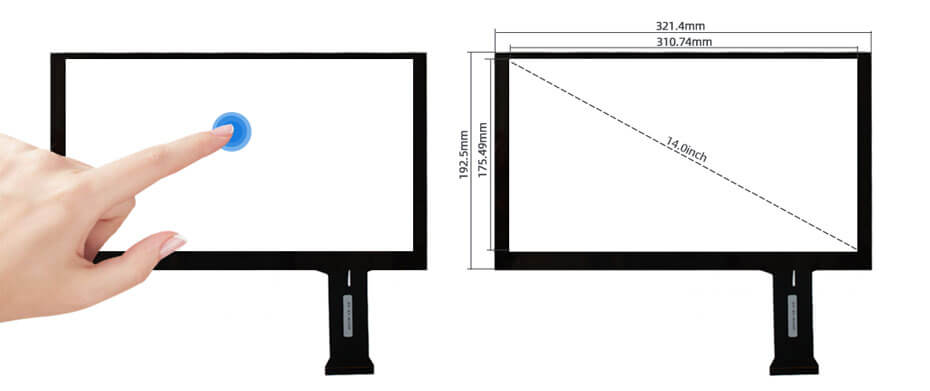

Display Area: 310.74x175.49 mm
Outline Dim.: 321.4x192.5 mm
Operation Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80°C

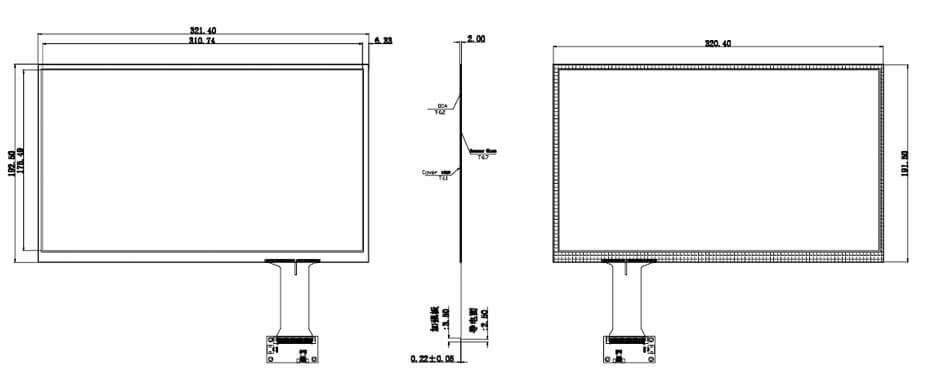

14 Inch Capacitive Touch Screen Drawing





The touch screens can be matched and integrated by all kinds of display panels



SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS

No specification brief is filled in!
