13.8 Inch Stretched Bar Display 1280x320 IPS 500nits High Brightness LVDS TFT LCD Display

13.8 Inch Stretched Bar Display Overview

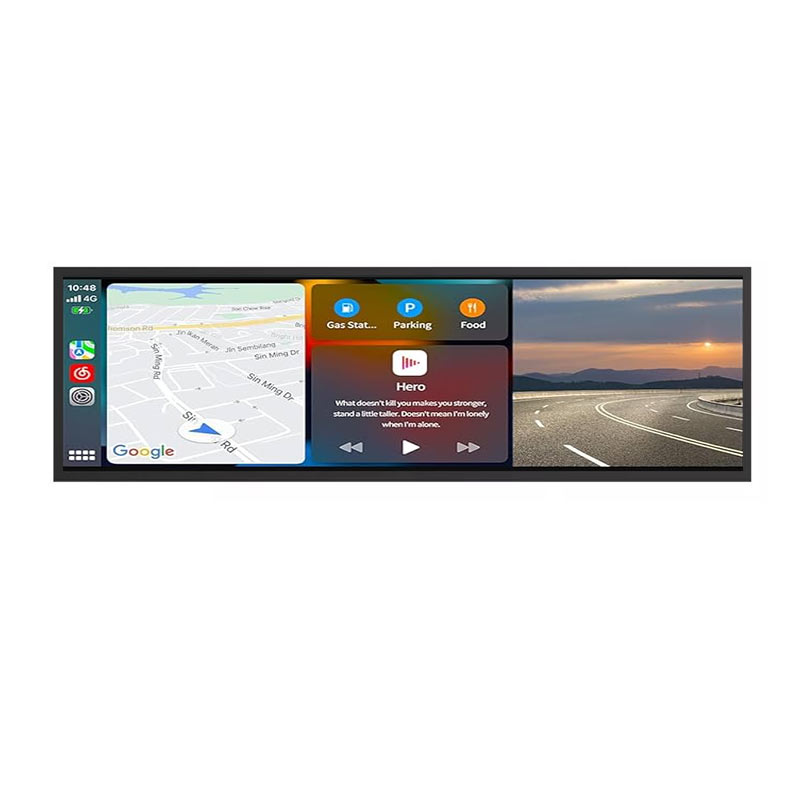

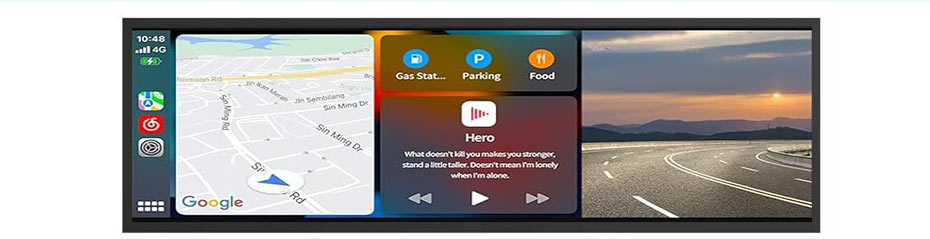

ET138BA01-YX is a 13.8-inch stretched bar TFT LCD display with a resolution of 1280×320, featuring an IPS panel and transmissive display mode. It adopts an LVDS interface and provides an active area of 337.92 × 90 mm within an outline dimension of 357 × 110 mm. The display offers a typical brightness of 500 cd/m², wide viewing angles of 85° left/right and 80° up/down, and operates reliably from 0 to 50 °C (storage −20 to 60 °C), with no touch support.

More 13.8 Inch Bar Displays For Reference
ET138BA01-IL (1366x256, LVDS, IPS, 500nits, 0~50°C, 375x95mm)
ET138BA01-YX (1280x320, LVDS, IPS, 500nits, 0~50°C, 357x110mm)

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
