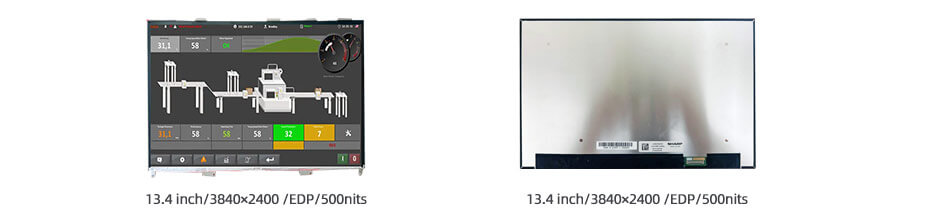

13.4 Inch 4K LCD Display 3840x2400 High Brightness 500nits eDP IPS LCD Module For Digital Signage

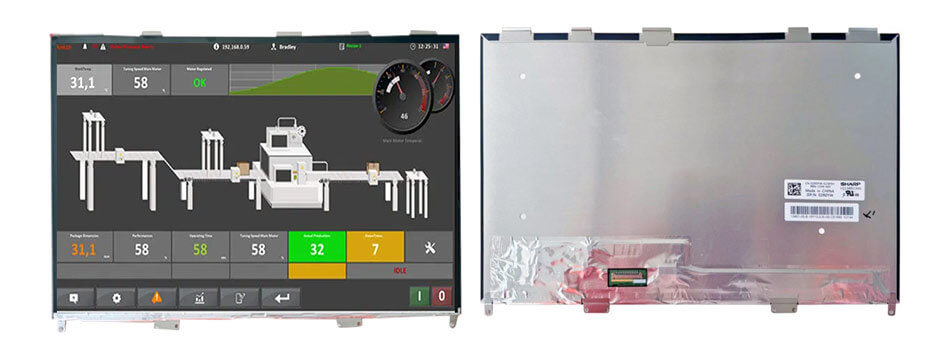

13.4 Inch 3840x2400 Display Overview
LQ134R1JX41 supports display 3840(RGB)×2400 (WQUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 338 PPI. As for mechanical detail, it features active area of 288(W)×180(H) mm, with surface treament of Glare (Haze 0%), Hard coating, net weight of 193/208g (Typ./Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a New Mode2, Normally Black, Transmissive LCM product, LQ134R1JX41 can provides 500 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LQ134R1JX41 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).

More 13.4 Inch 4k Display For Reference
LQ134R1JX41 (LCM, 3840x2400, eDP, 500nits, 0~50°C, 291.88x0mm)
LQ134R1JW52 (LCM, 3840x2400, eDP, 500nits, 0~50°C, 293.6x189.6mm)
