6"-15.6" Touch Screen (13.3")

13.3 Inch Capacitive Touch Screen 16:9 USB Multi-touch Display For Human-machine Industrial Medical Military

Part No.:ET133CTP02
Size:13.3″ inch
Resolution:Optional
Panel Interface:USB
Display mode:PCAP
Outline Dimension:323.4x195mm
Active Area:293.4x165mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~60°C / -30~70°C
Touch:yes

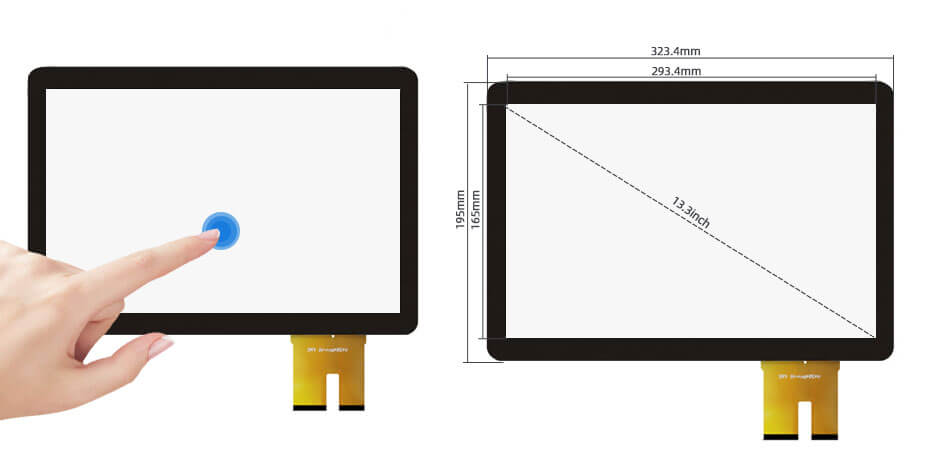

13.3 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: USB
Display Area: 293.4x165 mm
Outline Dim.: 323.4x195 mm
Operation Temperature: -20 ~ 60°C
Storage Temperature: -30 ~ 70°C

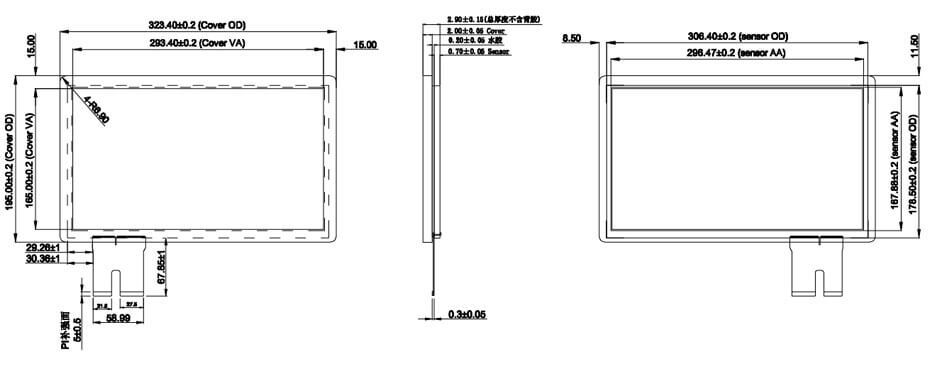

13.3 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
