6"-15.6" Touch Screen (12.8“)

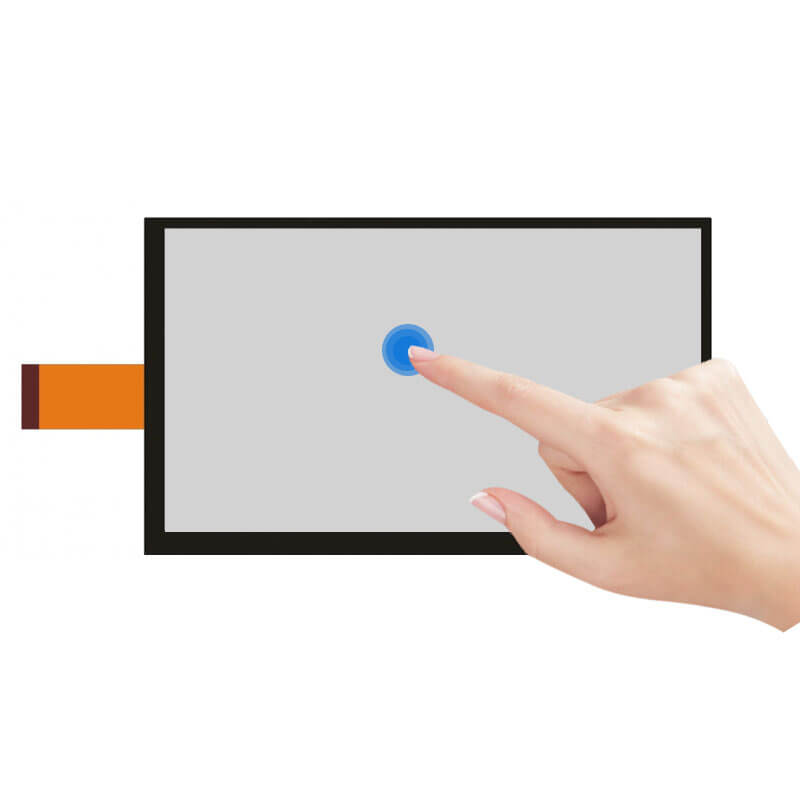

12.8 Inch Capacitive Touch Screen G+G Multi-touch Industrial Grade Capacitive Screen For AV128FHM-NV0

Part No.:ET128CTP01
Size:12.8″ inch
Resolution:Optional
Panel Interface:I2C,USB,RS232
Display mode:PCAP

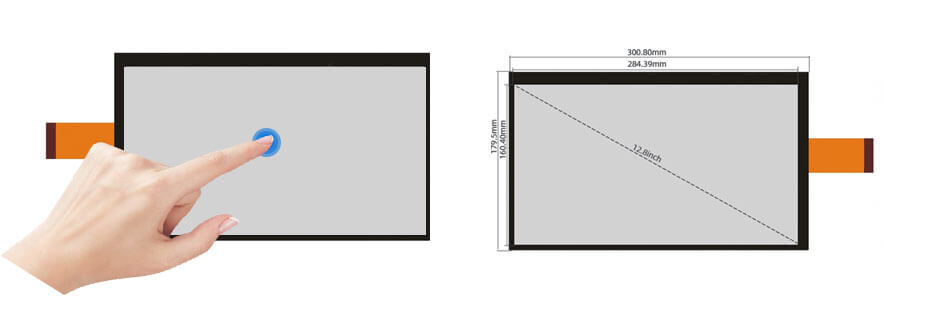

Outline Dimension:300.8x179.5mm
Active Area:284.39x160.4mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-40~85°C / -45~95°C
Touch:yes

12.8 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: I2C,USB
Display Area: 284.39x160.4 mm
Outline Dim.: 300.8x179.5 mm
Operation Temperature: -40 ~ 85°C
Storage Temperature: -45 ~ 95°C

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)
