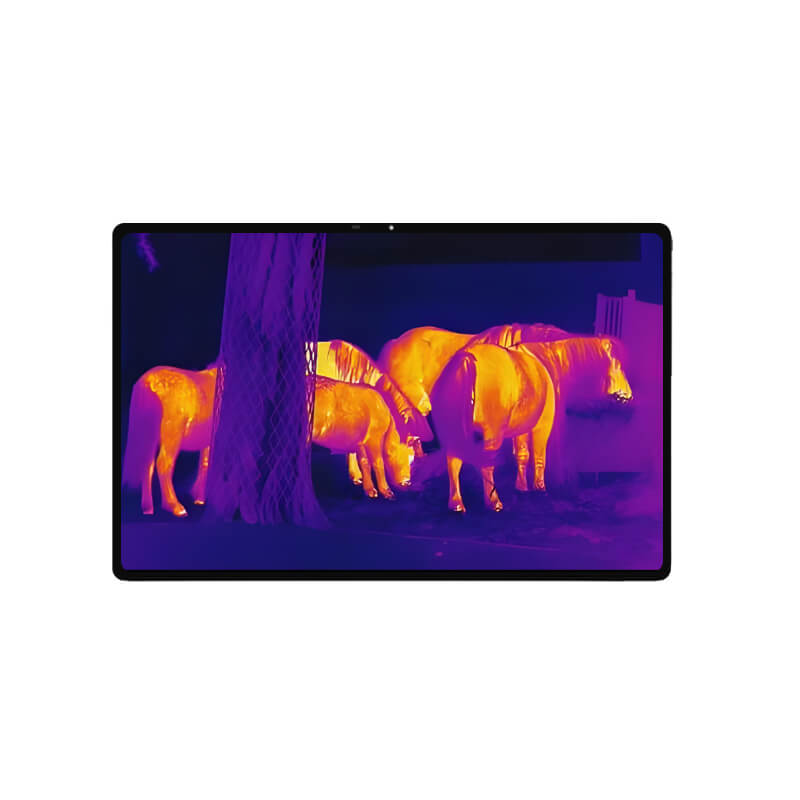

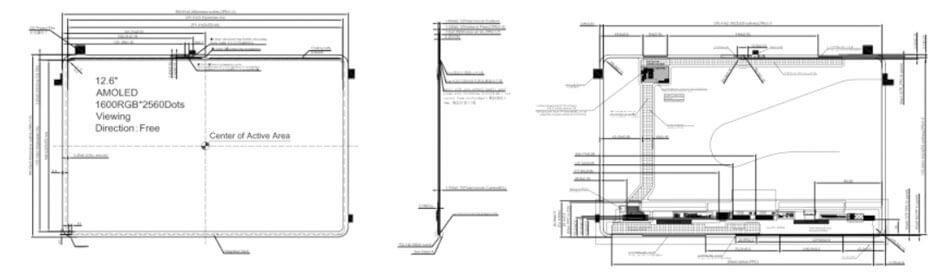

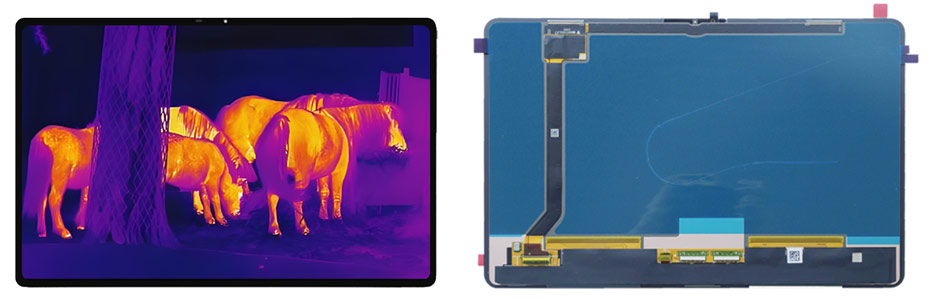

12.6 Inch OLED Display 1600×2560 MIPI AMOLED Display With Capacitive Touch for Measuring Rangefinder Display Solution OverviewET126AM01-F is a 12.6-inch AMOLED display featuring a high resolution of 1600×2560 and a MIPI interface, designed for industrial equipment and measuring instruments. With a typical brightness of 400 cd/m², it delivers detailed visuals for applications requiring clear data presentation and precise image reproduction. The OLED panel supports 65K/262K colors and wide 80° viewing angles in all directions, providing consistent visibility across different viewing positions. Equipped with a PCAP capacitive touch panel, this AMOLED display enables responsive touch operation and intuitive interaction with measurement data and control interfaces. Driven by the RM690B0 controller and featuring a 51-pin MIPI interface, it supports integration into advanced industrial display systems. Its ultra-slim 1.659 mm maximum depth allows for space-efficient device designs, while the operating temperature range of -20°C to 70°C supports use in various industrial environments. The ET126AM01-F is a high-resolution touch display solution for measuring rangefinders, industrial instruments, and other equipment requiring a large, detailed screen.
High Visibility
-High-contrast display technology ensures clear measurement data in both bright outdoor and low-light indoor conditions.
Low Power Consumption
-Energy-efficient display solutions help extend battery life for portable measuring devices.
Compact Design
-Slim and lightweight display modules enable easy integration into handheld rangefinders with limited installation space.
Multiple Display Technologies
-Available in OLED, TFT LCD, and monochrome LCD options to meet different application requirements.
Flexible Interface Options
-Support for SPI, I²C, MCU, RGB, MIPI, and other interfaces simplifies hardware integration.
Wide Operating Temperature
-Designed to operate reliably in harsh industrial and outdoor environments.
Excellent Viewing Performance
-Wide viewing angles provide clear visibility from different directions for improved user experience.
Custom Display Solutions
-Custom sizes, resolutions, brightness, touch panels, cover glass, and interface configurations are available to match specific project requirements.
Long-Term Supply
-Stable production and long product lifecycle support industrial and professional equipment manufacturers.
Laser Rangefinders
-Display real-time distance measurements, target information, battery status, and operating modes.
Golf Rangefinders
-Provide clear yardage readings and measurement data for enhanced on-course performance.
Hunting Rangefinders
-Ensure high-contrast visibility in various lighting conditions for outdoor use.
Construction Measuring Tools
-Display distance, area, volume calculations, and measurement settings for professional construction applications.
Surveying Instruments
-Support accurate data presentation in total stations, laser measuring devices, and field surveying equipment.
Industrial Measuring Equipment
-Deliver stable display performance for precision measurement, inspection, and automation systems.
Optical Measuring Devices
-Present measurement values and system information with high clarity for optical instruments.
Portable Test & Measurement Instruments
-Ideal for handheld electronic measuring devices that require compact size, low power consumption, and reliable operation.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
