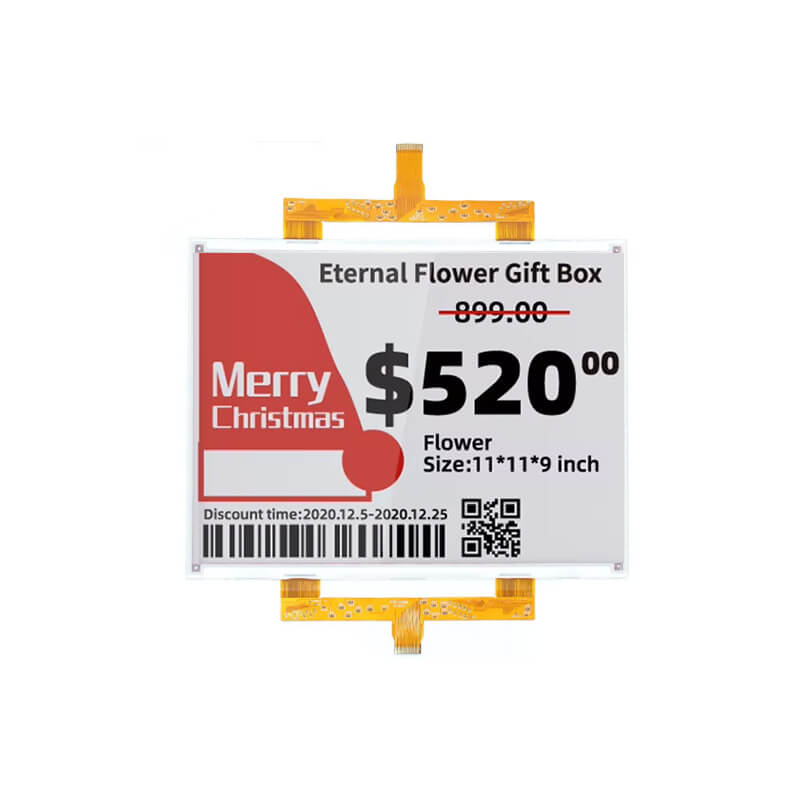

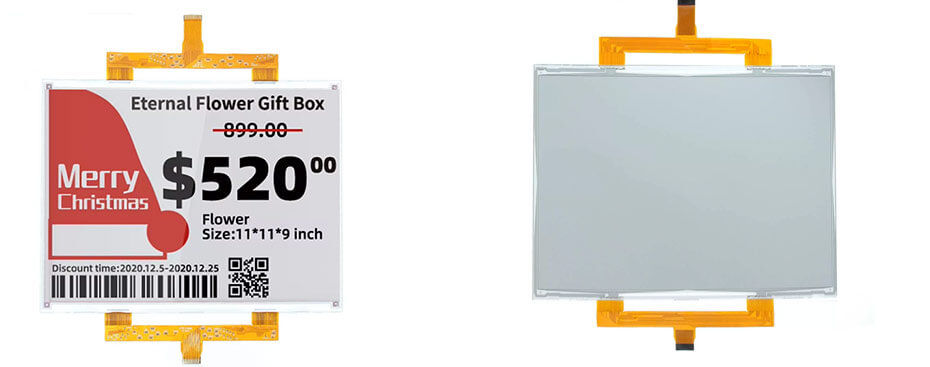

12.48 Inch Black White Red E-Paper Display 1304×984 SPI E-Ink Screen for Raspberry Pi

12.48 Inch Black White Red E-Paper Display 1304×984 SPI E-Ink Screen for Raspberry Pi Overview

ET125EP01-J is a 12.48-inch diagonal E-Paper display module featuring three-color E-Ink technology with black, white, and red display capabilities. ET125EP01-J supports a resolution of 1304×984 and adopts an SPI interface with EPD display mode, making it suitable for integration with platforms such as Raspberry Pi. It features an active area of 252.98(W)×190.90(H) mm and an outline size of 261.4(W)×211(H)×1.20(D) mm. The module operates within a temperature range of 0°C to 40°C and supports a storage temperature range of -25°C to 60°C. ET125EP01-J does not include a touch panel and is designed for large-size, low-power E-Paper applications requiring clear three-color content display.

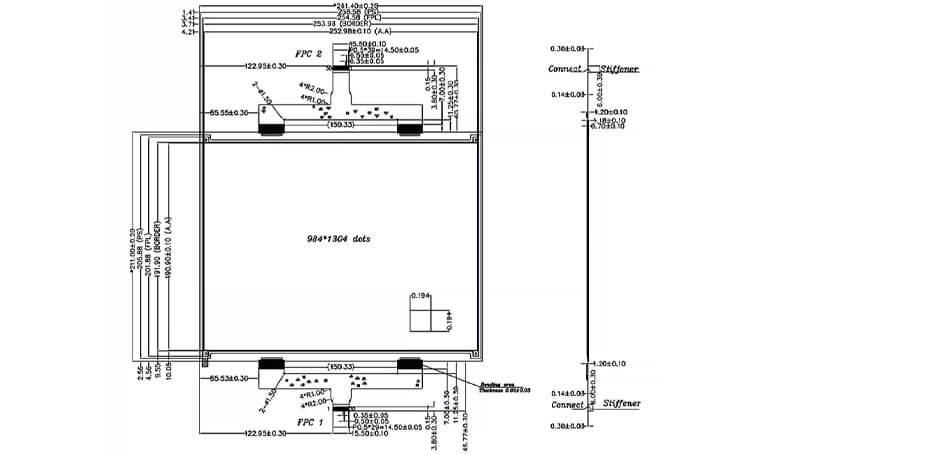

12.48 Inch Black White Red E-Paper Display Drawing

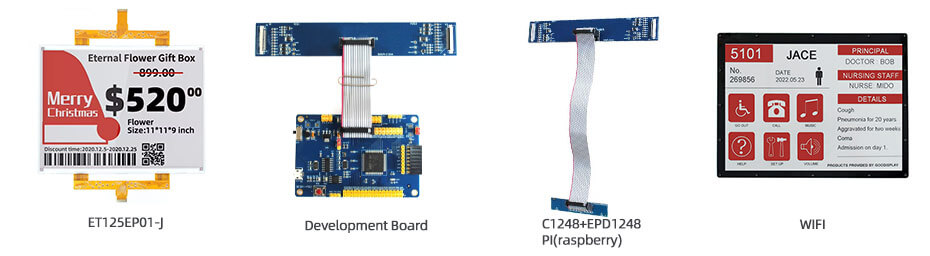

12.48 Inch E Ink Display Solution For Reference
ET125EP01-J
Development Board
C1248+EPD1248_PI(raspberry)
WIFI

Features For Youritech E-Paper Display

Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.

-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
