11.6 Inch Four-Color E-Paper Display 960×640 SPI E-Ink Screen

11.6 Inch Four-Color E-Paper Display 960×640 SPI E-Ink Screen Overview

ET116EP01-J is an 11.6-inch diagonal E-Paper display module featuring four-color E-Ink technology. ET116EP01-J supports a resolution of 960×640 and adopts an SPI interface with EPD display mode. It features an active area of 244.51(W)×163.01(H) mm and an outline size of 254.31(W)×176.35(H)×1.0(D) mm. The module operates within a temperature range of 0°C to 40°C and supports a storage temperature range of -25°C to 70°C. ET116EP01-J does not include a touch panel and is designed for large-size, low-power E-Paper applications requiring clear four-color image display.

11.6 Inch Four-Color E-Paper Display Drawing

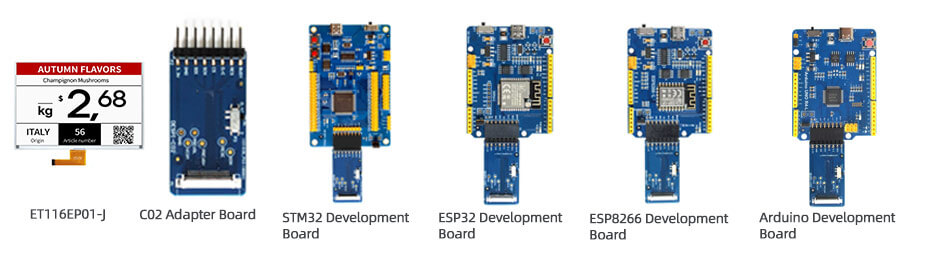

11.6 Inch E Ink Display Solution For Reference
ET116EP01-J
C02 Adapter Board
STM32 Development Board
ESP32 Development Board
ESP8266 Development Board
Arduino Development Board

Features For Youritech E-Paper Display

Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.

-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
