10.2"-17.3" LCD Display (12.3")

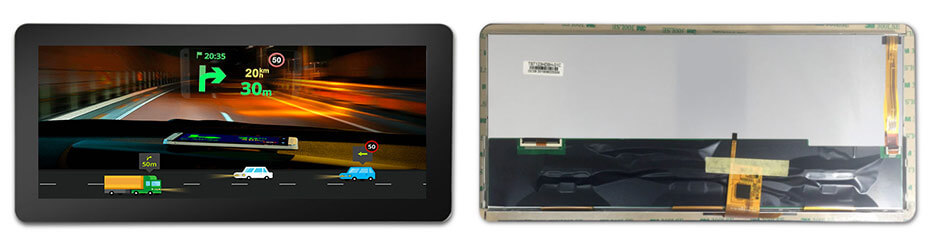

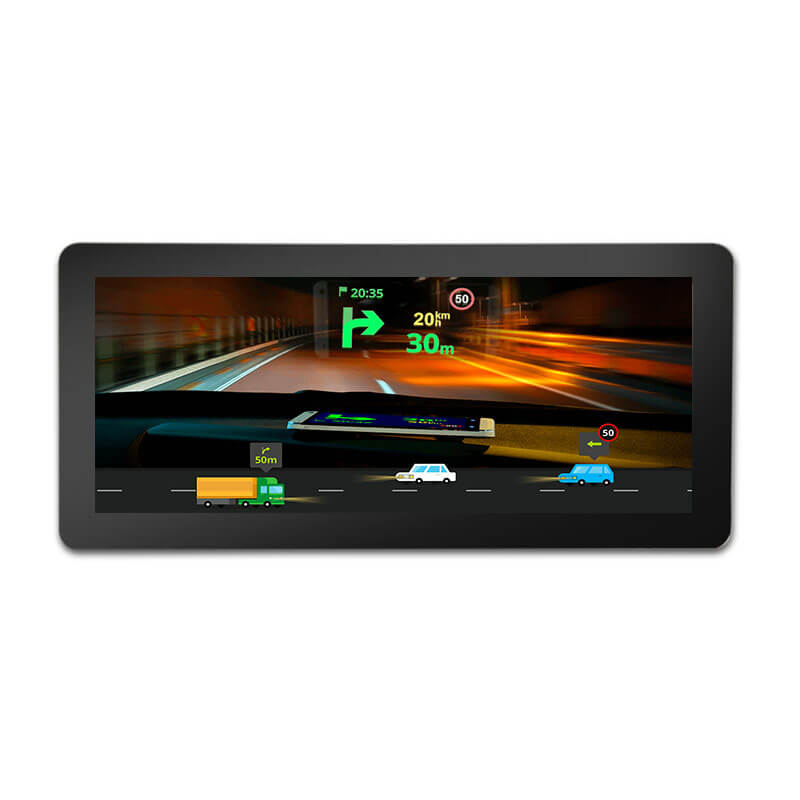

12.3 Inch Wide Temperature LCD Display 1920×720 LVDS -30°C to 85°C High Brightness 800nits TFT LCD Display With Capacitive Touch

  • Part No.:ET123BA01-TST
  • Size:12.3″ inch
  • Resolution:1920x720
  • Panel Interface:LVDS
  • Display mode:Transmissive

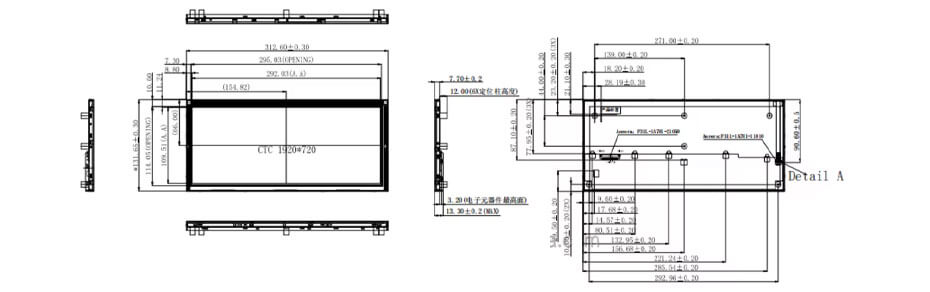

  • Outline Dimension:332x149.5mm
  • Active Area:292.03x109.51mm
  • Viewing Angle L/R/U/D:85/85/85/85
  • Brightness(cd/m2):800nits
  • Operation / Storage Temp:-30~85°C / -40~90°C
  • Touch:yes


12.3 Inch Wide Temperature LCD Display Overview
12.3 Inch Wide Temperature LCD Display 1920×720 LVDS -30°C to 85°C High Brightness 800nits TFT LCD Display With Capacitive Touch.

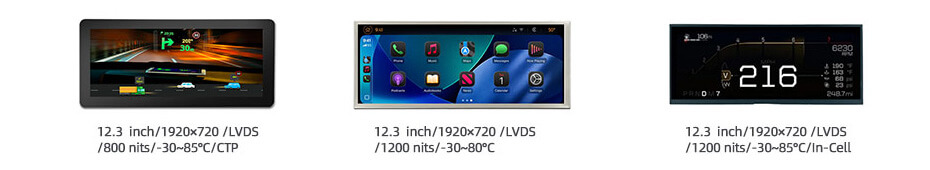

More 12.3 Inch Wide Temperature Displays For Reference
ET123BA01-TST (LCD
, 1920×720, LVDS, IPS, 800nits, -30~85°C, 332×149.5mm, CTP)
ET123BA10-T (LCD, 1920×720, LVDS, IPS, 1200nits, -30~80°C, 310×128mm)
ET123BA01-AP (LCD, 1920×720, LVDS, IPS, 1200nits, -30~85°C, 302.06×125.46mm, In-Cell Touch)


Wide Temperature Displays Technology


YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options


Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.


Youritech Production and Manufacturing

X
youritech

At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
