10.2"-17.3" LCD Display (12.1")

12.1 Inch Wide Temperature LCD Display 1024×768 LVDS -30°C to 85°C High Brightness 600nits TFT LCD Display With Capacitive Touch

  • Part No.:ET121WX01-G
  • Size:12.1″ inch
  • Resolution:1024x768
  • Panel Interface:LVDS
  • Display mode:Transmissive

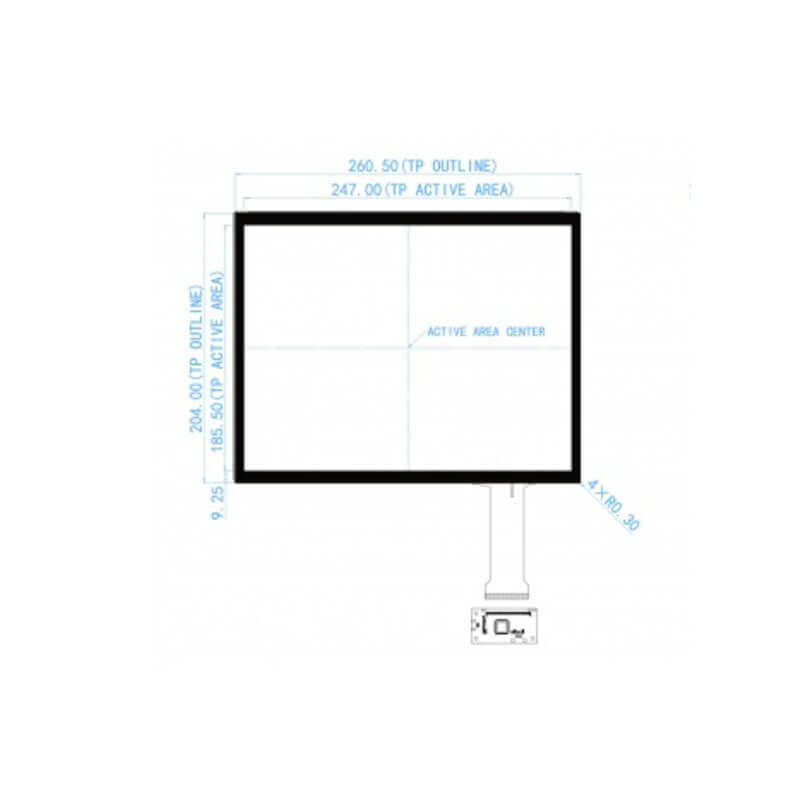

  • Outline Dimension:260.56x204mm
  • Active Area:245.76x184.32mm
  • Viewing Angle L/R/U/D:89/89/89/89
  • Brightness(cd/m2):600nits
  • Operation / Storage Temp:-30~85°C / -40~90°C
  • Touch:no


12.1 Inch Wide Temperature LCD Display Overview
12.1 Inch Wide Temperature LCD Display 1024×768 LVDS -30°C to 85°C High Brightness 600nits TFT LCD Display With Capacitive Touch.


More 12.1 Inch Wide Temperature Displays For Reference
ET121WX01-RS (LCD
, 1280×800, LVDS, IPS, 1500nits, -30~80°C, 283×185.1mm)
ET121WX01-GL (LCD, 1280×800, LVDS, IPS, 1000nits, -30~80°C, 278×184mm, CTP)
ET121WU01-RX (LCD, 1920×860, LVDS, IPS, 700nits, -30~85°C, 291.7×144.9mm)
ET121WX01-G (LCD, 1024×768, LVDS, IPS, 600nits, -30~85°C, 260.56×204mm, CTP)


Wide Temperature Displays Technology


YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options


Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
