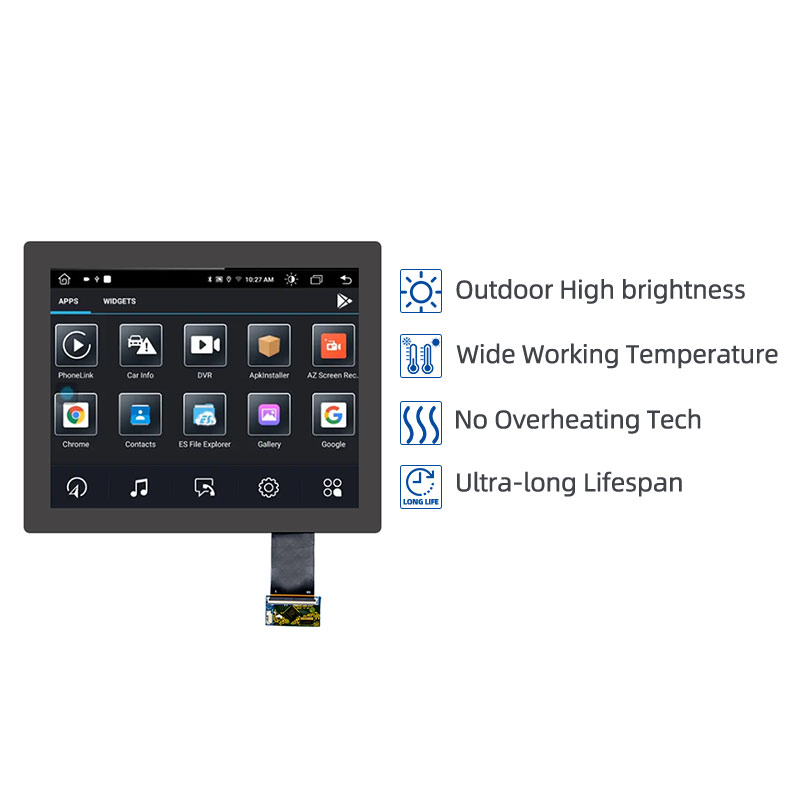

12.1 Inch High Brightness LCD Display Overview
ET121WX01-HT is a 12.1-inch high-brightness TFT LCD display with a 1024 × 768 resolution in transmissive mode. It features an LVDS interface and capacitive touch functionality. The display offers a typical brightness of 900 cd/m² with wide 85° viewing angles in all directions. It has an active area of 245.76 × 184.32 mm and an outline dimension of 286.5 × 225 mm, supporting operation from −20 to 70 °C and storage from −30 to 80 °C.

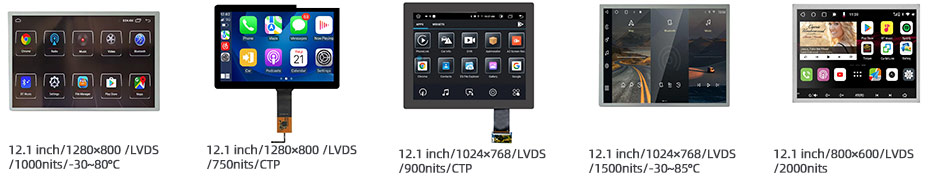

More 12.1 Inch High Brightness Display For Reference
ET121WX01-R (1280x800, LVDS, 1000nits, -30~80°C, 283x185.1mm)
ET121WX02-TT (1280x800, LVDS, 750nits, -20~70°C, 293.66x198.66mm, CTP)
ET121WX01-HT (1024x768, LVDS, 900nits, -20~70°C, 286.5x225mm, CTP)
ET121WX02-R (1024x768, LVDS, 1500nits, -30~85°C, 260.5x204mm)
ET121DH01-H (800x600, LVDS, 2000nits, -30~80°C, 260.5x204mm)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
