10.2"-17.3" LCD Display (12.1")

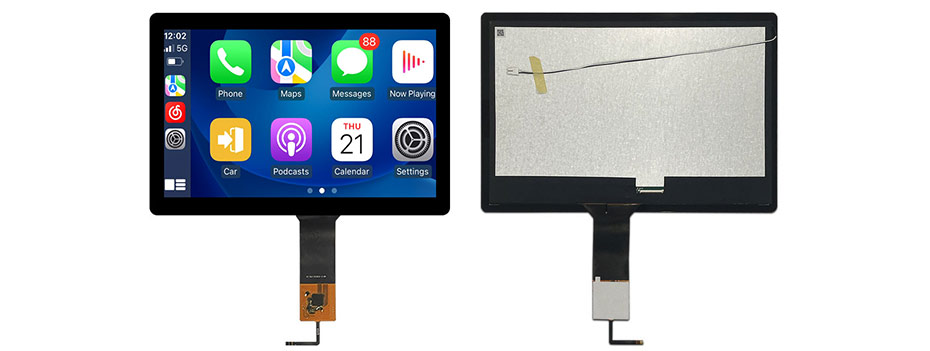

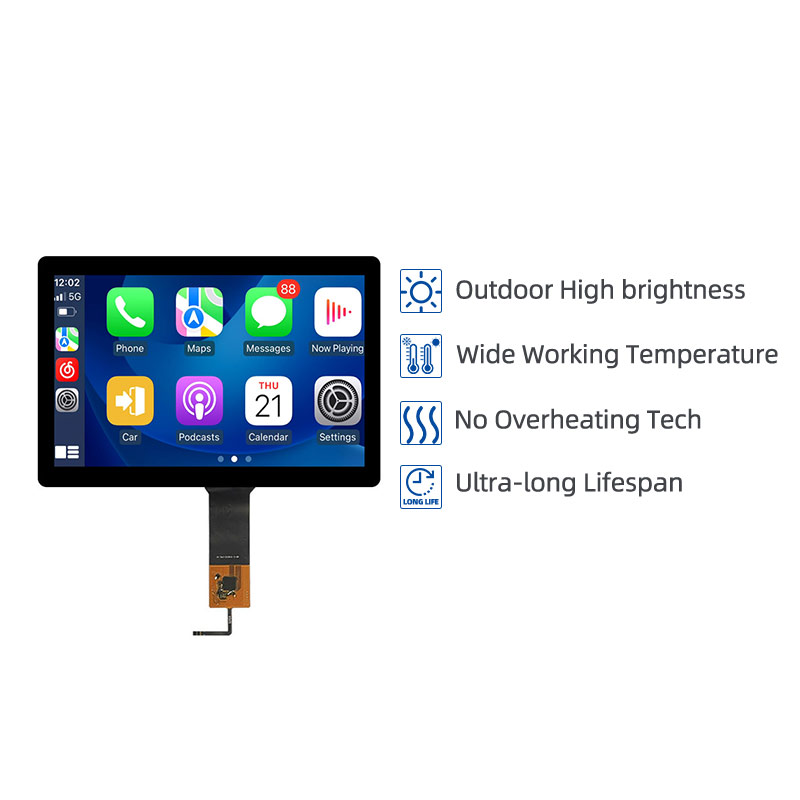

12.1 Inch High Brightness Display 750nits 1280x800 LVDS TFT LCD Display With Capacitive Touch

Part No.:ET121WX02-TT
Size:12.1″ inch
Resolution:1280x800
Panel Interface:LVDS
Display mode:Transmissive
Outline Dimension:293.66x198.66mm
Active Area:261.12x163.2mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:750(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

12.1 Inch High Brightness LCD Display Overview
12.1 Inch High Brightness Display 750nits 1280x800 LVDS TFT LCD Display With Capacitive Touch.

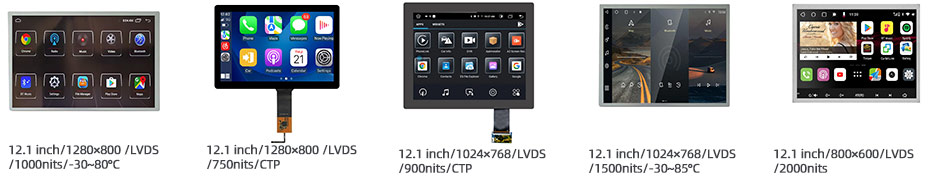

More 12.1 Inch High Brightness Display For Reference
ET121WX01-R (1280x800, LVDS, 1000nits, -30~80°C, 283x185.1mm)
ET121WX02-TT (1280x800, LVDS, 750nits, -20~70°C, 293.66x198.66mm, CTP)
ET121WX01-HT (1024x768, LVDS, 900nits, -20~70°C, 286.5x225mm, CTP)
ET121WX02-R (1024x768, LVDS, 1500nits, -30~85°C, 260.5x204mm)
ET121DH01-H (800x600, LVDS, 2000nits, -30~80°C, 260.5x204mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
