11.6 Inch High Brightness Display 900nits 1920x1080 eDP TFT LCD Display With Capacitive Touch

11.6 Inch High Brightness LCD Display Overview

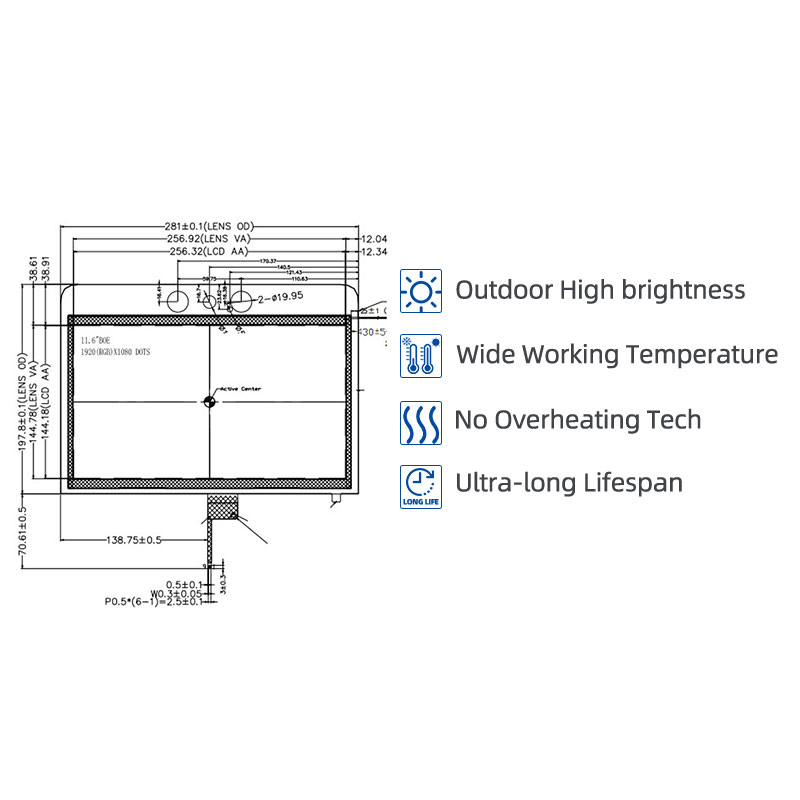

ET116FH02-TT is an 11.6-inch high-brightness TFT LCD display with a 1920 × 1080 resolution in transmissive mode. It supports an eDP interface and features capacitive touch functionality. The display delivers a typical brightness of 900 cd/m² with wide 85° viewing angles in all directions. It has an active area of 256.32 × 144.18 mm and an outline dimension of 267.02 × 163.72 mm, operating from −20 to 70 °C (storage −30 to 80 °C).

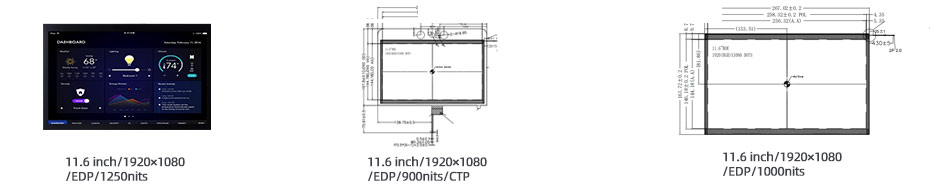

More 11.6 Inch High Brightness Display For Reference
ET116FH01-R (1920x1080, eDP, 1200nits, -20~70°C, 268x158mm)
ET116FH02-TT (1920x1080, eDP, 900nits, -20~70°C, 267.02x163.72mm, CTP)
ET116FH02-T (1920x1080, eDP, 1000nits, -20~70°C, 267.02x163.72mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
