11.6 Inch High Brightness Display 1200nits 1920x1080 eDP TFT LCD Display

11.6 Inch High Brightness LCD Display Overview

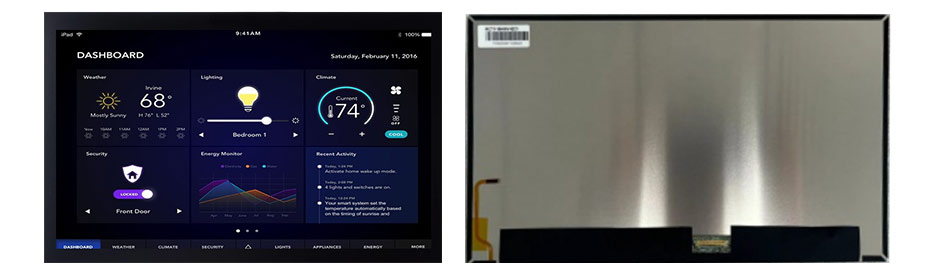

ET116FH01-R is an 11.6-inch high-brightness eDP TFT LCD display with a transmissive display mode. It supports a resolution of 1920 × 1080 (FHD) and delivers a typical brightness of 1200 cd/m², offering wide viewing angles of 85°/85°/85°/85° (L/R/U/D). The display features an active area of 256.32 × 144.18 mm and an outline dimension of 268 × 158 mm. It operates reliably over a temperature range of −20 °C to 70 °C and can be stored between −30 °C and 80 °C. This model does not include touch functionality.

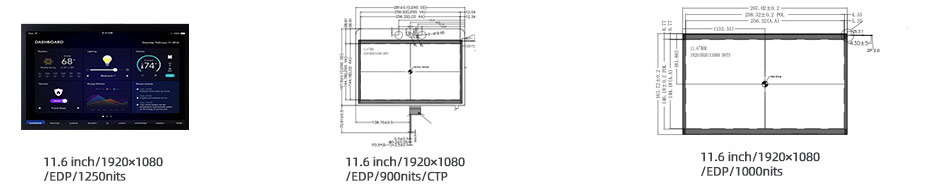

More 11.6 Inch High Brightness Display For Reference
ET116FH01-R (1920x1080, eDP, 1200nits, -20~70°C, 268x158mm)
ET116FH02-TT (1920x1080, eDP, 900nits, -20~70°C, 267.02x163.72mm, CTP)
ET116FH02-T (1920x1080, eDP, 1000nits, -20~70°C, 267.02x163.72mm)

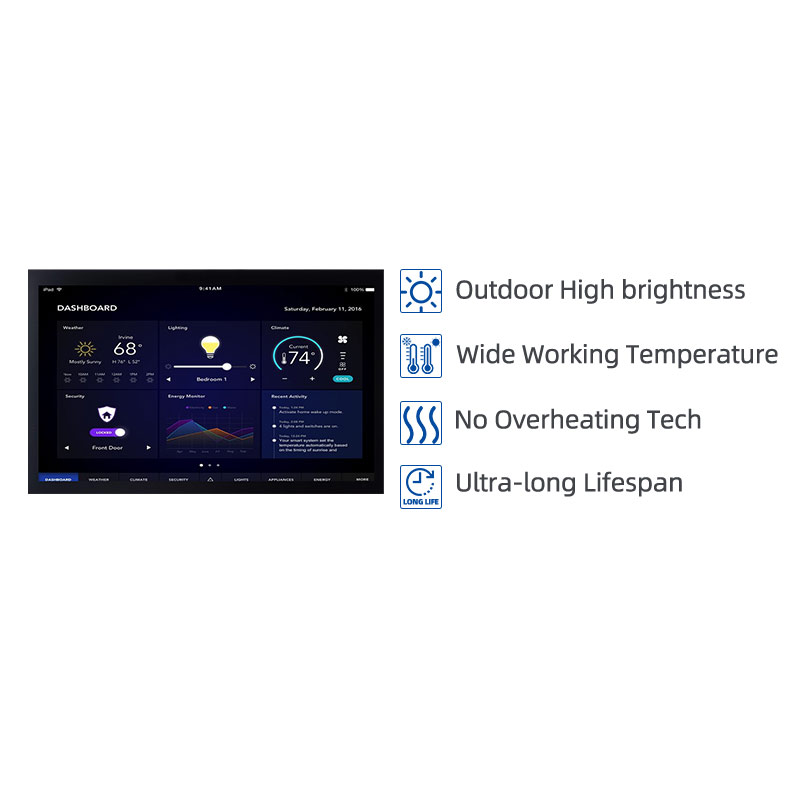

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
