11.3 Inch TFT LCD Display 888×408 Clockless Link High Brightness Display NL8840AC29-01 For Game Console Display

11.3 Inch TFT LCD Display 888×408 Clockless Link High Brightness Display NL8840AC29-01 For Game Console Display Video

11.3 Inch TFT LCD Display 888×408 Clockless Link High Brightness Display NL8840AC29-01 For Game Console Display Overview

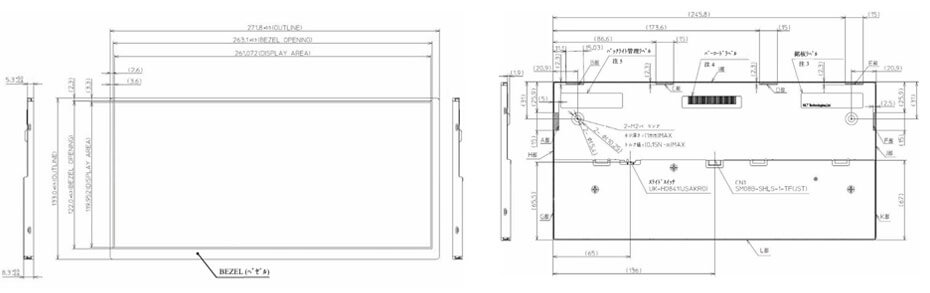

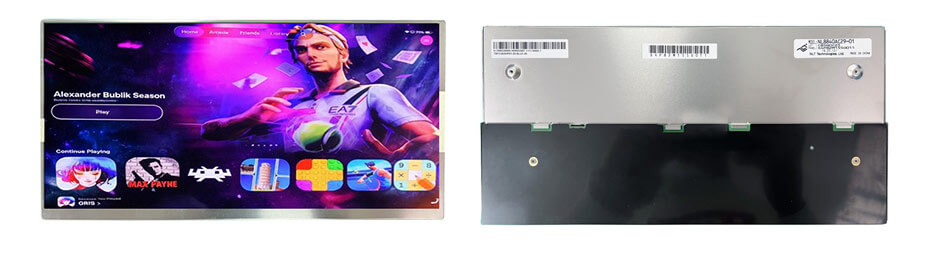

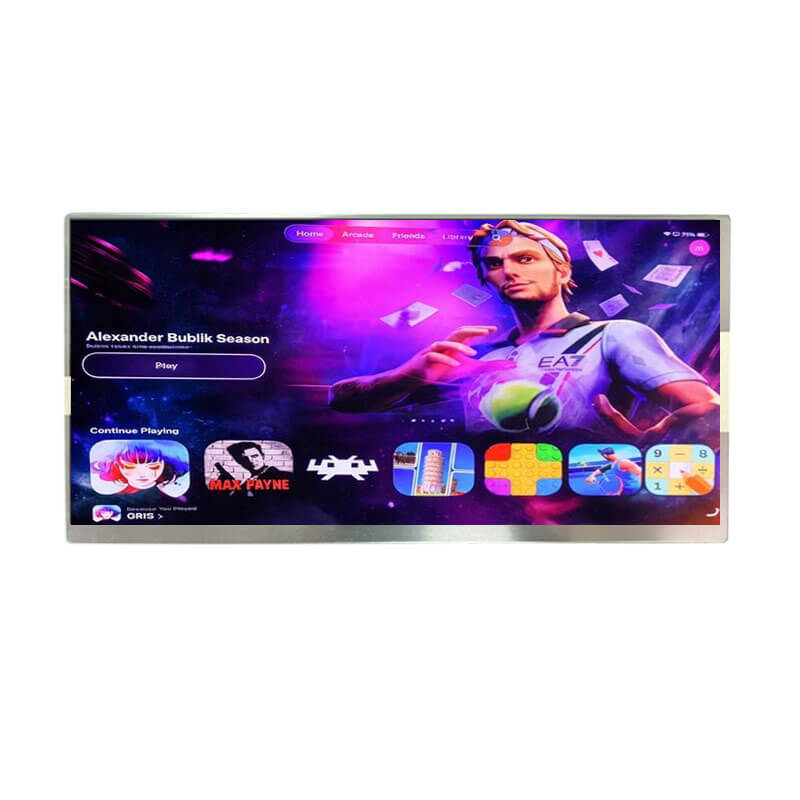

NL8840AC29-01 is a 11.3 inch diagonal a-Si TFT-LCD display screen with a built-in WLED backlight, With LED Driver, without touch screen. NL8840AC29-01 supports display 888(RGB)×408, whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 261.07(W)×119.95(H) mm, outline size of 271.8(W)×133(H)×8.8(D) mm, viewing area size of 263.1(W)×122.0(H) mm, with surface treament of Clear, Hard coating (3H), net weight of 335/370g (Typ./Max.). As a SFT, Normally Black, Transmissive LCM product, NL8840AC29-01 can provides 500 cd/m² display brightness 800:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/13 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. NL8840AC29-01 utilizes Clockless Link as it's signal inputting systerm, which connected by 8 pins Connector with power supply voltage of 10.8/16.5V (Min./Max.)(With Backlight). It's typical vertical frame rate (Fv) is 60Hz.

Key Features of Game Console Display

High Resolution
-Supports HD, FHD, QHD, or 4K visuals for sharp image quality.
Fast Refresh Rate
-60Hz, 120Hz, or higher for smoother gameplay and motion clarity.
Low Latency & Fast Response Time
-Reduces motion blur and input lag during fast-action gaming.
Wide Color Gamut
-Delivers vibrant and realistic colors.
High Brightness & Contrast Ratio
-Enhances visibility and image depth.
HDR Capability
-Improves highlights, shadows, and overall visual realism.
Wide Viewing Angle
-Maintains image quality from different viewing positions.
Touchscreen Support (Optional)
-Used in handheld or portable gaming consoles.
Power-Efficient Design
-Optimized for lower power consumption in portable devices.
Compact & Lightweight Structure
-Suitable for handheld gaming applications.
Durable Display Surface
-Scratch-resistant and reliable for long-term use.
Anti-Glare Technology
-Improves screen visibility under bright environments.
Multiple Interface Compatibility
-Supports HDMI, MIPI, LVDS, eDP, and RGB interfaces.
Customizable Sizes
-Available in different display sizes for various gaming devices.

Applications For Game Console Display

Handheld Gaming Consoles
-Portable gaming devices with compact high-resolution displays.
Home Video Game Consoles
-Connected to TVs or integrated gaming systems for immersive gameplay.
Retro Gaming Devices
-Classic arcade-style and nostalgic gaming consoles.
Portable Emulator Consoles
-Multi-platform gaming systems for retro and modern games.
Arcade Gaming Machines
-Commercial gaming cabinets and entertainment systems.
Cloud Gaming Devices
-Streaming-based gaming terminals and smart gaming screens.
VR & AR Gaming Equipment
-High-refresh displays for virtual and augmented reality gaming.
Gaming Tablets
-Touch-enabled portable gaming and multimedia devices.
Educational Gaming Systems
-Interactive learning consoles for children and students.
E-sports & Competitive Gaming Devices
-High-performance displays designed for fast response and low latency.
Car Entertainment Gaming Systems
-Rear-seat gaming and infotainment displays in vehicles.
Smart TV Gaming Platforms
-Integrated gaming interfaces on smart televisions.
DIY Gaming Projects
-Custom-built gaming consoles and Raspberry Pi gaming systems.

Youritech Game Console Display Production and Manufacturing
