10.4 Inch Wide Temperature LCD Display Overview

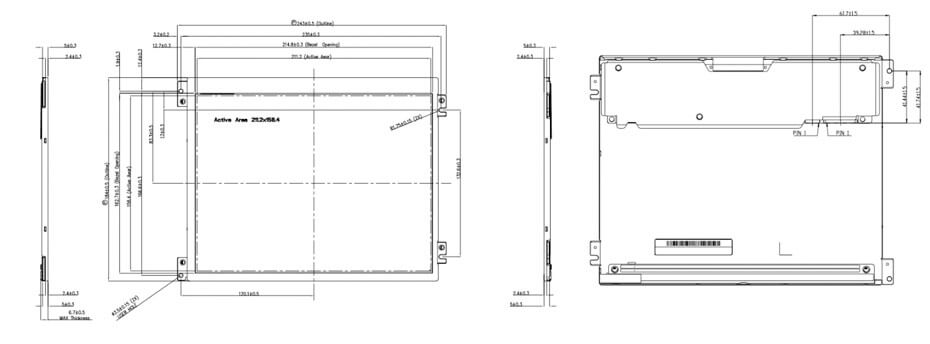

The ET104DH01-PV is a 10.4-inch wide-temperature TFT LCD display module. It features a resolution of 800x600, utilizes an LVDS interface, and provides a brightness of 400 nits. The module supports a wide operating temperature range of -30°C to 85°C, with the same range for storage. Its active display area measures 211.2x158.4 mm, housed within an outline dimension of 243x184 mm. The display offers symmetrical viewing angles and does not incorporate touch functionality.

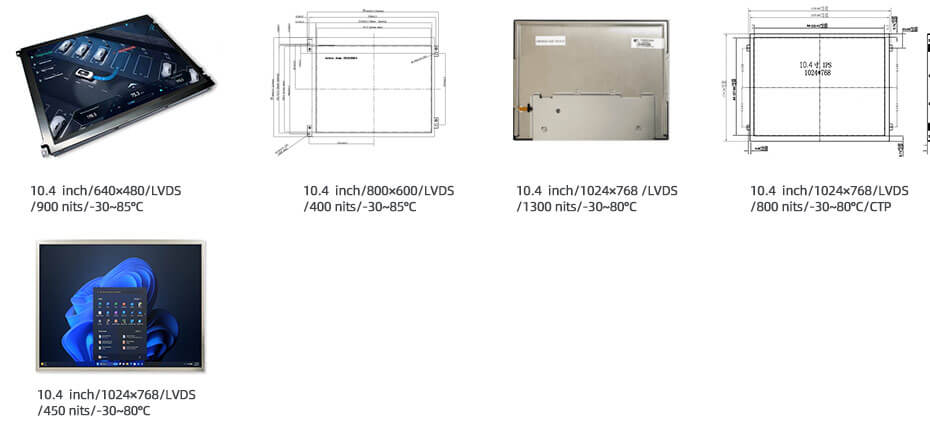

More 10.4 Inch Wide Temperature Displays For Reference
ET104VG01-ST (LCD, 640×480, LVDS, IPS, 900nits, -30~85°C, 241×180.2mm)
ET104DH01-PV (LCD, 800×600, LVDS, IPS, 400nits, -30~85°C, 243×184mm)
ET104WX01-P (LCD, 1024×768, LVDS, IPS, 1300nits, -30~80°C, 230×180.2mm)
ET104WX01-KNT (LCD, 1024×768, LVDS, IPS, 800nits, -30~80°C, 225.8×174.3mm, CTP)
ET104WX02-KN (LCD, 1024×768, LVDS, IPS, 450nits, -30~80°C, 220.53×168.02mm)
Wide Temperature Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
