10.3 Inch Wide Temperature LCD Display Overview

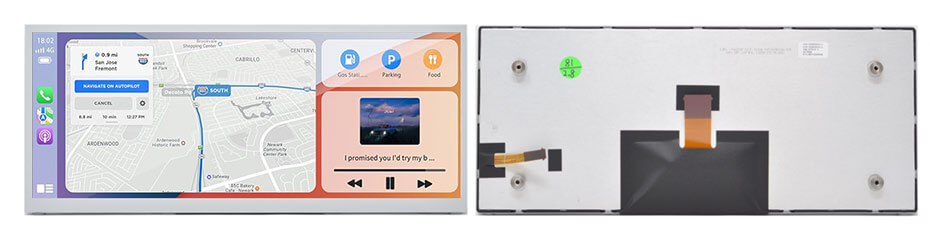

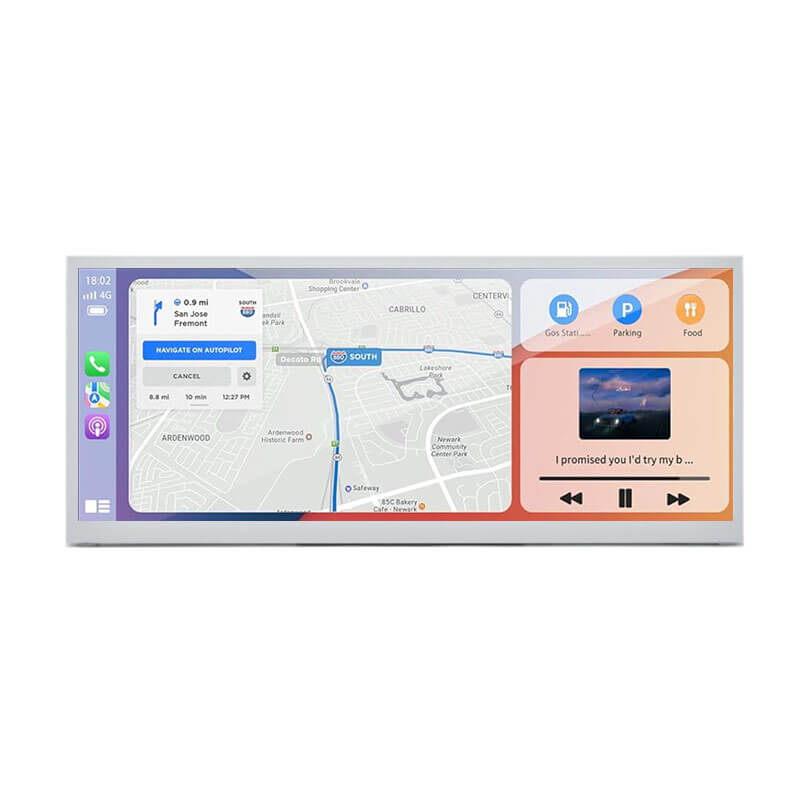

The ET103BA01-HL is a 10.3-inch wide-temperature, high-brightness TFT LCD display module. It features a resolution of 1280x480, utilizes an LVDS interface, and delivers a brightness of 800 nits. The module supports a wide operating temperature range of -40°C to 85°C, with a storage range of -40°C to 90°C. Its active display area measures 243.84x91.44 mm, housed within an outline dimension of 258.6x109.8 mm. The display provides symmetrical and wide viewing angles of 85/85/85/85 (L/R/U/D) and does not incorporate touch functionality.

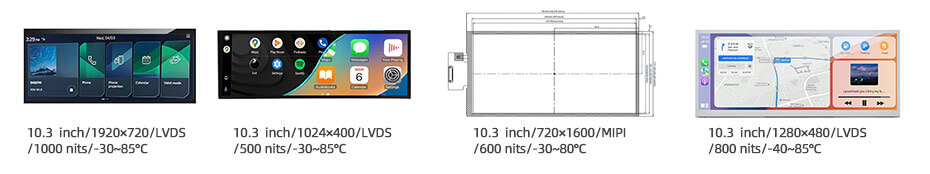

More 10.3 Inch Wide Temperature Displays For Reference
ET103BA01-TS (LCD, 1920×720, LVDS, IPS, 1000nits, -30~85°C, 253.15×106.01mm)
ET103BA01-YH (LCD, 1024×400, LVDS, IPS, 500nits, -30~85°C, 270×115mm)
ET103WX01-F (LCD, 720×1600, MIPI, IPS, 600nits, -30~80°C, 115.1×250.8mm)
ET103BA01-HL (LCD, 1280×480, LVDS, IPS, 800nits, -40~85°C, 258.6×109.8mm)
Wide Temperature Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
