10.2"-17.3" LCD Display (10.3")

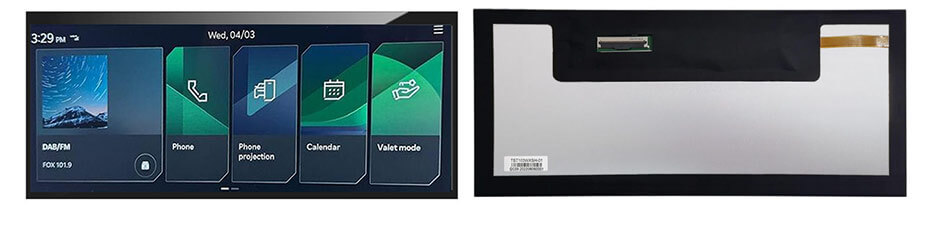

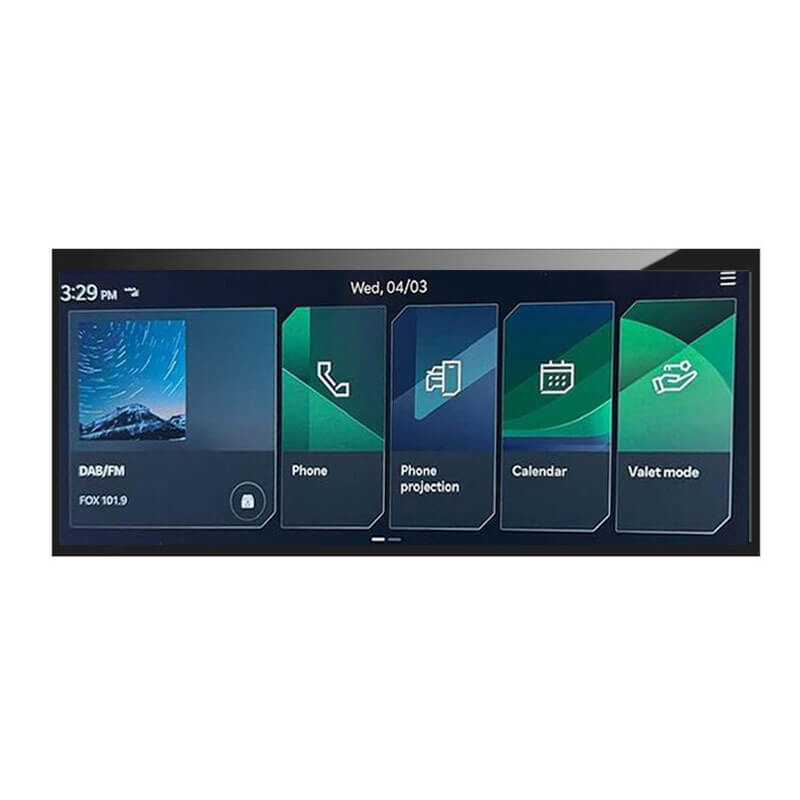

10.3 Inch Wide Temperature LCD Display 1920×720 LVDS -30°C to 85°C High Brightness 1000nits TFT LCD Display

  • Part No.:ET103BA01-TS
  • Size:10.3″ inch
  • Resolution:1920x720
  • Panel Interface:LVDS
  • Display mode:Transmissive
  • Outline Dimension:253.15x106.01mm
  • Active Area:243.648x91.368mm
  • Viewing Angle L/R/U/D:80/80/80/80
  • Brightness(cd/m2):1000nits
  • Operation / Storage Temp:-30~85°C / -40~90°C
  • Touch:no


10.3 Inch Wide Temperature LCD Display Overview
10.3 Inch Wide Temperature LCD Display 1920×720 LVDS -30°C to 85°C High Brightness 1000nits TFT LCD Display.


More 10.3 Inch Wide Temperature Displays For Reference
ET103BA01-TS (LCD
, 1920×720, LVDS, IPS, 1000nits, -30~85°C, 253.15×106.01mm)
ET103BA01-YH (LCD, 1024×400, LVDS, IPS, 500nits, -30~85°C, 270×115mm)
ET103WX01-F (LCD, 720×1600, MIPI, IPS, 600nits, -30~80°C, 115.1×250.8mm)
ET103BA01-HL (LCD, 1280×480, LVDS, IPS, 800nits, -40~85°C, 258.6×109.8mm)


Wide Temperature Displays Technology


YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options


Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
