10.2"-17.3" LCD Display (10.2“)

10.2 Inch Wide Temperature LCD Display 1920×720 LVDS -30°C to 85°C High Brightness 500nits TFT LCD Display

  • Part No.:ET103IPS-27A
  • Size:10.2″ inch
  • Resolution:1920x720
  • Panel Interface:LVDS
  • Display mode:Transmissive
  • Outline Dimension:265.2x109.8mm
  • Active Area:243.65x91.37mm
  • Viewing Angle L/R/U/D:80/80/80/80
  • Brightness(cd/m2):500nits
  • Operation / Storage Temp:-30~85°C / -40~90°C
  • Touch:no


10.2 Inch Wide Temperature LCD Display Overview
10.2 Inch Wide Temperature LCD Display 1920×720 LVDS -30°C to 85°C High Brightness 500nits TFT LCD Display.


More 10.2 Inch Wide Temperature Displays For Reference

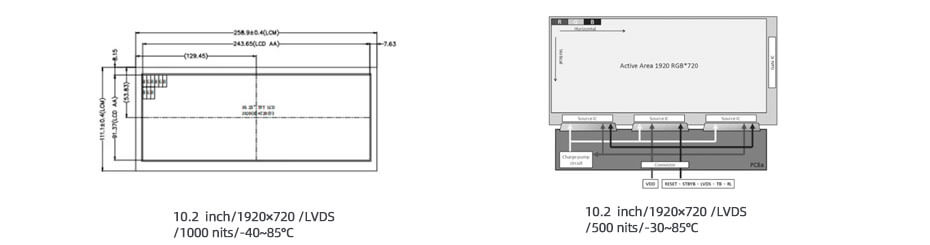

ET103BA02-T (LCD
, 1920×720, LVDS, IPS, 1000nits, -40~85°C, 258.9×111.1mm)
ET103IPS-27A (LCD, 1920×720, LVDS, IPS, 500nits, -30~85°C, 265.2×109.8mm)


Wide Temperature Displays Technology


YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options


Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
