10.2 Inch High Brightness LCD Display Overview

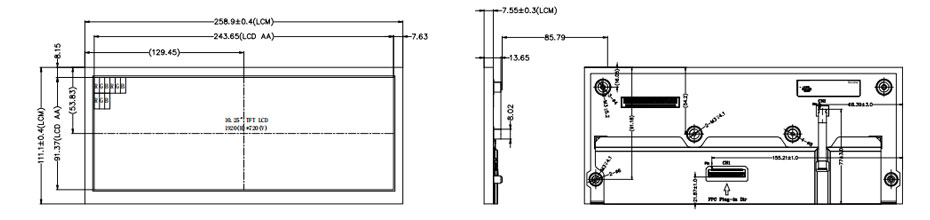

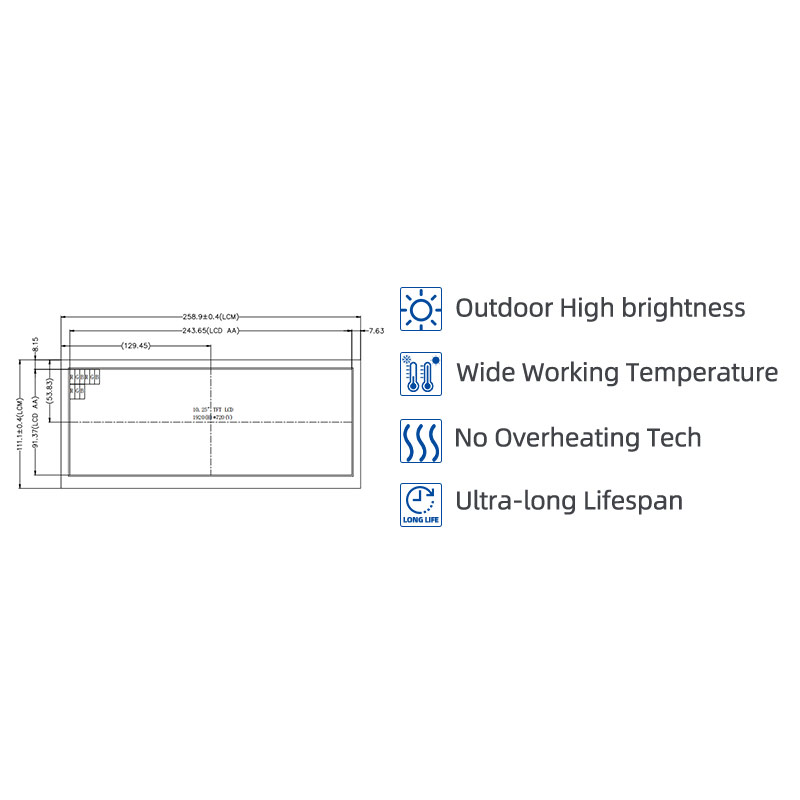

ET103BA02-T is a 10.25-inch high-brightness IPS TFT LCD display with a 1920 × 720 resolution in transmissive mode. It supports an LVDS interface and delivers a typical brightness of 1000 cd/m² with wide 85° viewing angles in all directions. The display features an active area of 243.65 × 91.37 mm and an outline dimension of 258.9 × 111.1 mm, designed for wide-temperature operation from −40 to 85 °C (storage −40 to 90 °C) and does not include touch functionality.

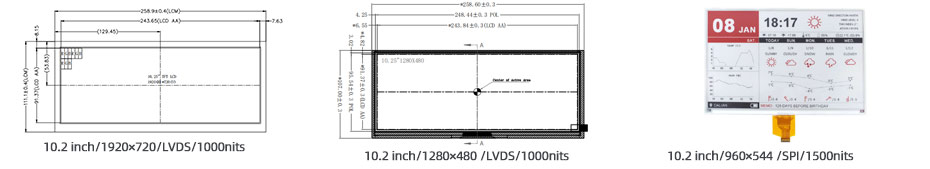

More 10.2 Inch High Brightness Display For Reference
ET103BA02-T (1920x720, LVDS, 1000nits, -40~85°C, 258.9x111.1mm)
ET103BA01-H (1280x480, LVDS, 1000nits, -40~85°C, 258.6x107mm)
ET102EP01 (960x544, SPI, 1500nits, 0~40°C, 224x157mm)
ET105BA01-ZT (1920x720, LVDS, 850nits, -20~70°C, 323.4x129.37mm)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
