10.2"-17.3" LCD Display (10.2“)

10.25 Inch High Brightness Display 1000nits IPS 1280x480 LVDS Wide Temperature TFT LCD Display

Part No.:ET103BA01-H
Size:10.25″ inch
Resolution:1280x480
Panel Interface:LVDS
Display mode:Transmissive

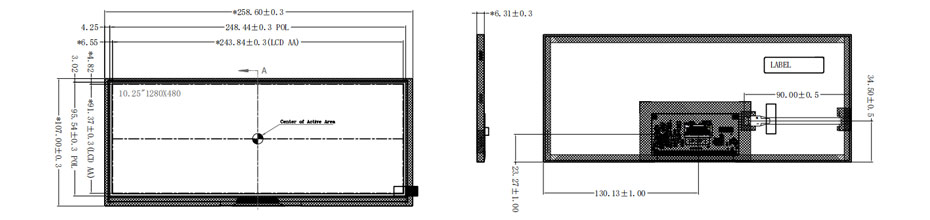

Outline Dimension:258.6x107mm
Active Area:243.8x91.4mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:1000(Typ.)
Operation / Storage Temp:-40~85°C / -40~95°C
Touch:no

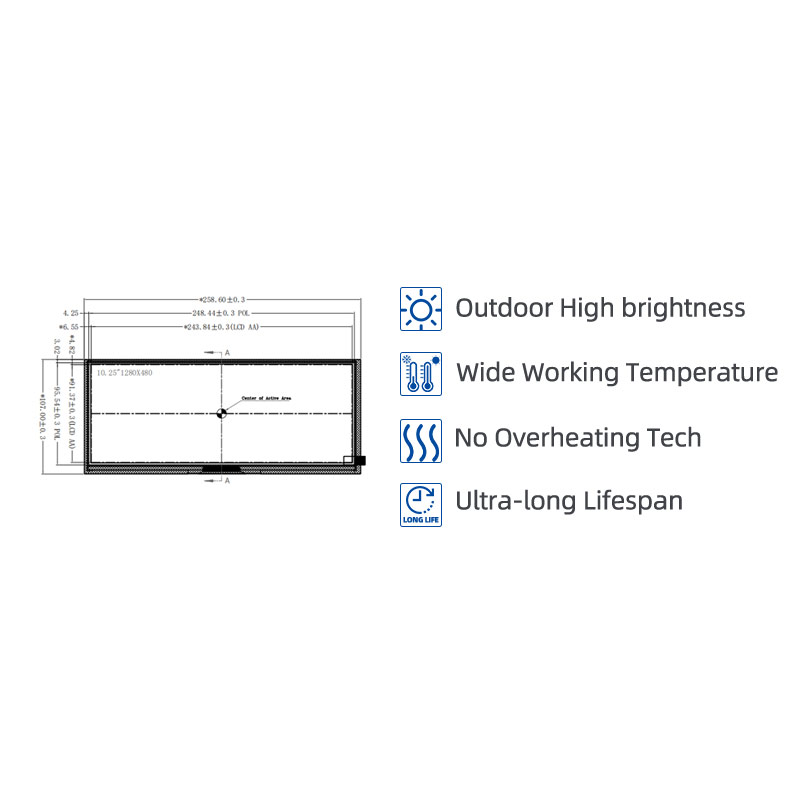

10.25 Inch High Brightness LCD Display Overview
10.25 Inch High Brightness Display 1000nits IPS 1280x480 LVDS Wide Temperature TFT LCD Display.

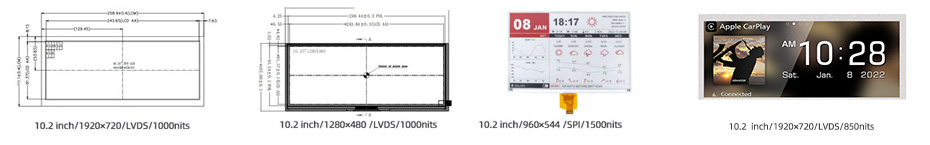

More 10.2 Inch High Brightness Display For Reference
ET103BA02-T (1920x720, LVDS, 1000nits, -40~85°C, 258.9x111.1mm)
ET103BA01-H (1280x480, LVDS, 1000nits, -40~85°C, 258.6x107mm)
ET102EP01 (960x544, SPI, 1500nits, 0~40°C, 224x157mm)
ET105BA01-ZT (1920x720, LVDS, 850nits, -20~70°C, 323.4x129.37mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
