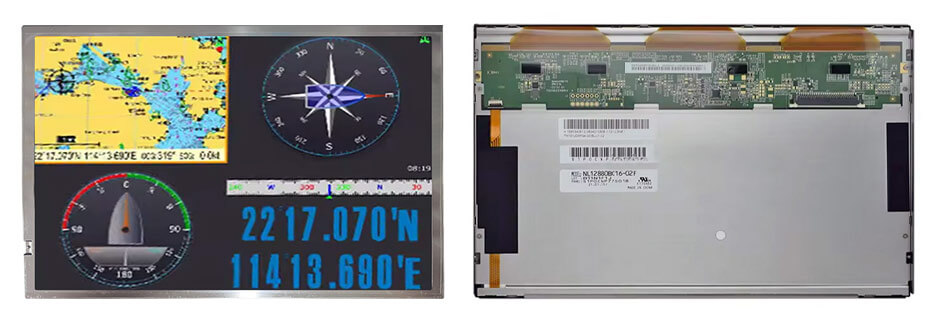

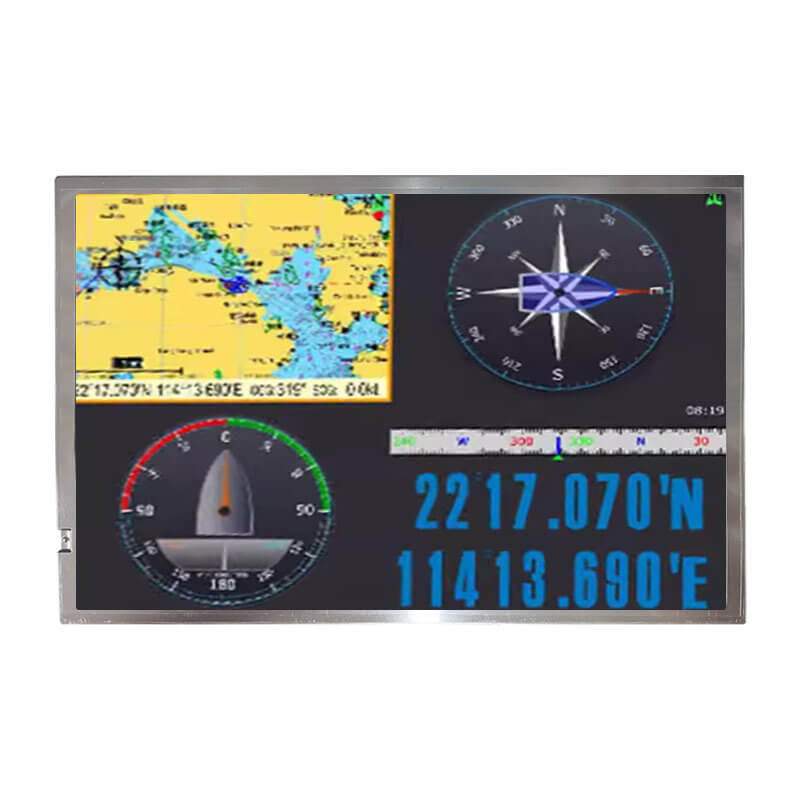

NL12880BC16-02F supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 235.4(W)×153.8(H)×12.6(D) mm, viewing area size of 220.0(W)×138.6(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 400/450g (Typ./Max.). As a UA-SFT, Normally Black, Transmissive LCM product, NL12880BC16-02F can provides 1000 cd/m² display brightness 800:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 13/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, external backlight driver is additionally needed. NL12880BC16-02F utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
More 10.1 Inch Marine Display For Reference
TX26D202VM0BAA (1920×1200, LVDS, 800nits, -30~80°C, 232.1×153.2mm)
C101UAN01.0 (1920×1200, LVDS, 1400nits, -30~85°C, 236.96×163mm)
ET101WU01-R (1920×1200, LVDS, 2000nits, -30~80°C, 227.49×148.89mm)
ET101WU15-TT (1920×1200, LVDS, 1000nits, -20~70°C, 229.1×148.9mm)
GV101WUM-N40 (1920×1200, eDP, 1000nits, -20~70°C, 228.2×149mm)
ET101FH01-R (1920×1080, LVDS, 1000nits, -20~70°C, 229.95×135.81mm)
DJ101IA-07A (1280×720, LVDS, 750nits, -30~85°C, 238.6×148mm)
AV101HDM-N11 (1280×720, LVDS, 700nits, -40~85°C, 233.9×141.4mm)
TM101JDHG32-00 (1280×800, LVDS, 1000nits, -20~70°C, 229.8×149mm)
TX26D207VM0AAA (1280×800, LVDS, 1000nits, -40~85°C, 231×153.5mm)
ET101WX08-T (1280×800, LVDS, 1000nits, -20~70°C, 229.1×148.9mm)
G101ICE-LH2 (1280×800, LVDS, 1200nits, -30~80°C, 230.7×152.55mm)
NL12880BC16-02F (1280×800, LVDS, 1000nits, -30~80°C, 235.4×153.8mm)
ET101WS07-TT (800×1280, MIPI, 750nits, -20~70°C, 166.5×249.7mm)
ET101WS06-TT (1024×600, TTL, 700nits, -20~70°C, 252×150mm)
High Visibility & Optical Performance:
-Optical Bonding, reduce reflections and prevent internal fogging
-High Brightness, ranges from 500 to over 3000 cd/m² for direct sunlight readability
-Wide Dimming Range, adjust down to as low as 0.05 cd/m² for safe night operation on the bridge
Corrosion & Environmental Protection:
-Typically IP65 (dust-tight and protected against water jets) or IP67 (temporarily submersible)
-Salt Fog Resistance, built to resist corrosion from salt-laden air
Night Vision Compatibility (NVIS):
-NVIS Mode, LED backlighting compatible with MIL-STD-3009, switching to specific low-intensity green or red light
-Ultra-Low Luminance, dim to extremely low levels (0.05 cd/m²) to preserve natural night vision
Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance
Rugged & Reliable Design:
-Shock & Vibration Resistance, built to withstand constant engine vibration and wave impacts (MIL-STD-810)
-Wide Temperature Range: Operates in extreme cold (-40°C or lower) to intense heat (85°C+)
Navigation & Chartplotting
-ECDIS (Electronic Chart Display and Information System)
-Radar display
-Chartplotters
-Route monitoring and planning
Integrated Bridge Systems (IBS)
-Centralized multi-function workstations combining radar
-ECDIS
-Conning information
-Alarm management
-Engine monitoring
Fishfinding & Sonar
-Commercial fishing
-Recreational fishfinding
-Underwater structure and bottom mapping
Mission & Combat Systems (Naval)
-Combat Management Systems (CMS)
-Tactical moving maps
-Sensor (radar/EO/IR) integration
-AI-powered target tracking
Performance Monitoring (Racing/High-End)
-True wind speed/direction (Boat speed, heel angle, polar performance, start-line timing)
Entertainment & Lifestyle
-Satellite TV, DVD/multimedia, audio distribution, onboard ambiance control
Security & Surveillance
-CCTV camera monitoring (engine room, deck, dock)
-Man-overboard (MOB) systems
-Remote vessel monitoring via satellite/web
Integrated Vessel Control
-Lighting (CZone), HVAC, tank monitoring, power management, engine diagnostics and control
Corrosion & Environmental Protection:
-Typically IP65 (dust-tight and protected against water jets) or IP67 (temporarily submersible)
-Salt Fog Resistance, built to resist corrosion from salt-laden air
Night Vision Compatibility (NVIS):
-NVIS Mode, LED backlighting compatible with MIL-STD-3009, switching to specific low-intensity green or red light
-Ultra-Low Luminance, dim to extremely low levels (0.05 cd/m²) to preserve natural night vision
Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance
Rugged & Reliable Design:
-Shock & Vibration Resistance, built to withstand constant engine vibration and wave impacts (MIL-STD-810)
-Wide Temperature Range: Operates in extreme cold (-40°C or lower) to intense heat (85°C+)
