10.1 Inch TFT LCD Display 1280×800 LVDS High Brightness Wide Temperature Display For Aerospace Display

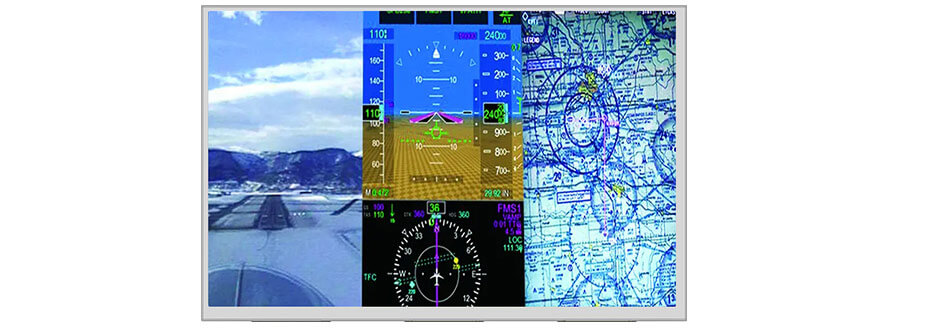

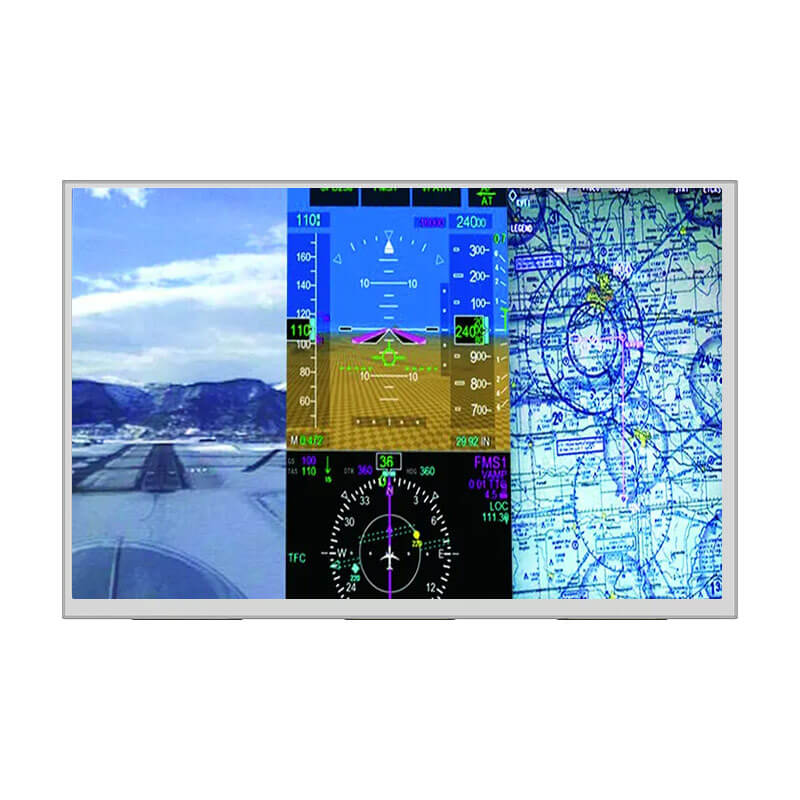

10.1 Inch Aerospace Display Overview
P1010WXF1MA01 is a 10.1 inch diagonal a-Si TFT-LCD display screen with a built-in WLED backlight, With LED Driver, without touch screen. P1010WXF1MA01 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 229.8(W)×149(H)×9.48(D) mm, viewing area size of 219.96(W)×138.6(H) mm, with surface treament of Hard coating, net weight of 275g (Typ.). As a SFT, Normally Black, Transmissive LCM product, P1010WXF1MA01 can provides 1000 cd/m² display brightness 1200:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 6S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. P1010WXF1MA01 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 10.1 Inch Aerospace Display For Reference
DJ101IA-07A (1280×720, LVDS, 750nits, -30~85°C, 238.6×148mm)
LCD304-101CTl1ARNTTR.3 (1280×720, LVDS, 2000nits, -30~85°C, 261.16×173.66mm)
TX26D207VM0AAA (1280×800, LVDS, 1000nits, -40~85°C, 231×153.5mm)
TX26D207VM0AVA (1280×800, LVDS, 880nits, -30~80°C, 265×205.56mm)
P1010WXF1MA01 (1280×800, LVDS, 1000nits, -30~80°C, 229.8×149mm)
C101UAN01.0 (1920×1200, LVDS, 1400nits, -30~85°C, 236.96×163mm)
ET101WU01-R (1920×1200, LVDS, 2000nits, -30~80°C, 227.49×148.89mm)
COG-VLSZT115-01 (1920×1200, LVDS, 1100nits, -40~85°C, 237.69×142.7mm)

Key Features of Aerospace, Cockpit and Flight Displays

Advanced Super View Display Technology:
-Superior brightness and contrast
-Wide viewing angles, high resolution, anti-reflective/anti-glare coatings
-High resolution for clear visibility in all conditions

Durability and Longevity:
-Resistant to shock, vibration, and moisture
-Built to meet IP67, Operates in extreme temperatures (e.g., -55°C to +85°C)

Custom Integration:
-Tailored solutions for specific application needs
-Custom sizes, shapes, and interface options
-Seamless integration with existing systems

Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance

Regulatory Compliance:
-Adherence to stringent aerospace and automotive standards
-Certifications ensuring safety and reliability

High Reliability:
-All Industrial-grade components for consistent performance
-Rigorous testing to meet industry demands

Applications For Aerospace Displays

Commercial Aviation
-Primary Flight Displays (PFD)
-Navigation Displays
-Engine Indication and Crew Alerting System (EICAS)
-Interactive touchscreens for flight management and Electronic Flight Bag (EFB) functions

Military & Defense
-Mission computers
-Tactical moving maps
-Sensor feeds (radar/FLIR)
-Flight data in fighters
-Helicopters
-Transport aircraft

Business & General Aviation
-"Glass cockpit" retrofits that replace old CRT screens and analog gauges, moving maps
-Terrain awareness systems (SVS)
-Flight management systems
