1.8 Inch Micro OLED Display 1920×1080 MIPI High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Overview

ET018FHH01-B1916A is a 1.8 inch diagonal Si-OLED (Micro OLED) display screen product with self-emissive technology. ET018FHH01-B1916A supports a 1920×1080 (FHD) resolution display with an aspect ratio of 16:9 (W:H), delivering high-definition image quality and excellent visual performance for compact optical display applications. It adopts a MIPI interface and is equipped with a driver board, providing convenient integration for advanced display systems. It features an active area of 39.74(W)×22.36(H) mm, with an outline size of 43.14(W)×29.93(H)×1.59(D) mm. ET018FHH01-B1916A provides 500 cd/m² display brightness, offering clear and stable image performance. With an operating temperature range of -20~70°C and storage temperature range of -30~80°C, this Micro OLED display is an ideal solution for EVF (Electronic Viewfinder), AR devices, red dot sight systems, and other precision optical imaging applications.

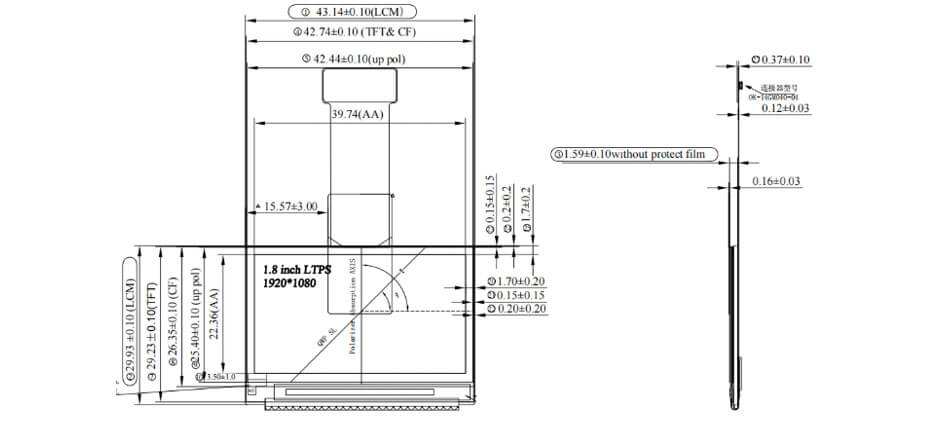

1.8 Inch Micro OLED Display 1920×1080 MIPI High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Drawing

SY103WAM15 1.03 Inch Micro OLED Display Solution For Reference

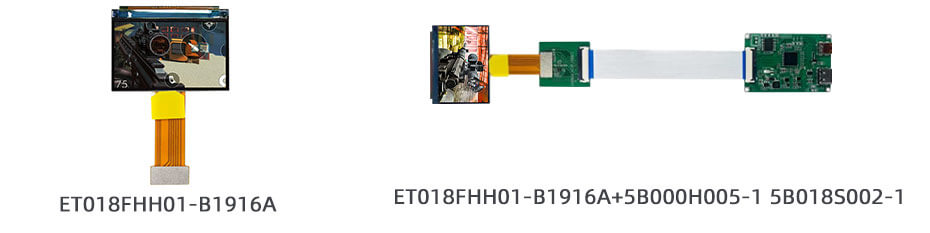

ET018FHH01-B1916A
ET018FHH01-B1916A+5B000H005-1 5B018S002-1

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
